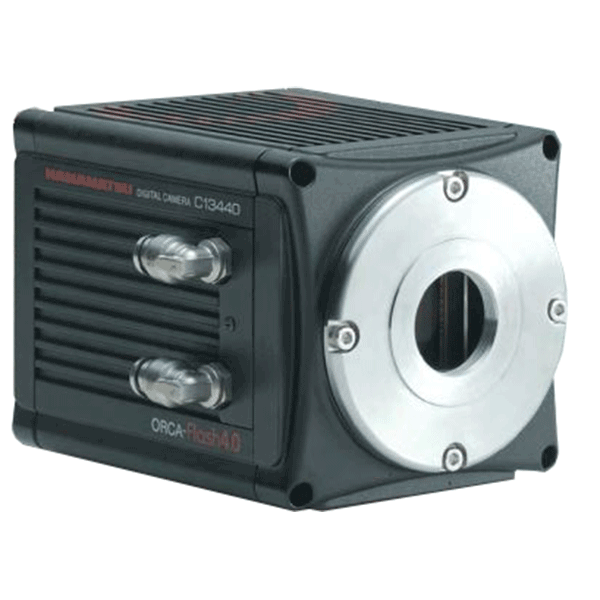

Hamamatsu ORCA-Flash4.0 V3 Digital CMOS camera C13440-20CU
We’ve advanced our camera technology, so you can advance your science
Building on our extensive experience with high performance scientific cameras and advanced imaging applications, Hamamatsu introduces the new ORCA-Flash4.0 V3. This one camera expertly handles applications ranging from the acquisition of beautiful scientific images to experiments that demand detection, quantification and speed. With on-board FPGA processing enabling intelligent data reduction, highly refined in-camera, pixel-level calibrations, increased USB3.0 frame rates, purposeful and innovative triggering capabilities, patented lightsheet read out modes and individual camera noise characterization the ORCA-Flash4.0 V3 is the precision instrument for imaging.
Features
- Calibrated for Quantitative Accuracy
- Flexibility for Customized Data Control
- Patented Tools for Advanced Imaging: Lightsheet Readout Mode
- Focus on the Relevant Data
- Powerful Triggering for Synchronization
PC requirements
With the introduction of the ORCA-Flash4.0, users are now able to stream 4 megapixel images to their computers 100 frames per second. The computer requirements for this high data rate can be met by using the guidelines listed this PC Recommendations for ORCA-Flash4.0.
Specifications
| Type number | C13440-20CU |
|---|---|
| Quantum efficency | 82 % (peak QE: @560 nm) |
| Imaging device | sCMOS |
| Effective no. of pixels | 2048 (H)×2048 (V) |
| Cell size | 6.5 μm×6.5 μm |
| Effective area | 13.312 mm×13.312 mm |
| Full well capacity | 30 000 electrons (typ.) * |
| Readout speed | 100 frames/s (Full resolution, standard scan, Camera Link) * 40 frames/s (Full resolution, standard scan, USB 3.0, 16 bit) * 53 frames/s (Full resolution, standard scan, USB 3.0, 12 bit) * 80 frames/s (Full resolution, standard scan, USB 3.0, 8 bit) * |
| Readout noise | Standard scan (at 100 frames/s, typ.):1.6 electrons rms (1.0 electrons median) Slow scan (at 30 frames/s, typ.): 1.4 electrons rms (0.8 electrons median) |
| Cooling method | Peltier cooling |
| Cooling temperature | Forced air (Ambient at +20 ℃): -10 ℃ Water (+20 ℃): -10 ℃ Water (+15 ℃): -30 ℃ |
| Dark current | 0.06 electrons/pixel/s (Air Cooled to -10° C) (typ.) 0.06 electrons/pixel/s (Water Cooled to -10° C) (typ.) 0.006 electrons/pixel/s (Water Cooled to -30° C) (typ.) |
| Dynamic range | 37 000:1 (typ.) |
| Interface | Camera Link / USB 3.0 |
| A/D converter | 16 bit / 12 bit / 8 bit |
| Lens mount | C-mount |
Spectral response
Dimensions
