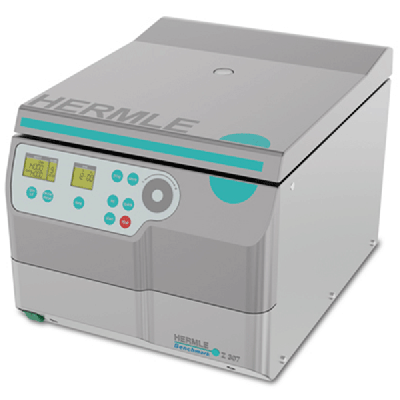

Hermle Centrifuge Z 307

The small universal laboratory centrifuge offers a wide range of applications, which covers clinical laboratory requirements,research, as well as industrial laboratory use.

The Z 307 offers many accessories, including rotors for microtitreplates and high-speed fixed angle rotors for reaction vessels or centrifuge tubes up to 50 ml. Additionally, swing out rotors, which hold a volume of up to 4 x 200 ml can be used for tissue culture tubes and also for all common blood tubes.

This wide range of accessories makes the Z 307 laboratory centrifuge indespensable in research laboratories and small clinical laboratories.

Features and Functions

•  Brushless induction drive
•  Microprocessor control
•  Active imbalance detection and cut-off
•  One-hand closing
•  Motor driven lid lock
•  Automatic rotor identification system with over speed protection
•  Audible signal at the end of each run
•  Emergency lid lock
•  Stainless steel chamber
•  Air cooling
•  Autoclavable rotors

Display functions
•  Diagnostic program
•  Program memory for 99 programs
•  Quick-key for short runs
•  10 acceleration and 10 deceleration rates, possibility of unbreaked deceleration
•  Permanent indication of preset and actual values
•  Pre-selection of speed or RCF in steps of 50/10-er
•  Pre-selection of running time from 10 sec to 99h 59min or continious
•  Simple one handed opertaion

Specifications

• max. Speed: 14,000 rpm
• max. RCF: 18,624 xg
• max. Volume: 4 x 200 ml
• Speed range: 200 - 14,000 rpm
• Running time: 59 min 50 s / 10 s increments, 99 h 59 min / 1 min increments
• Dimensions (WxHxD): 35 cm x 33 cm x 47 cm
• Weight: 30 kg
