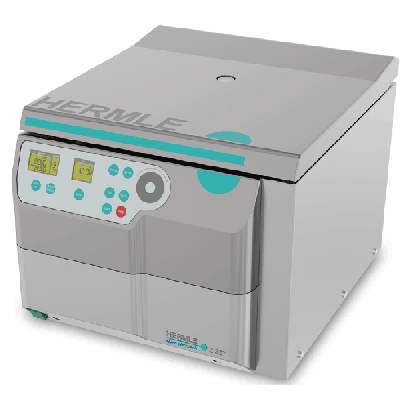

Hermle Z327 Universal Centrifuge

Both the table top centrifuge Z 327 and the refrigerated table top centrifuge Z 327 K offer a wide assortment of rotor options, making them ideal for a wide variety of research applications. Rotor exchange between swing out, micro, or high volume angled rotors is very simple and can take place in a matter of seconds.

The Z 327 K includes the refrigeration system on the back side of the unit, optimized for the lab bench at only 40 cm wide.

Features and Functions

• Brushless induction drive
• Microprocessor control
• Motor driven lid lock
• Automatic rotor identification system with over speed protection
• Audible signal at the end of each run
• Emergency lid lock
• Stainless steel chamber
• Air cooling
• Autoclavable rotors

Display functions
• Diagnostic program
• Program memory for 99 programs
• Quick-key for short runs
• 10 acceleration and 10 deceleration rates, possibility of unbreaked deceleration
• Permanent indication of preset and actual values
• Pre-selection of speed or RCF in steps of 50/10-er
• Pre-selection of running time from 10 sec to 99h 59min or continious
• Simple one handed opertaion

Specifications

• max. Speed : 18,000 rpm
• max. RCF: 23,542 xg
• max. Volume: 4 x 200 ml
• Speed range: 200 - 18,000 rpm
• Running time: 59 min 50 s / 10 s increments, 99 h 59 min / 1 min increments
• Dimensions (WxHxD): 40 cm x 36 cm x 48 cm
• Weight: 43 kg
