Home » Teledyne Lumenera INFINITY 2-1R Monochrome Microscope Camera
INFINITY 2-1R Monochrome Microscope Camera - microscopemarketplace
INFINITY 2-1R Monochrome Microscope Camera - microscopemarketplace
Lumenera

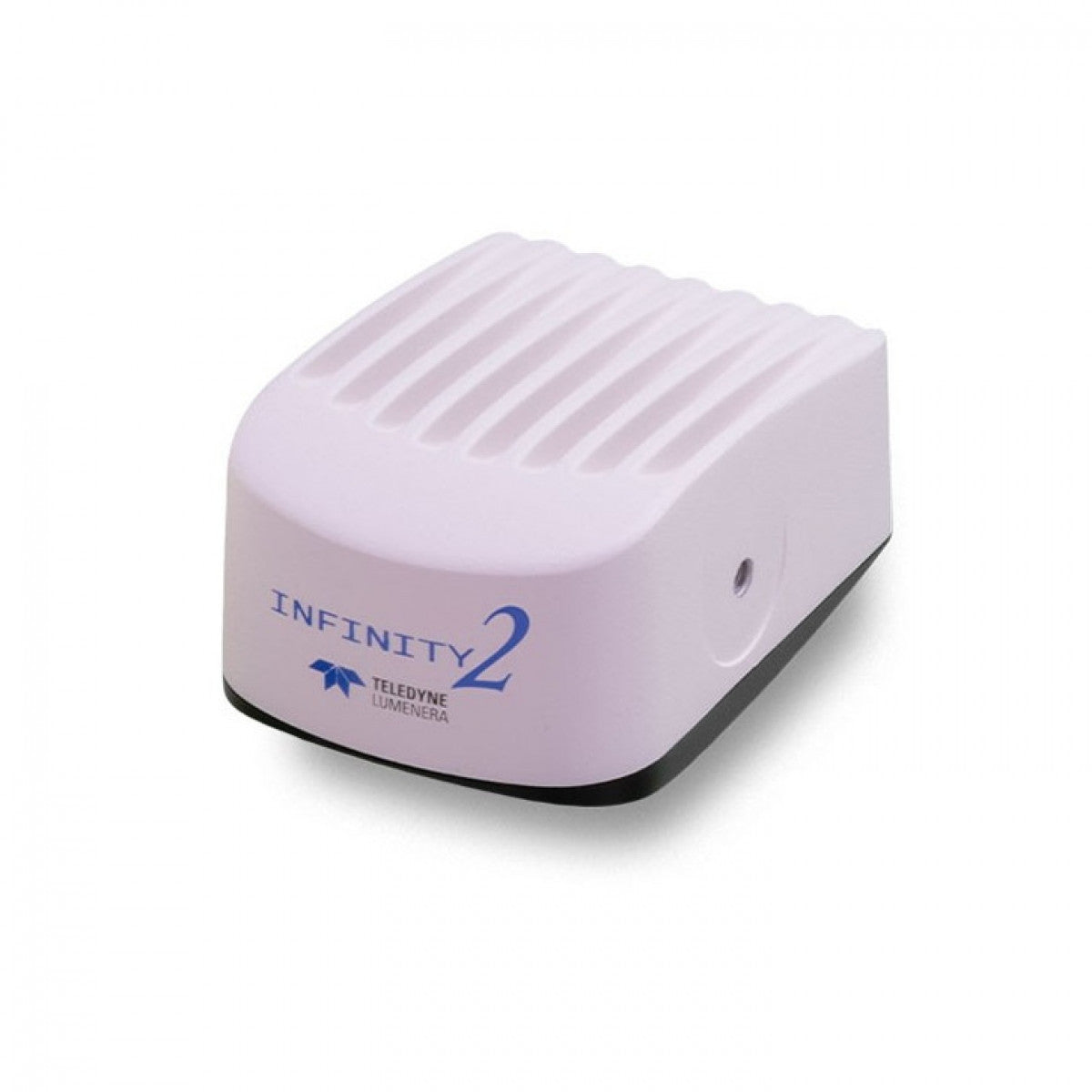

Teledyne Lumenera INFINITY 2-1R Monochrome Microscope Camera

$2,425.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

  • The high-speed USB 2.0 interface eliminates a framegrabber and facilitates ease of installation on both laptop and desktop computers
  • The excellent sensitivity and low noise characteristics of the AU-140M-CCD 1.4 megapixel CCD image sensor enable users to capture high quality images over a wide range of lighting conditions
  • Rapid focus and scanning of samples: 15 fps at full 1392×1040 resolution, 30 fps at smaller regions of interest
  • Maximum frame rates exceed 200 fps with binning and ROI
  • Select 8 & 12-bit pixel data modes
  • Camera control through an intuitive user TWAIN interface for easy integration to 3rd party software
  • Both Custom design services and a Software Developer’s Kit (SDK) are available to help with unique design requirements and software integration
  • Software compatible with Windows 10, 8, 7, XP, Vista, Mac OS X 10.7, 32 and 64-bit operating systems.


The 1.4 megapixel CCD digital camera is a versatile solution for clinical, life science, materials science, and educational professionals working under challenging light conditions. With 1392×1040 resolution and on-board processing, the INFINITY AU-140RM-CCD delivers outstanding image quality for a wide variety of scientific applications. Live video preview provides for real-time focus, while auto exposure and auto white balance efficiently capture your optimal image. An intuitive user application provides camera controls while full integration to popular third-party imaging applications is available through our TWAIN drivers. The USB 2.0 digital interface ensures a simple plug and play installation – and one standard cable minimizes camera clutter. Every INFINITY AU camera includes INFINITY ANALYZE software for advanced camera control, image processing, measuring and annotation, and is supported by an experienced team of technical support and imaging experts. We understand your imaging needs and are here to help you get the most out of your camera.

Camera Sensor
Image Sensor ½” Interline Sony ICX205 1.4 megapixel monochrome progressive scan CCD sensor 7.6mm x 6.2mm array
Effective Pixels 1392×1040, 4.65μm square pixels
Frame Rate 30 fps at 1392 x 1040, >200 fps with binning and ROI
Signal/Noise >64.6dB
Digital Output 8 and 14-bit
Read Noise 8.5 e- rms
Camera Controls
Mass 340g
Power Requirement USB bus power, or external 5VDC – 500mA
Power Consumption ~2.5Watts
Operating Temperature 0° C to +50° C
Operating Humidity 5%-95%, Non-condensing
Integration Time 5.4 μs to 8 min
Shutter Global Shutter
ROI User Selectable
Exposure Mode Automatic / Manual
White Balance Automatic / Manual
Gain Programmable / 0.5 to 15x optimizable
Interface Connector Standard USB 2.0 high-speed interface
Dimensions (L x W x H) 3.85 x 2.00 x 2.75 inches
Lens Mount C-Mount lens adapter
Binning Options 2×2, 4×4


Product Includes:

  • AU-140M-CCD INFINITY digital camera for USB 2.0
  • CD-ROM with INFINITY user application software
  • TWAIN driver
  • Documentation
  • USB 2.0 cable
