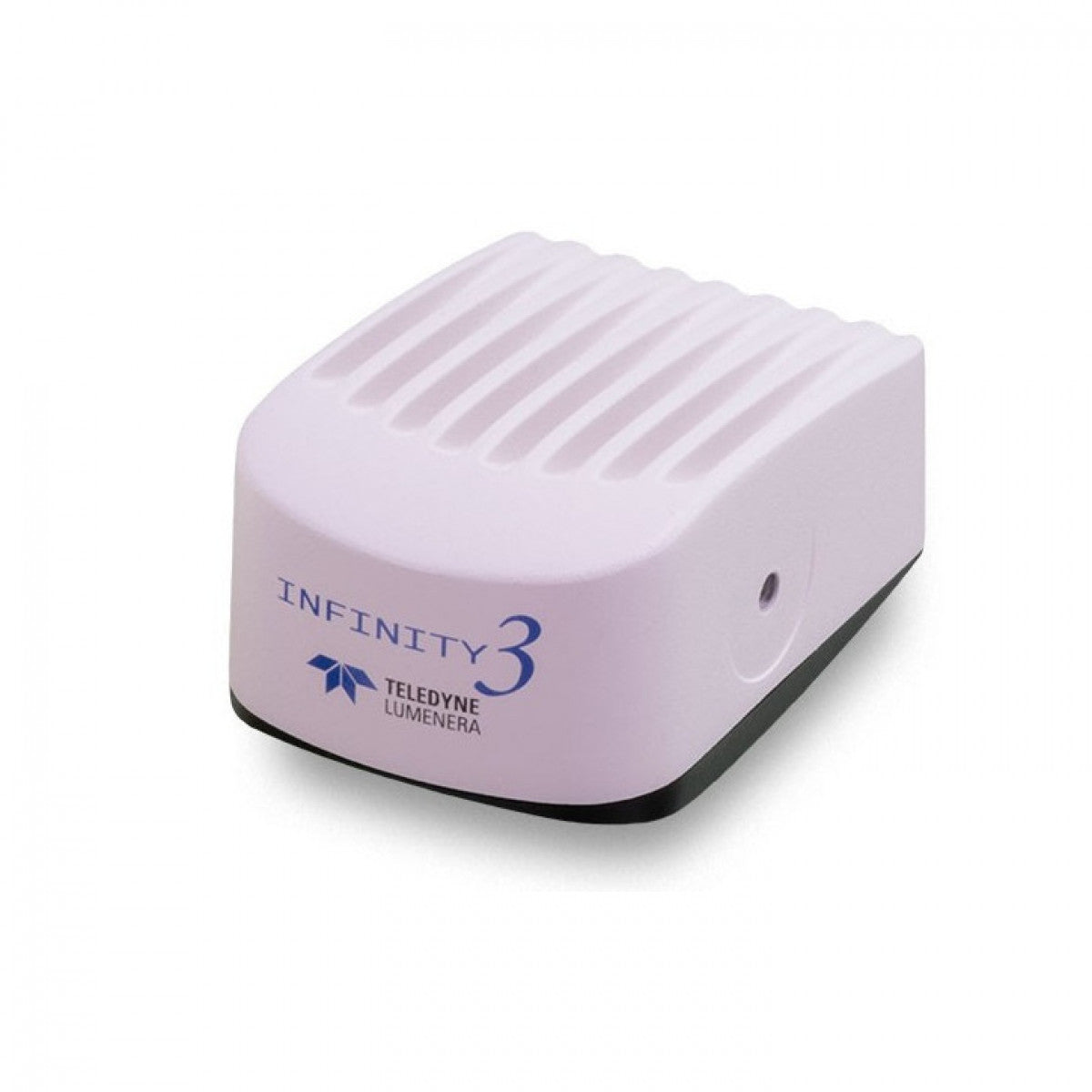

Teledyne Lumenera INFINITY 3-1UR Monochrome Microscope Camera

Regular price $4,650.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at

Have questions or need Faster Shipping? Call 919-775-5596

  • Monochrome, low noise progressive scan 2/3” 1.4 megapixel Sony ICX285 CCD sensor
  • The high-speed USB 2.0 interface eliminates a framegrabber and facilitates ease of installation on both laptop and desktop computers
  • Cooled feature reduces thermal noise during low light fluorescent imaging
  • Low noise characteristic of the AU-140URM-CCD progressive scan 1.4 megapixel CCD image sensor results in the most demanding brightfield, phase contrast, and fluorescent applications including GFP, FISH, NIR, FRET, life science and geology
  • Rapid focus and scanning of samples: 15 fps at full 1392×1040 resolution
  • Select 8 & 12-bit pixel data modes
  • Camera control through an intuitive user TWAIN interface results in rapid image capture archiving and documentation for high throughput applications, demanding research environments and teaching facilities
  • The INFINITY AU-140URM-CCD has a compact design equipped with a C-Mount facilitating installation on all microscope configurations including upright, inverted and stereo
  • Software compatible with Windows 10, 8, 7, XP, Vista, Mac OS X 10.7, 32 and 64-bit operating systems.

Lumenera’s INFINITY3-1UR microscopy camera has been reengineered to offer exceptional dynamic range, read noise and dark current noise. This uncooled camera's performance and price make it an ideal solution for moderate fluorescence applications. he Sony ICX285 ExView HAD sensor has a very dynamic range, excellent sensitivity and a 14-bit digital output. Designed to be used for a variety of applications, both color and monochrome models are available. With 1392×1040 resolution and on-board processing, these cameras deliver outstanding image quality and value for industrial and scientific imaging applications Uncompressed images in live streaming video and still-image capture are provided across a USB 2.0 digital interface. No framegrabber is required. Hardware and software based synchronization trigger is available as an option provided. On-board memory is available for frame buffering. The cooled CCD model cameras are offered in both enclosed and board-level form. Custom form factor (sizes) can be provided. Every INFINITY AU camera includes INFINITY ANALYZE software for advanced camera control, image processing, measuring and annotation, and is supported by an experienced team of technical support and imaging experts. We understand your imaging needs and are here to help you get the most out of your camera.

Camera Sensor
Image Sensor 1/1.8” Interline Sony ICX274 2.0 megapixel monochrome progressive scan CCD sensor
Effective Pixels 1616×1216, 4.4μm square pixels
Frame Rate 12 fps at full resolution, >25 fps at 640×480
Digital Output 8 and 14-bit
Read Noise 8 e- rms
Dark Current < 1 e-/s at 22 °C
Camera Controls
Mass 300g
Power Requirement External 5VDC – 3amp
Power Consumption ~2.5 Watts
Operating Temperature 0° C to +50° C
Operating Humidity 5%-95%, Non-condensing
Integration Time 3.5μs to 20 minutes
Exposure Mode Automatic / Manual
White Balance Automatic / Manual
Gain Programmable; 1 - 10x
Interface Connector USB 2.0 connector
Dimensions (L x W x H) 3.85 x 2.75 x 2.00 inches
Lens Mount C-Mount lens adapter
Binning Options 2x2, 4x4

Recommended PC Specs:

  • Pentium 4, 1.3 GHz or higher
  • 512MB RAM
  • 60 MB hard drive free space or more
  • USB 2.0 Port
  • Windows 2000, XP, Vista, or 7

Product Includes:

  • AU-140URM-CCD INFINITY digital camera for USB 2.0
  • CD-ROM with INFINITY user application software
  • TWAIN driver
  • Documentation
  • USB 2.0 cable

Infinity Analyze
