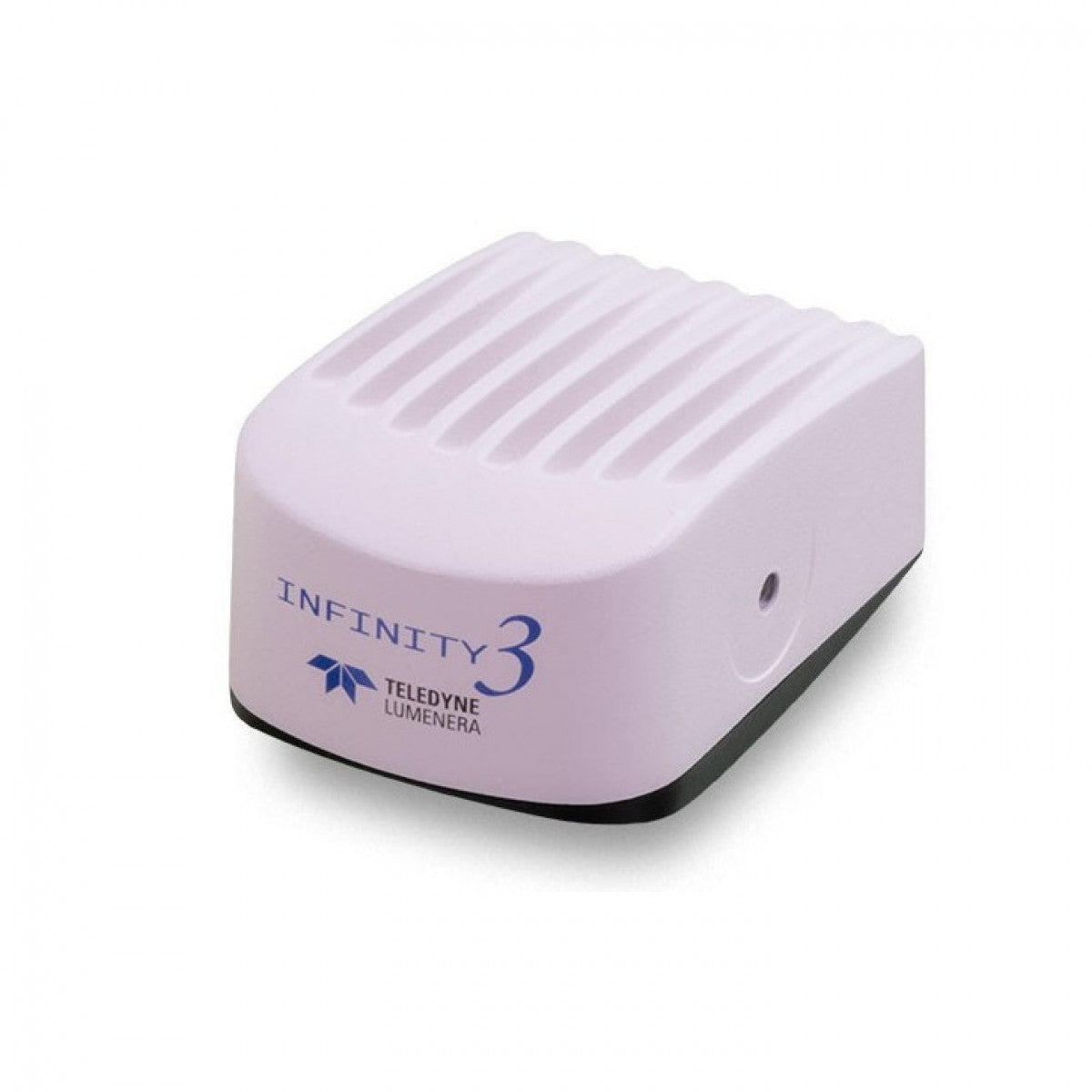

The INFINITY 3-3UR scientific digital camera features a Sony ICX674 CCD sensor, offers 53 fps at full 2.8 megapixel resolution via a high-speed USB 3.0 interface. Designed for use in scientific and industrial applications requiring optimal color reproduction, extreme sensitivity, increased resolution and high speed. The INFINITY 3-3UR provides unmatched light sensitivity needed for low light applications. Relying on Sony's EXview HAD ll technology, this camera offers extremely high dynamic range, 4.54 x 4.54 µm pixels and very low noise. The INFINITY 3-3UR delivers outstanding image quality and value for challenging low light applications such as fluorescence and NIR imaging.

Camera Sensor
Image Sensor	Sony ICX674 CCD color, 2/3″ optical format
Effective Pixels	1936 x 1456, 4.54 μm square pixels
Frame Rate	53 fps at 1936 x 1456, 66 fps (1920 x 1088), 109 fps (640 x 480)
Dynamic Range	68.8 dB (color)
Digital Output	8 and 14-bit
Read Noise	6.2 e- (4 taps, 16 tps, 25° ambient, 41° internal)
Dark Current	<1 e-/s (at 22°C ambient, 41°C internal)
Camera Controls
Mass	340g
Power Requirement	External 5VDC – 1.2A, power supply (included)
Power Consumption	~ 4 Watts
Operating Temperature	0° C to +50° C
Operating Humidity	5%-95%, Non-condensing
Integration Time	3 µs to 71 min (snapshot); 23 µs to 1.3 s (video)
ROI	Any multiple of 16x16 (quad tap mode)
Exposure Mode	Automatic / Manual
White Balance	Automatic / Manual
Gain	0.8 to 58x (color)
Interface Connector	USB 3.0 (USB 2.0 supported at lower frame rates)
Dimensions (L x W x H)	2.75 x 3.85 x 1.56 inches
Lens Mount	C-Mount lens adapter
Binning Options	2 x 2, 4 x 4, 8 x 8

Minimum PC Specs:

• 1.3 GHz Processor
• 1GB of RAM
• 60 MB hard drive free space
• USB 2.0 Port
• Windows XP (Service Pack 3)

Product Includes:

• AU-280C-CCD INFINITY digital camera for USB 3.0
• DVD with INFINITY user application software
• TWAIN driver
• Documentation
• USB 3.0 cable
• Power supply

Infinity Analyze
