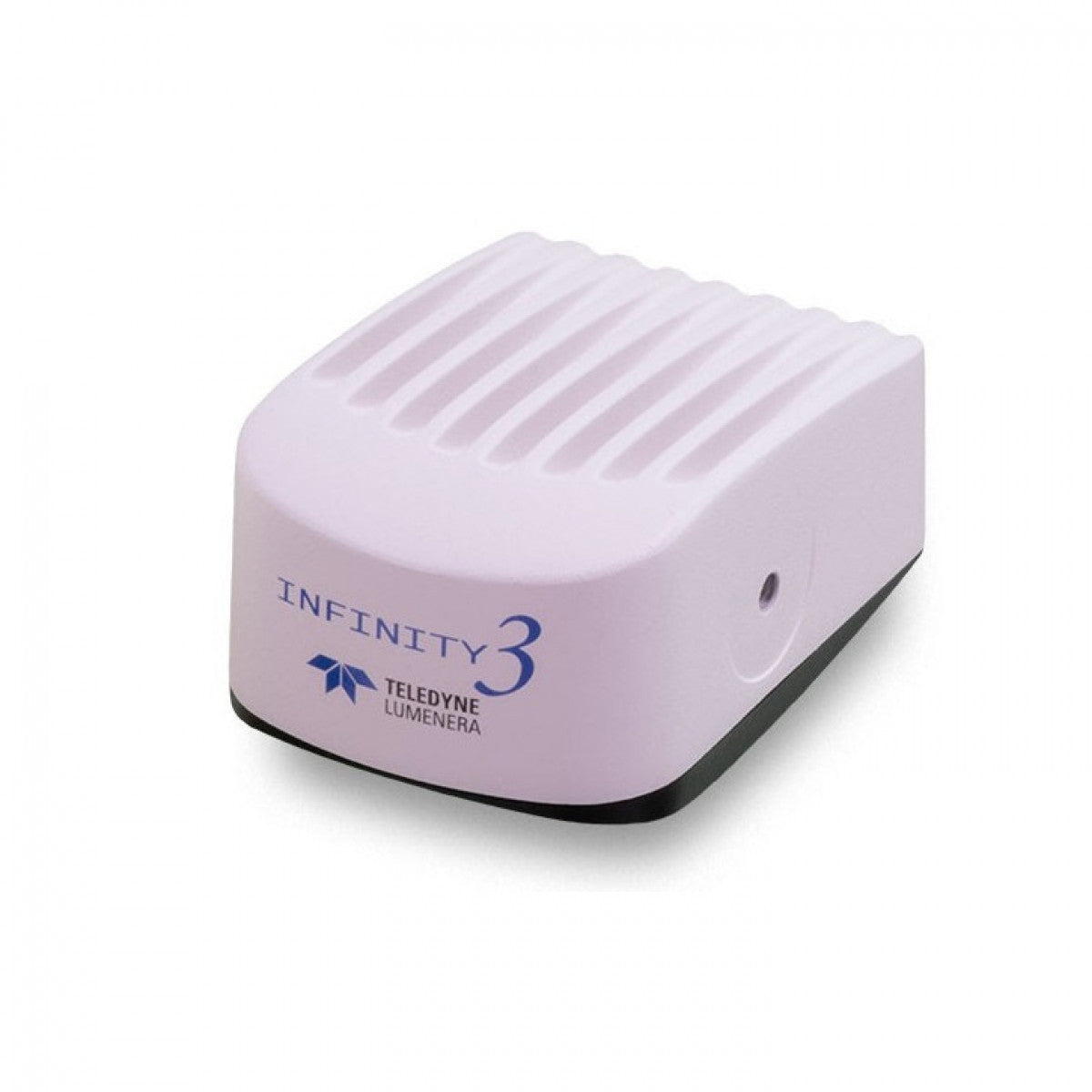

Teledyne Lumenera INFINITY 3-3UR Monochrome Microscope Camera

Regular price $4,925.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

  • Industry leading Sony EXview HAD II sensor technology
  • Monochrome ICX674 CCD sensor with 2/3″ optical format providing a resolution of 1936 x 1456 using 4.54 x 4.54 µm pixels
  • Fastest frame rate possible for the ICX674 sensor. Up to 53 fps at full resolution, 66 fps (1920 x 1088), 109 fps at VGA (640 x 480)
  • High-speed USB 3.0 interface for fastest image delivery and simplified connectivity. USB 2.0 supported.
  • GPI/O for control of peripherals and synchronization
  • Region of Interest (ROI) option to provide higher frame rates
  • Selectable 8 or 14-bit pixel data
  • Selectable tap readout, matching sensor performance to your application
  • Multiple frame rates supported, each optimized for lowest noise performance
  • Software compatible with Windows 10, 8, 7, XP, Vista, Mac OS X 10.7, 32 and 64-bit operating systems.
  • Includes TWAIN and Direct X/Direct Show support


The INFINITY3-3UR scientific digital camera features a Sony ICX674 CCD sensor, offers 53 fps at full 2.8 megapixel resolution via a high-speed USB 3.0 interface. Designed for use in scientific and industrial applications requiring optimal color reproduction, extreme sensitivity, increased resolution and high speed. The INFINITY3-3UR provides unmatched light sensitivity needed for low light applications. Relying on Sony's EXview HAD ll technology, this camera offers extremely high dynamic range, 4.54 x 4.54 µm pixels and very low noise. The INFINITY3-3UR delivers outstanding image quality and value for challenging low light applications such as fluorescence and NIR imaging.

Camera Sensor
Image Sensor Sony ICX674 CCD monochrome, 2/3″ optical format
Effective Pixels 1936 x 1456, 4.54 μm square pixels
Frame Rate 53 fps at 1936 x 1456, 66 fps (1920 x 1088), 109 fps (640 x 480)
Dynamic Range 65.3 dB (mono)
Digital Output 8 and 14-bit
Read Noise 6.2 e- (4 taps, 16 tps, 25° ambient, 41° internal)
Dark Current <1 e-/s (at 22°C ambient, 41°C internal)
Camera Controls
Mass 340g
Power Requirement External 5VDC – 1.2A, power supply (included)
Power Consumption ~ 4 Watts
Operating Temperature 0° C to +50° C
Operating Humidity 5%-95%, Non-condensing
Integration Time 3 µs to 71 min (snapshot); 23 µs to 1.3 s (video)
ROI Any multiple of 16x16 (quad tap mode)
Exposure Mode Automatic / Manual
White Balance Automatic / Manual
Gain 0.8 to 33x (mono)
Interface Connector USB 3.0 (USB 2.0 supported at lower frame rates)
Dimensions (L x W x H) 2.75 x 3.85 x 1.56 inches
Lens Mount C-Mount lens adapter
Binning Options 2 x 2, 3 x 3, 4 x 4, 8 x 8


Product Includes:

  • AU-280M-CCD INFINITY digital camera for USB 3.0
  • DVD with INFINITY user application software
  • TWAIN driver
  • Documentation
  • USB 3.0 cable
  • Power supply
