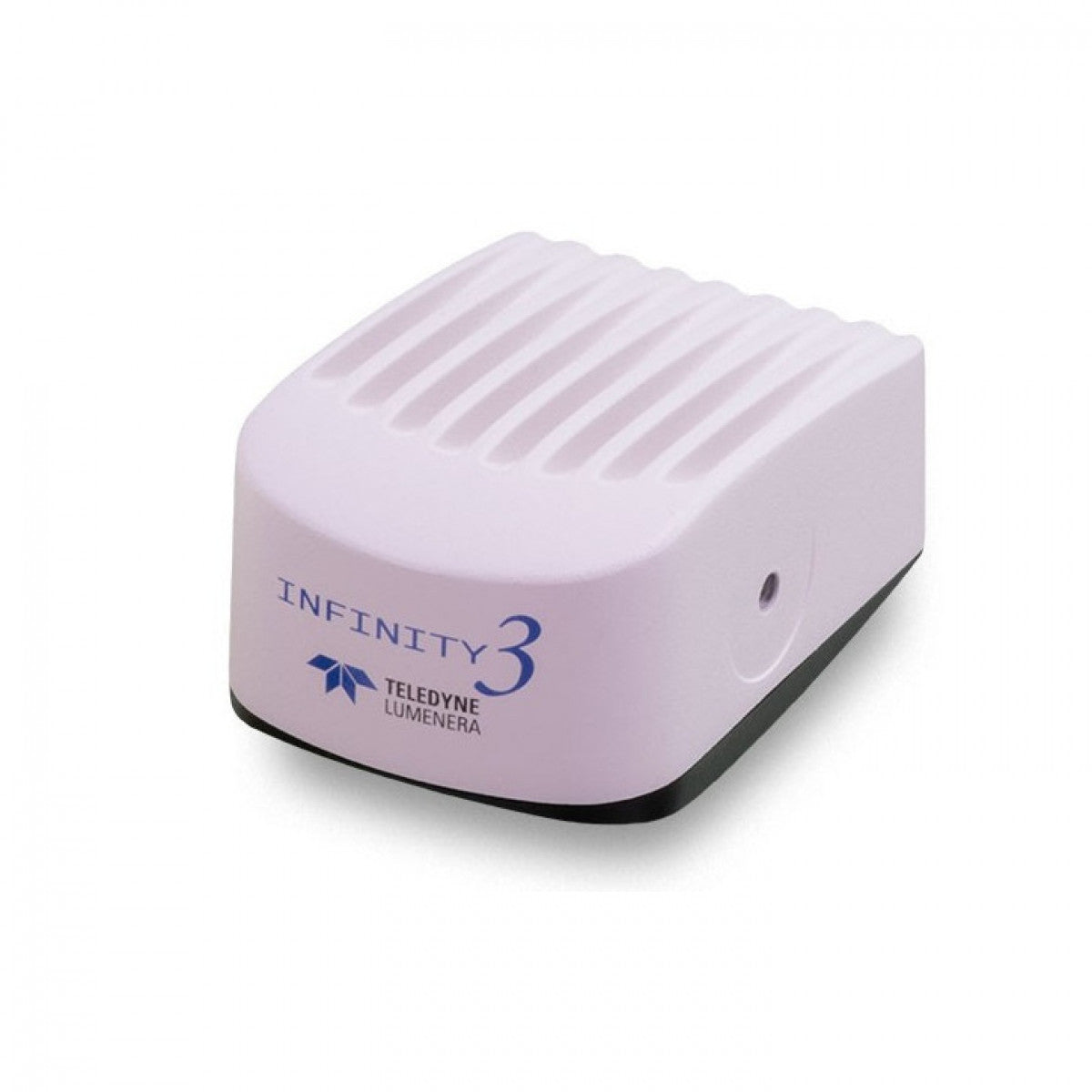

Lumenera’s INFINITY3-6UR is a high-speed, high-sensitivity camera with 6 megapixel resolution. Incorporating Sony’s ICX694 CCD sensor with high QE, high dynamic range and high speed, the INFINITY3-6UR delivers outstanding image quality and value for challenging low light applications such as fluorescence including the NIR region. The INFINITY3-6UR is the ideal general purpose camera for most microscopy applications due to its 6MP resolution, excellent color reproduction, speed and light sensitivity needed for low-light applications. Built on Sony’s EXview HAD II sensor technology, this camera offers extremely high dynamic range, 4.54 x 4.54 μm pixels and very low noise. With 2x2 binning, there is a fourfold increase in sensitivity while providing a 1.5 MP (1376x1096) resolution.

Camera Sensor
Image Sensor	Sony ICX694 CCD color, 1″ optical format
Effective Pixels	2752 x 2192, 4.54 μm square pixels
Frame Rate	27 fps (2752 x 2192), 46 fps (2 x 2 binned), 75 fps (640 x 480)
Dynamic Range	68.6 dB (color)
Digital Output	8 and 14-bit
Read Noise	6.5 e- (4 taps, 16 tps, 25° ambient, 41° internal)
Dark Current	<1 e-/s (at 22°C ambient, 41°C internal)
Camera Controls
Mass	395g
Power Requirement	External 5VDC – 1.2A, power supply (included)
Power Consumption	~ 6 Watts max in full frame rate mode
Operating Temperature	0° C to +50° C
Operating Humidity	5%-95%, Non-condensing
Integration Time	3 µs to 71 min (snapshot); 23 µs to 1.3 s (video)
ROI	Any multiple of 16x16 (quad tap mode)
Exposure Mode	Automatic / Manual
White Balance	Automatic / Manual
Gain	0.8 to 58x (color)
Interface Connector	USB 3.0 (USB 2.0 supported at lower frame rates)
Dimensions (L x W x H)	2.75 x 3.85 x 1.56 inches
Lens Mount	C-Mount lens adapter
Binning Options	2 x 2, 4 x 4, 8 x 8

Product Includes:

• AU-600URC-CCD INFINITY digital camera for USB 3.0
• DVD with INFINITY user application software
• TWAIN driver
• Documentation
• USB 3.0 cable
• Power supply
