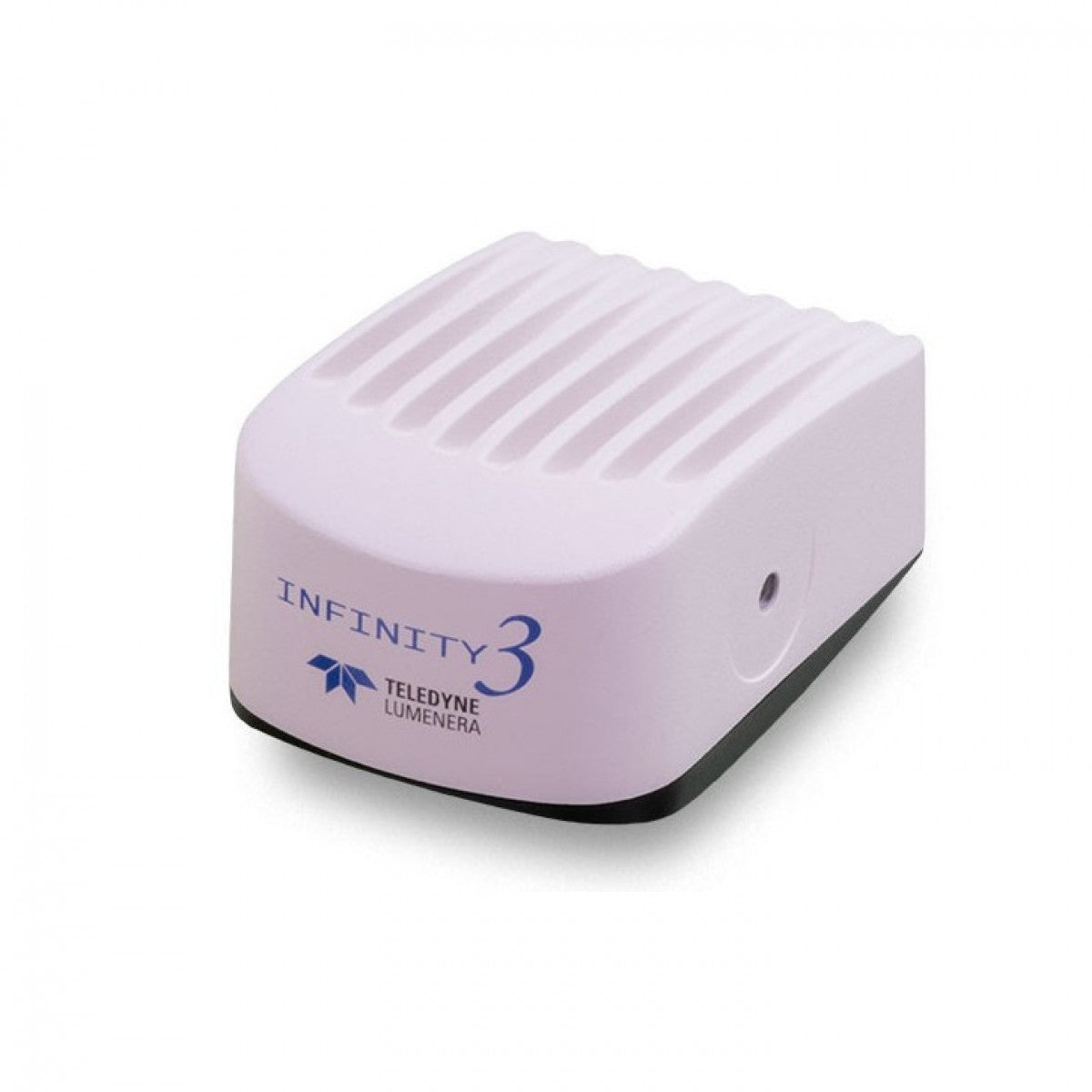

Teledyne Lumenera INFINITY 3-6UR Monochrome Microscope Camera | AU-600URM-CCD
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
The Teledyne Lumenera INFINITY3-6UR monochrome microscope camera uses CCD imaging technology for laboratory image acquisition, documentation and analysis. It is designed for compatible microscope imaging setups.
Key Features & Benefits
- Monochrome CCD image capture for microscopy
- Digital image acquisition for laboratory documentation and inspection
- Suitable for integration with compatible microscope camera ports and imaging software
Applications & Compatibility
Monochrome imaging for appropriate low-light and fluorescence workflows. Confirm camera mount, optical coupler, interface, software support and required accessories for this specific model before purchase.
Technical Specifications
| Manufacturer | Teledyne Lumenera |
|---|---|
| Model | INFINITY3-6UR |
| Part number | AU-600URM-CCD |
| Sensor technology | CCD |
| Image type | Monochrome |
Additional Technical Data
| Camera Sensor | |
|---|---|
| Image Sensor | Sony ICX694 CCD monochrome, 1″ optical format |
| Effective Pixels | 2752 x 2192, 4.54 μm square pixels |
| Frame Rate | 27 fps (2752 x 2192), 46 fps (2 x 2 binned), 75 fps (640 x 480) |
| Dynamic Range | 64.8 dB (mono) |
| Digital Output | 8 and 14-bit |
| Read Noise | 6.5 e- (4 taps, 16 tps, 25° ambient, 41° internal) |
| Dark Current | <1 e-/s (at 22°C ambient, 41°C internal) |
| Camera Controls | |
| Mass | 395g |
| Power Requirement | External 5VDC – 1.2A, power supply (included) |
| Power Consumption | ~ 6 Watts max in full frame rate mode |
| Operating Temperature | 0° C to +50° C |
| Operating Humidity | 5%-95%, Non-condensing |
| Integration Time | 3 µs to 71 min (snapshot); 23 µs to 1.3 s (video) |
| ROI | Any multiple of 16x16 (quad tap mode) |
| Exposure Mode | Automatic / Manual |
| White Balance | Automatic / Manual |
| Gain | 0.8 to 33x (mono) |
| Interface Connector | USB 3.0 (USB 2.0 supported at lower frame rates) |
| Dimensions (L x W x H) | 2.75 x 3.85 x 1.56 inches |
| Lens Mount | C-Mount lens adapter |
| Binning Options | 2 x 2, 3 x 3, 4 x 4, 8 x 8 |
Compatible Microscope Adapters & Microscopes
Building a microscope imaging system? Explore our microscope camera adapters and C-mount couplers, including Olympus 0.5x C-mount adapters, Olympus 0.35x C-mount adapters, and Nikon Eclipse 1x C-mount adapters.
Pair your camera with a microscope from our Olympus microscope selection or Nikon microscope selection. Adapter magnification and microscope phototube fit vary by camera sensor size and microscope model; contact our microscopy experts to confirm compatibility before ordering.
