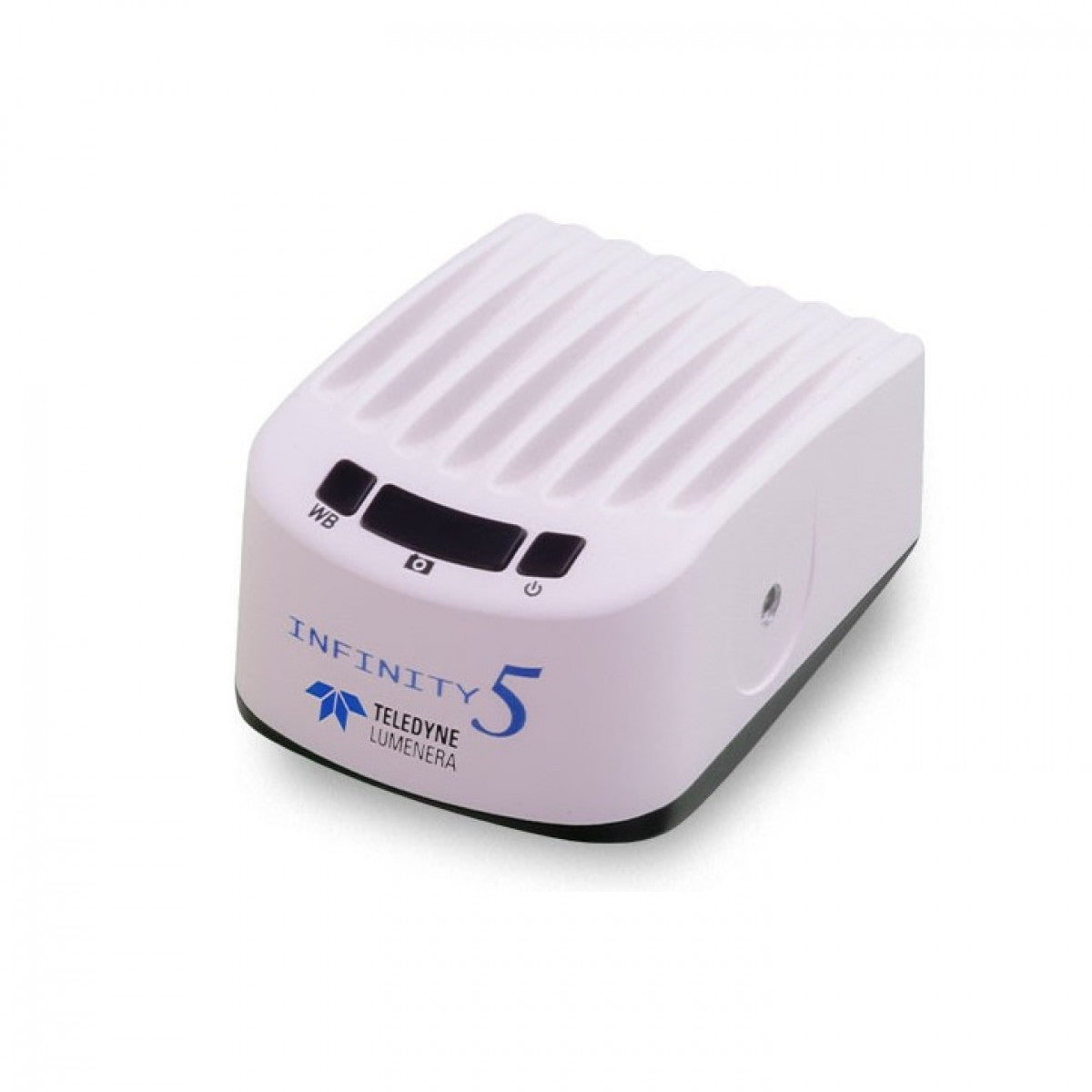

Lumenera INFINITY 5-3C Microscope Camera

$3,725.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

  • Sony Pregius global shutter sensor technology
  • Color IMX252 Global Shutter CMOS sensor with 1/1.8” optical format providing a resolution of 2064x1544 using 3.45x3.45μm pixels
  • Fast frame rates at ~120 fps at full resolution in 8-bit
  • Dual output to USB 3.0 and HDMI compatible monitor
  • Intuitive on-camera buttons for power, white balance and image capture
  • Selectable 8 or 12-bit pixel data
  • High-speed USB 3.1 Gen 1 interface for fastest image delivery and simplified connectivity. USB 2.0 supported.
  • Software compatible with Windows 10, Windows 8.1, Windows 7, MAC OS X 10.13, 32 and 64-bit operating systems. Includes TWAIN and DirectShow interfaces.
  • Support for third-party capture and analysis applications: MetaMorph and Micro-Manager
  • 0.5x or 0.63x camera coupler recommended


The INFINITY5-3 is a high quality 3-megapixel microscopy camera that provides high speeds at high resolution. Based on the Sony® Pregius™ global shutter CMOS sensor, the INFINITY5-3 rivals sCMOS technology with frame rates of up to 120 frames per second. It’s 1/1.8-inch sensor format accommodates a 2064x1544 resolution with 3.45μm pixels. The USB 3.0 and HDMI connections allow the INFINITY5-3 to connect to either or both a computer and HDMI monitor for applications where simultaneous live viewing is desired. The INFINITY5-3 is ready to perform with cables (USB and HDMI), power supply, and INFINITY CAPTURE software for routine imaging needs, including camera setting adjustments, live preview, image capture, and video clips. The INFINITY5-3 also provides third-party interoperability with MetaMorph and Micro-Manager microscopy software, MatLab systems engineering software, LabView analysis software, and TWAIN and DirectShow interfaces. The INFINITY5-3 comes with an industry-leading, full four-year year warranty.

Camera Sensor
Image Sensor SONY IMX252; CMOS format, color, diagonal 8.9mm array
Effective Pixels 2064×1544, 3.45μm square pixels
Frame Rate 1080P60 (~120 fps at full resolution) in 8-bit
Signal/Noise >73dB
Digital Output 8 or 12-bit
Read Noise ~ 2.35 e-
Camera Controls
Mass 330g
Power Requirement External 5VDC – 1.2A, power supply (included)
Power Consumption ~4Watts
Operating Temperature 0° C to 50° C
Operating Humidity 5%-95%, Non-condensing
Integration Time 38μs to 595m (snapshot); 14μs to 11.9s (video)
Shutter Global Shutter
ROI Full Frame
Exposure Mode Automatic / Manual
White Balance Automatic / Manual
Gain ~1 to 16x; manual and automatic
Interface Connector USB 3.0 connector, HDMI output
Dimensions (L x W x H) 3.85 x 2.75 x 2.25 inches
Lens Mount C-Mount lens adapter
Binning Options none for color camera


Product Includes:

  • AU-320C-CMOS INFINITY 5-3 – 3.2MP digital camera with 3m USB 3 cable
  • DVD with INFINITY user application software, TWAIN driver, Documentation
  • 3M HDMI cable
  • Power supply transformer, 5VDC, 15W, 3A, International
