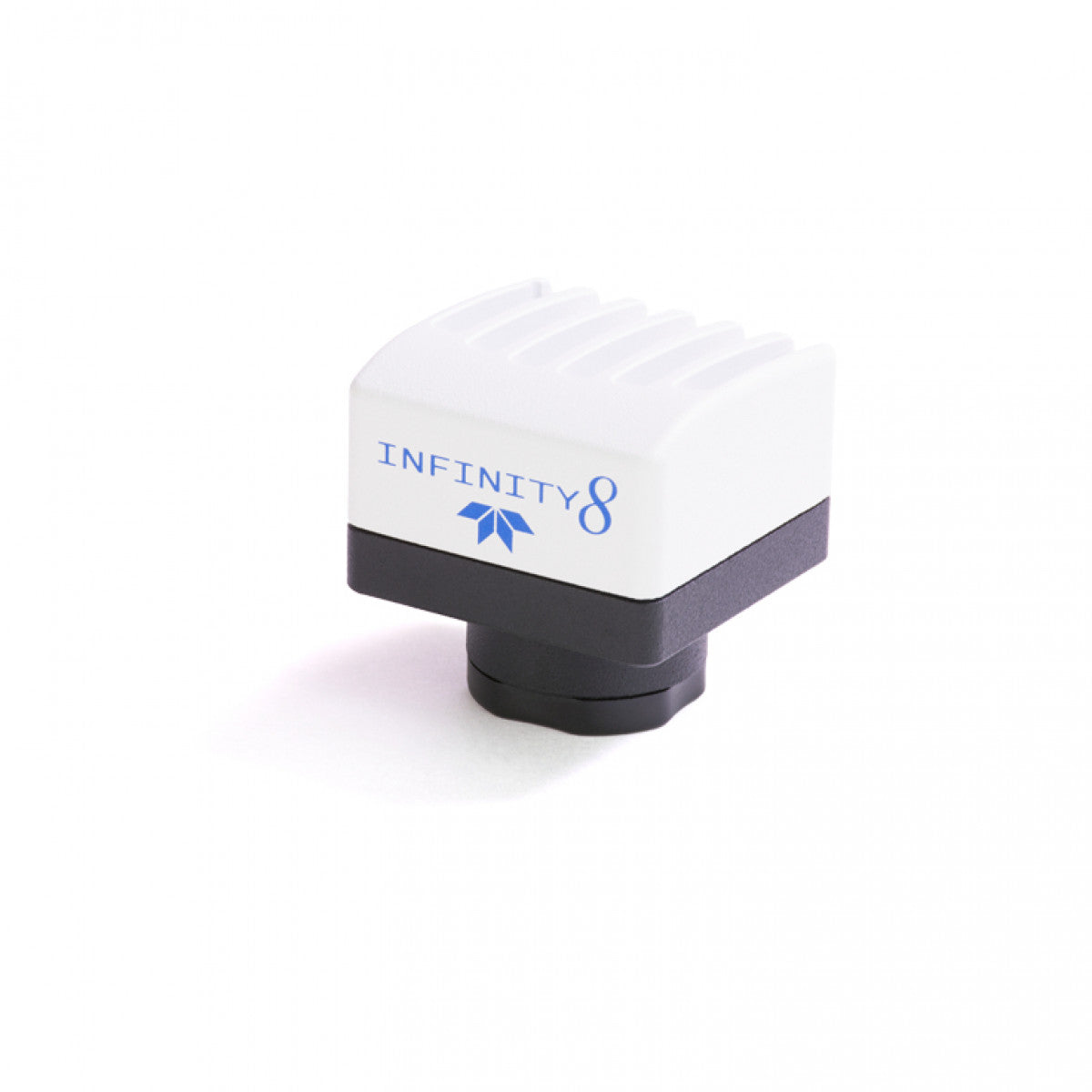

Lumenera INFINITY 8-20C Microscope Camera

$4,131.00
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

  • Color sensor with 1” optical format
  • 20 megapixel microscope camera with fast frame rates of 19.6 fps at full resolution (5472 x 3648)
  • USB 3 plug and play interface for fast image delivery and simplified connectivity
  • Compact form factor
  • Support for locking industrial micro USB on the back for power and control
  • INFINITY ANALYZE microscopy software included with purchase. No annual license fees. (camera requires INFINITY ANALYZE v7.0.3 or higher)
  • Software support for Windows and Mac, along with third-party plugins for MetaMorph and MicroManager
  • Selectable 8 or 12-bit pixel data
  • Recommended coupler: 1x


Ultra High-Resolution Microscope Camera

The ultra high-resolution INFINITY8-20C camera, with a large Field of View, is optimized for fast sample focusing to capture every detail even with low magnification. This makes it an ideal choice for biological and material industrial samples.

Ultra High Resolution

The INFINITY8-20C brings a 5472 x 3648 resolution to any c-mount microscope. This large one-inch sensor provides great sensitivity even in challenging light environments. Instead of worrying about pixel shifting or using other mechanical movements to image specific details, the INFINITY8-20C captures 20-megapixel images with a single click.

Large Field of View

With the high resolution of the INFINITY8-20C, capture images with a large field of view (FoV). This allows for a single image to capture more of a sample without needing to take multiple images. A 1X coupler also helps to reduce the costs of your overall set up.

Accurate Color Reproduction

The INFINITY8-20C is designed with Sony’s advanced CMOS sensor technology. Coupled with Teledyne Lumenera’s extensive expertise working with applications requiring critical color reproduction and consistency, the colors in your sample will appear true to life and with a high level of contrast.



Camera Sensor
Image Sensor SONY IMX183; CMOS format, color, 1” diagonal
Effective Pixels 5472×3648, 2.4μm square pixels
Frame Rate 20 fps maximum at full resolution in 8-bit; 10 fps in 12-bit
Signal/Noise 41.7 dB
Digital Output 8 or 12-bit
Read Noise 3.4 e-
Camera Controls
Mass 108g
Power Requirement 5V via Power Over USB3 Cable.
Power Consumption ~3.6 Watts
Operating Temperature 0° C to 50° C
Operating Humidity 10%-70%, Non-condensing
Integration Time Programmable in increments of 1μs; minimum (in μs) is 14 μs maximum is 76 minutes; Pulse controlled via Trigger pulse width.
Shutter Rolling Shutter with Global row reset function
ROI Full Frame
Exposure Mode Automatic / Manual
White Balance Automatic / Manual
Gain In-sensor Gain; 45 dB
Interface Connector USB 3.1 connector, A-male to computer
Dimensions (L x W x H) 41.5 mm (max) x 45 mm x 45 mm
Lens Mount C-Mount lens adapter
Binning Options 2 x 2



Product Includes:

  • I8-LC00-20M INFINITY8-20C – 20MP digital camera with 3m USB 3 cable (A-Male to Micro-B male Locking)
  • DVD with INFINITY user application software, TWAIN driver, Documentation
