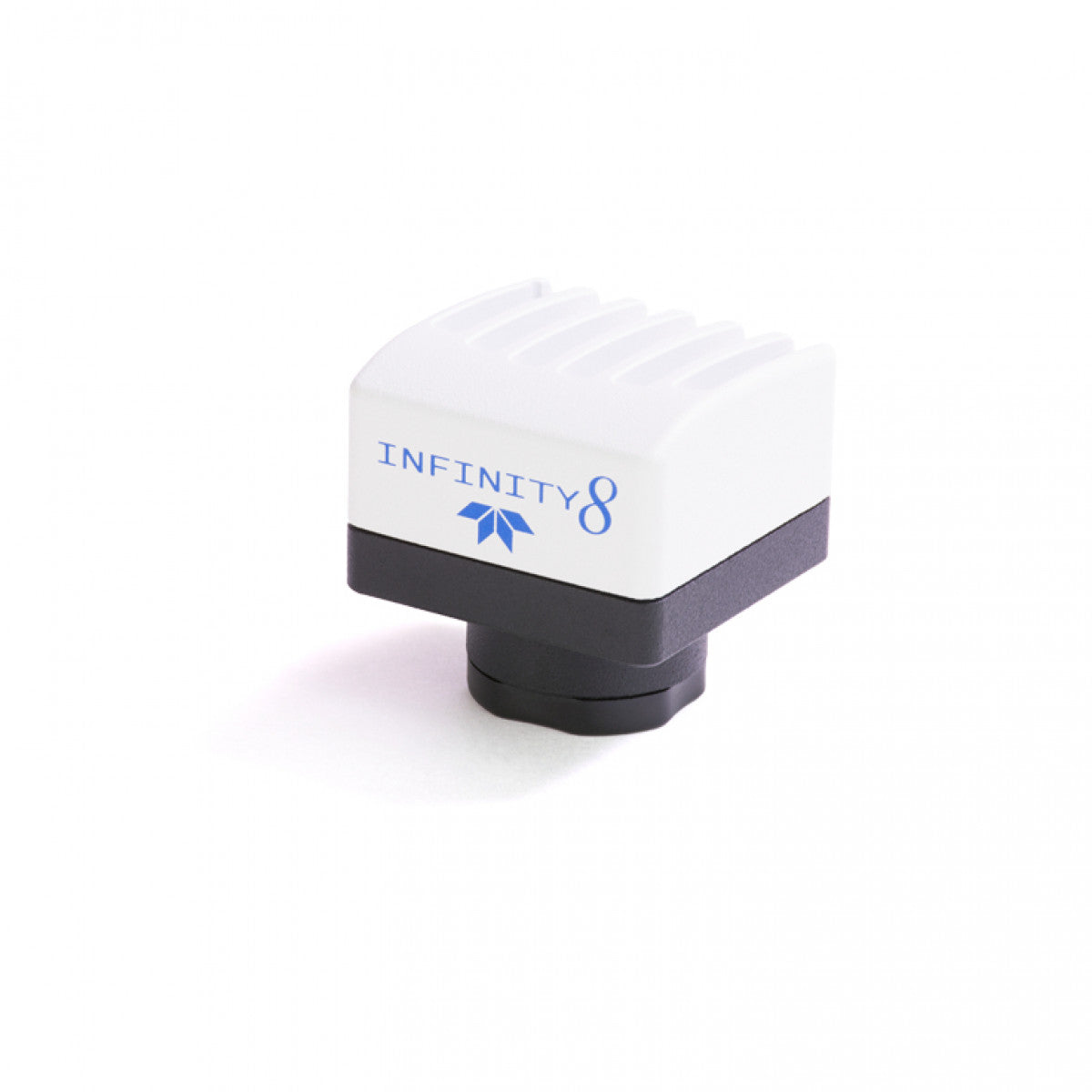

Fast, Responsive, Economical Microscope Camera
The new INFINITY8-8C camera is designed to reproduce what your eye sees in the eyepiece, complete with an intuitive software package all for a price that will fit within the most tight budgets. Stream live videos or capture still images and share with ease.
The INFINITY8-8C provides crisp color images for applications requiring critical color reproduction and consistency.
The INFINITY8-8C is designed with Sony’s advanced CMOS sensor technology which excels in challenging light environments.
Accurate color reproduction
Advanced CMOS sensor technology coupled with Teledyne Lumenera’s extensive expertise working with applications requiring critical color reproduction and consistency, means the INFINITY8-8C produces colors that appear true to life and with a high level of contrast.
Full software license suite
Included with the INFINITY8-8C is the latest microscopy software from Teledyne Lumenera, INFINITY ANALYZE 7. This software suite provides a breadth of features including support for both brightfield and fluorescence imaging. The user-friendly interface makes capturing, annotating and other workflow items easy. Combined with Teledyne Lumenera’s world class technical assistance center (TAC), support is a click away.
|Image Sensor||SONY IMX334; CMOS format, color, 1/1.8” diagonal|
|Effective Pixels||3840×2160, 4.5μm square pixels|
|Frame Rate||96 fps maximum at full resolution in 8-bit or 12-bit mode|
|Digital Output||8 or 12-bit|
|Read Noise||2.0 e-|
|Power Requirement||5V via Power Over USB3 Cable.|
|Power Consumption||~3.6 Watts|
|Operating Temperature||0° C to 50° C|
|Operating Humidity||10%-70%, Non-condensing|
|Integration Time||Programmable in increments of 1μs; minimum (in μs) is 14 μs maximum is 76 minutes; Pulse controlled via Trigger pulse width.|
|Shutter||Rolling Shutter with Global row reset function|
|Exposure Mode||Automatic / Manual|
|White Balance||Automatic / Manual|
|Gain||In-sensor Gain; 72 dB|
|Interface Connector||USB 3.1 connector, A-male to computer|
|Dimensions (L x W x H)||41.5 mm (max) x 45 mm x 45 mm|
|Lens Mount||C-Mount lens adapter|
|Binning Options||2 x 2|
- I8-LC00-08M INFINITY8-8C – 8.3MP digital camera with 3m USB 3 cable (A-Male to Micro-B male Locking)
- DVD with INFINITY user application software, TWAIN driver, Documentation
