Lumenera INFINITY 8-8M Microscope Camera - microscopemarketplace
Lumenera INFINITY 8-8M Microscope Camera - microscopemarketplace
Lumenera

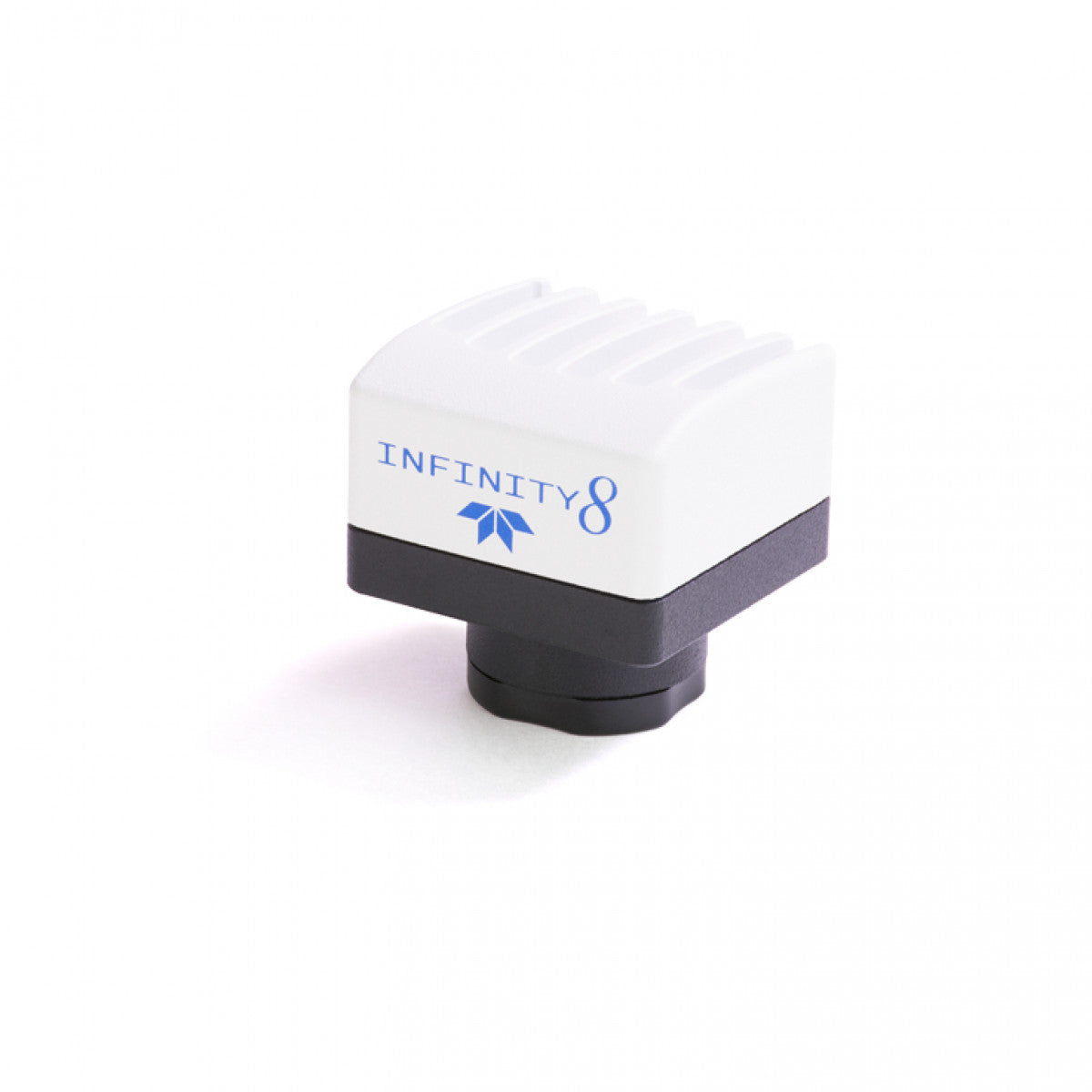

Lumenera INFINITY 8-8M Microscope Camera

$1,749.60
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

  • Monochrome CMOS sensor with 1/1.8” optical format
  • 8.3 megapixel camera with fast frame rates of 96 fps at full resolution (3840 x 2160)
  • Direct USB3 interface for fast image delivery and simplified connectivity
  • Compact form factor
  • Support for locking industrial micro USB on the back for power and control
  • INFINITY ANALYZE microscopy software included with purchase. No annual license fees. (camera requires INFINITY ANALYZE .7.0.3 or higher)
  • Software support for Windows and Mac, along with third-party plugins for MetaMorph and MicroManager
  • Selectable 8 or 12-bit pixel data
  • Recommended coupler: 0.5x - 0.63x


Fast, Responsive, Economical Microscope Camera

The new INFINITY8-8M camera is designed to reproduce what your eye sees in the eyepiece, complete with an intuitive software package all for a price that will fit within the most tight budgets. Stream live videos or capture still images and share with ease.

The INFINITY8-8M allows equal signal detection across every pixel when using microscope filter wheels.

Imaging performance

The INFINITY8-8mMis designed with Sony's advanced monochrome CMOS sensor technology which excels in challenging light environments.

Full software license suite

Included with the INFINITY8-8C is the latest microscopy software from Teledyne Lumenera, INFINITY ANALYZE 7. This software suite provides a breadth of features including support for both brightfield and fluorescence imaging. The user-friendly interface makes capturing, annotating and other workflow items easy. Combined with Teledyne Lumenera’s world class technical assistance center (TAC), support is a click away.



Camera Sensor
Image Sensor SONY IMX334; CMOS format, monochrome, 1/1.8” diagonal
Effective Pixels 3840×2160, 4.5μm square pixels
Frame Rate 96 fps maximum at full resolution in 8-bit or 12-bit mode
Signal/Noise 38.5 dB
Digital Output 8 or 12-bit
Read Noise 2.0 e-
Camera Controls
Mass 108g
Power Requirement 5V via Power Over USB3 Cable.
Power Consumption ~3.6 Watts
Operating Temperature 0° C to 50° C
Operating Humidity 10%-70%, Non-condensing
Integration Time Programmable in increments of 1μs; minimum (in μs) is 14 μs maximum is 76 minutes; Pulse controlled via Trigger pulse width.
Shutter Rolling Shutter with Global row reset function
ROI Full Frame
Exposure Mode Automatic / Manual
White Balance n/a
Gain In-sensor Gain; 72 dB
Interface Connector USB 3.1 connector, A-male to computer
Dimensions (L x W x H) 41.5 mm (max) x 45 mm x 45 mm
Lens Mount C-Mount lens adapter
Binning Options 2 x 2



Product Includes:

  • I8-LM00-08M INFINITY8-8C – 8.3MP digital camera with 3m USB 3 cable (A-Male to Micro-B male Locking)
  • DVD with INFINITY user application software, TWAIN driver, Documentation

Infinity Analyze
