Home » Lumenera INFINITY 8-9M Microscope Camera
Lumenera INFINITY 8-9M Microscope Camera - microscopemarketplace
Lumenera INFINITY 8-9M Microscope Camera - microscopemarketplace
Lumenera

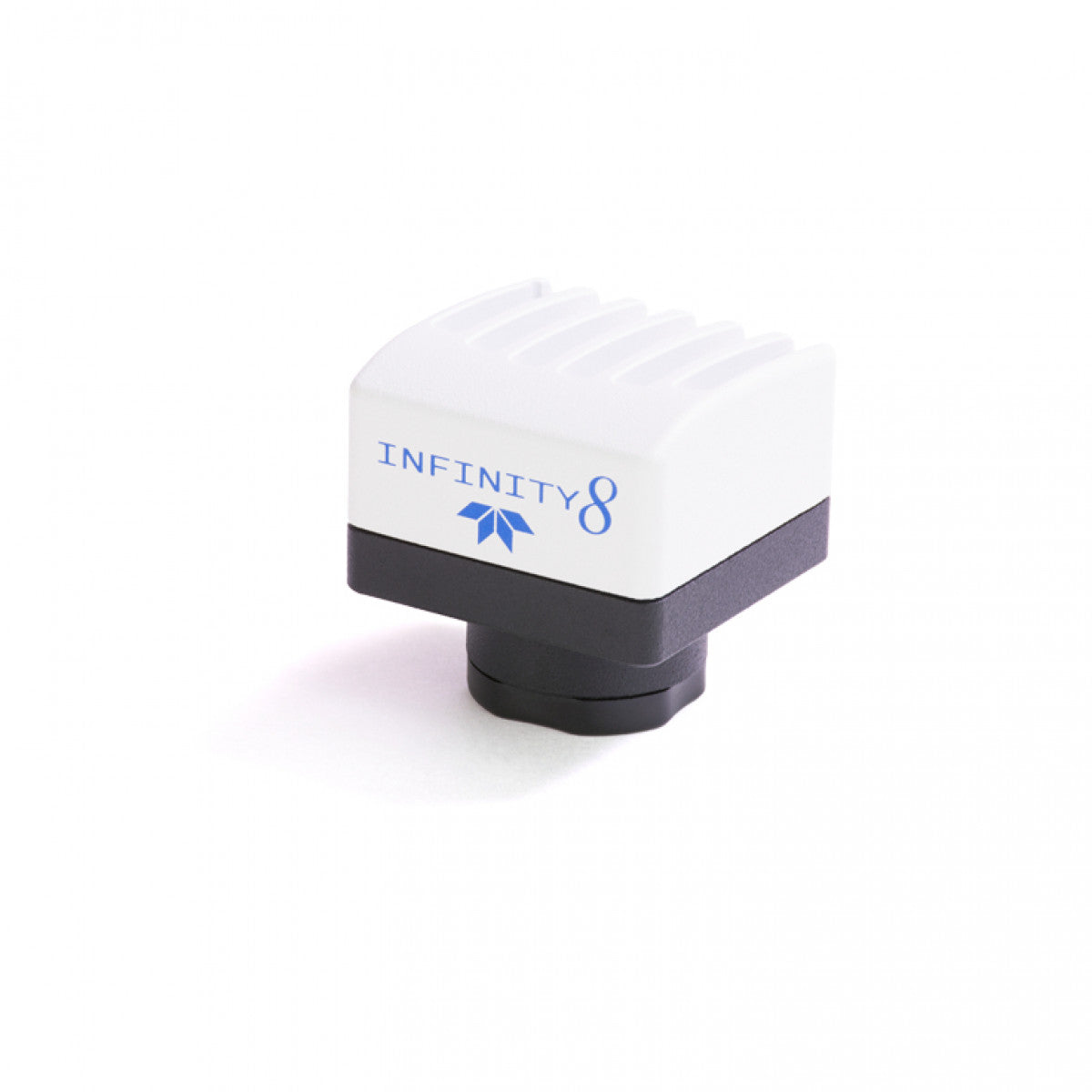

Lumenera INFINITY 8-9M Microscope Camera

$4,900.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

  • Monochrome CMOS sensor with 1.0” optical format
  • Global shutter
  • 2.9 megapixel camera with fast frame rates of 62 fps at full resolution (4112 x 2176)
  • Direct USB3 interface for fast image delivery and simplified connectivity
  • Compact form factor
  • Support for locking industrial micro USB on the back for power and control
  • INFINITY ANALYZE microscopy software included with purchase. No annual license fees. (camera requires INFINITY ANALYZE 7.0.3 or higher)
  • Software support for Windows and Mac, along with third-party plugins for ImagePro, MetaMorph and MicroManager
  • Selectable 8 or 12-bit pixel data
  • Recommended coupler: 1.0x

Fast, 4K Ultra-High-Definition Display, 9-Megapixel Microscopy Camera

The new INFINITY8-9M camera is designed to reproduce what your eye sees in the eyepiece, complete with an intuitive software package all for a price that will fit within the tightest budgets. Stream live videos or capture still images and share with ease.

The INFINITY8-9M delivers exceptional monochrome images with ultra high definition with superb low light performance.

The INFINITY8-9M features a global shutter for distortion-free images.

Watch live 4K images directly on your PC.

Imaging performance

The INFINITY8-9M is designed with Sony’s advanced CMOS sensor technology which excels in challenging light environments such a polarized light, darkfield and fluorescence.

Full software license suite

Included with the INFINITY8-9M is the latest microscopy software from Teledyne Lumenera, INFINITY ANALYZE 7. This software suite provides a breadth of features including support for both brightfield and fluorescence imaging. The user-friendly interface makes capturing, annotating and other workflow items easy. Combined with Teledyne Lumenera’s world class technical assistance center (TAC), support is a click away.

Camera Sensor
Image Sensor SONY IMX267; CMOS format, monochrome, 1.0” diagonal
Effective Pixels 4112 x 2176, 3.45μm square pixels
Frame Rate 31 fps maximum at full resolution
Signal/Noise 73.3 dB
Digital Output 8 or 12-bit
Read Noise 2.3 e-
Camera Controls
Mass 108g
Power Requirement 5V via Power Over USB3 Cable.
Power Consumption 2.3-3.6 Watts
Operating Temperature 0° C to 50° C
Operating Humidity 10%-70%, Non-condensing
Shutter Global
ROI Full Frame
Exposure Mode Automatic / Manual
White Balance Automatic / Manual
Gain In-sensor Gain; 72 dB
Interface Connector USB 3.1 connector, A-male to computer
Dimensions (L x W x H) 41.5 mm (max) x 45 mm x 45 mm
Lens Mount C-Mount lens adapter
Binning Options 2 x 2



Product Includes:

  • I8-LC00-09M INFINITY8-9M – 8.9MP digital camera with 3m USB 3 cable (A-Male to Micro-B male Locking)
  • INFINITY user application software, TWAIN driver, Documentation

Infinity Analyze
