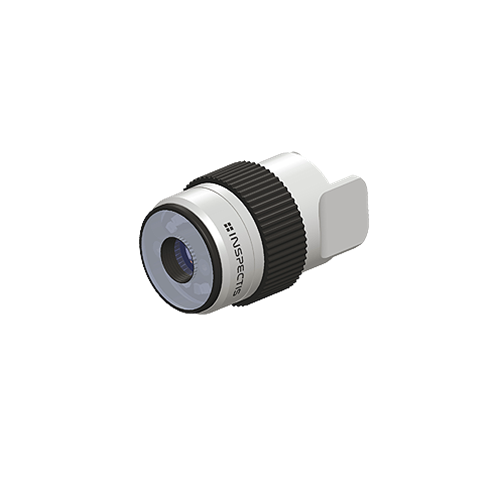

The Inspectis Microscope 8x–80x Interchangeable Top-View Varifocal Lens (DM-010) is a precision optical accessory designed to expand the capabilities of your Inspectis BGA inspection microscope system by providing a versatile top-view varifocal lens with built-in LED illumination. This lens delivers a magnification range of approximately 8× to 80× on a standard monitor, making it ideal for top-down inspection of printed circuit boards, components, and surface defects where bright, even illumination and flexible zoom are essential.

Equipped with a pure white LED ring light and holographic diffuser, the lens produces clear, evenly lit images that help operators identify fine features and surface irregularities during inspection and quality control procedures. This interchangeable varifocal lens is a perfect replacement or supplemental option for users wanting to enhance inspection capability without replacing the entire system.

Specifications

• Part Number / SKU: DM-010

• Magnification Range: ~8× – 80× on a standard 24″ monitor (on-screen magnification)

• Working Distance: ~10 – 150 mm

• Illumination: Built-in pure white LED ring-light with holographic diffuser for even top illumination

• Lens Size: Approx. 29 mm diameter × 36 mm length

• Compatibility: Works with Inspectis BGA inspection systems and other compatible microscope rigs requiring top-view optics

• Manufactured: Sweden

• Warranty: 2-year limited manufacturer warranty

• Return Policy: This item is non-returnable

• Lead Time: Typically 3–4 weeks delivery (quote on request)

Features & Benefits

• Wide Magnification Range: Variable 8× to 80× magnification covers both overview and detailed inspection needs with a single lens.

• Built-In LED Illumination: Pure white LED ring-light with diffuser produces bright, uniform lighting — ideal for top-view inspection of boards and surfaces.

• Interchangeable Optics: Easy to swap with other lenses in the Inspectis ecosystem, enabling flexible optical configurations.

• Industrial-Grade Construction: Precision optics manufactured in Sweden with a 2-year limited warranty for reliable inspection performance.

• Enhances Inspection Capabilities: Works as a replacement or additional lens to expand inspection range in BGA and electronics QC systems.
