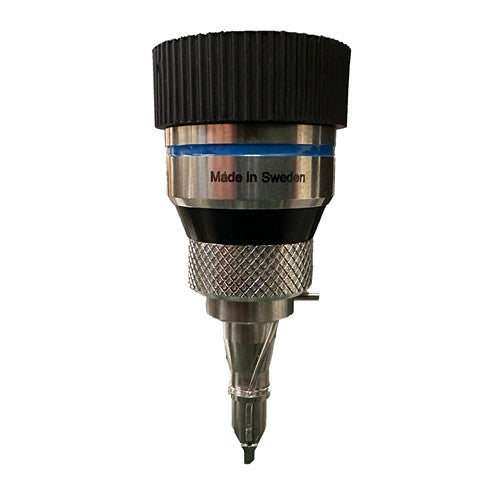

The Inspectis Microscope 90º Side-View BGA Small Lens is a precision optical accessory designed for side-view inspection of hidden solder joints on BGA, µBGA, FipChip, CGA, CSP, SMD, and other surface-mounted components. These small side-view lenses offer powerful optics that deliver clear images of features down to ~40 µm stand-off that can’t be seen with conventional top-down objectives, making them ideal for electronics inspection, board-level quality control, and semiconductor analysis.

Two lens options are available — the standard small lens and the extended magnification (XM) small lens — giving you flexibility in working distance, on-screen magnification range, and field of view to suit different inspection needs.

Specifications

• Part Numbers / Options:
  • BGA-005 – Side-view BGA Small Lens
  • BGA-005-XM – Side-view BGA XM Small Lens

• Magnification (on 28″ monitor):
  • Small Lens: ~36× – 300×
  • Small XM Lens: ~55× – 370×

• Working Distance (Focusing Range):
  • Small Lens: ~0.5 – 100 mm
  • Small XM Lens: ~0.3 – 20 mm

• Field of View (FoV):
  • Small Lens: ~2 – 16.5 mm
  • Small XM Lens: ~1.6 – 11 mm

• Required Free Working Area: ~0.8 mm

• Manufactured: Sweden

• Warranty: 2-year limited manufacturer warranty

• Return Policy: Item is non-returnable

• Lead Time: ~3–4 weeks (quote on request)

Features & Benefits

• 90º Side-View Optics: Specialized design enables viewing of concealed solder joints and underside features that are inaccessible to top-down lenses.

• Compact Lens Profile: Smaller-footprint optical tip helps to access tight stand-off areas around components.

• Two Magnification Ranges: Standard and extended (XM) options provide flexibility for varied inspection tasks.

• Industrial-Grade Quality: Swedish-manufactured optics built for reliability in industrial and production workflows.

• Ideal for BGA Systems: Works as a replacement or supplementary lens with Inspectis BGA inspection platforms.
