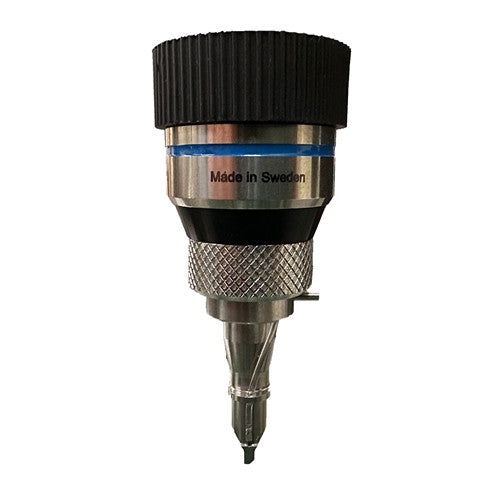

The Inspectis Microscope 90º Side-View BGA Standard Lens is a specialized optical accessory designed for side-view Ball Grid Array (BGA) inspection with compatible Inspectis BGA microscope systems. These powerful lenses allow detailed imaging of hidden solder joints on FipChip, BGA, µBGA, CGA, CSP, SMD, and similar components — delivering clear views of features down to approximately 40 µm stand-off that are otherwise difficult to visualize from top-down optics.

Available in multiple optical options, this lens is ideal as a replacement or supplementary objective for high-resolution inspection systems such as the Inspectis BGA ProX and BGA Basics setups.

Specifications

• Part Numbers: BGA-004 (Standard), BGA-004-XM (Extended Magnification)

• Magnification (Standard Lens): ~36× – 300× on a 28″ monitor (on-screen)

• Working Distance (Standard): ~0.5 – 100 mm focusing range

• Field of View (Standard): ~2 – 16.5 mm

• Magnification (XM Option): ~55× – 370× on a 28″ monitor

• Working Distance (XM): ~0.3 – 20 mm focusing range

• Field of View (XM): ~1.6 – 11 mm

• Required Free Working Area: ~1.0 mm

• Manufactured: Sweden

• Warranty: 2-year limited manufacturer warranty

• Return Policy: This item is non-returnable

• Delivery Lead Time: Typically ~3–4 weeks

Features & Benefits

• 90º Side-View Design: Enables imaging of hidden solder joints and underside surfaces that cannot be seen with standard top-view lenses — critical for BGA and other chip component analysis.

• Two Lens Options: Choose standard or extended magnification depending on required detail levels and working distance.

• Wide Working Range: Flexible focusing range supports inspection from close stand-off to extended distances.

• High-Quality Swedish Optics: Designed and manufactured for industrial inspection environments.

• Ideal for BGA Systems: Works as a replacement or supplemental lens for Inspectis BGA optical inspection systems.
