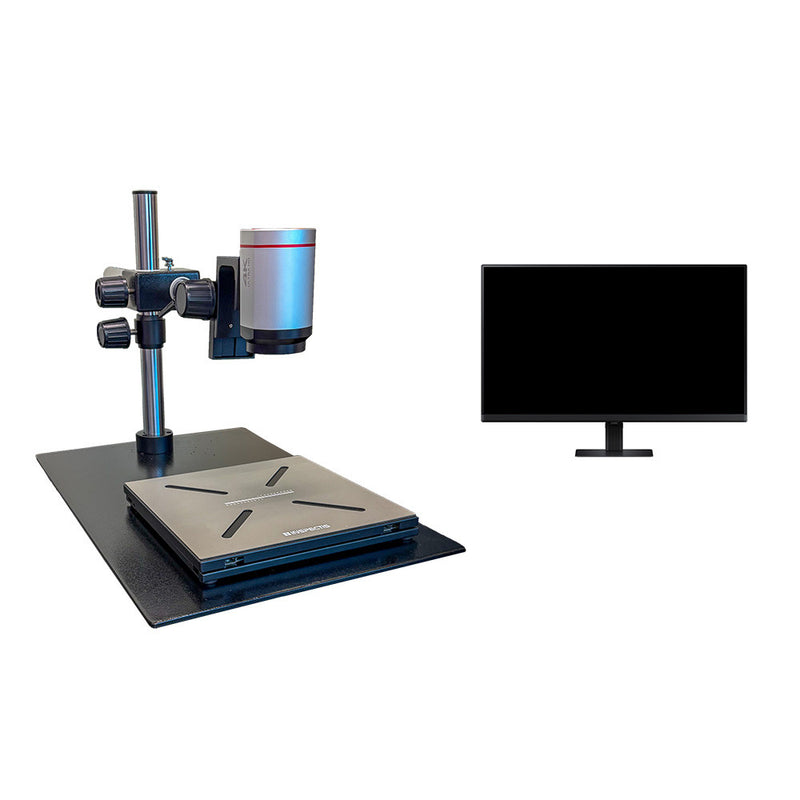

The Inspectis Microscope F30s Digital Boom Microscope with 27″ Monitor, Software & Computer is a complete industrial‑grade inspection solution that combines the F30s HD digital microscope with a single‑arm boom stand, integrated computer workstation, Inspectis ProX software, and a 27″ UHD HD monitor for detailed viewing, capture, and analysis. Designed and manufactured in Sweden, this turnkey system is ideal for electronics inspection, manufacturing quality control, materials analysis, and precision documentation workflows.

Built around a 30:1 motorized zoom lens with autofocus, iris control, and pre‑calibrated optics, the F30s system delivers smooth control across a wide magnification range. The included ProX software provides advanced imaging capabilities such as DXF/CAD overlay on live images, manual and auto focus stacking, time‑lapse video recording, edge detection with DXF export, and automatic alignment of overlaid images.

Specifications

• Part Number / SKU: F30s‑ESD‑SABS‑MON27

• Video Output: FHD 1080p @ 60 fps, switchable to 1080p @ 50 fps by remote control.

• Imager: 2 MP progressive scan sensor (1920 × 1080)

• Lens: High‑resolution 30:1 motorized zoom with autofocus, iris control, and pre‑calibrated optics.

• Working Distance: ~230 mm

• Onboard Controls: Iris, zoom, autofocus on/off, white balance.

• Stand: Single‑arm boom stand with 400 mm vertical column; ESD‑protected base.

• Computer: Includes a workstation with i5 CPU, 16 GB RAM, 512 GB SSD and Inspectis ProX software pre‑installed.

• Monitor: 27″ UHD HD display for high‑clarity inspection viewing.

• Capture Device: USB image and video capture device for recording and storing data.

• Illumination: LED ring light with diffuser.

• Environmental Protection: Hermetically sealed camera housing with built‑in ESD protection.

• Manufactured: Sweden

• Return Policy: This item is non‑returnable.

Features & Benefits

• Wide Zoom Range: Motorized 30:1 zoom delivers detailed imaging across a broad range of magnifications.

• Comprehensive Software: Inspectis ProX software enables advanced workflows including DXF/CAD overlay, focus stacking, time‑lapse, optical edge detection, and automated alignment of live images and overlays.

• Large Ultra‑HD Monitor: 27″ UHD display allows operators to view inspection images clearly and comfortably, enhancing detail visibility and collaboration.

• Industrial‑Grade Construction: Rugged aluminum housing and ESD protection make this system suitable for industrial and lab environments.

• Integrated Workstation: Includes computer and software, providing a turnkey solution out of the box.

• Record & Document: USB capture device simplifies saving still images and videos for reporting and traceability.
