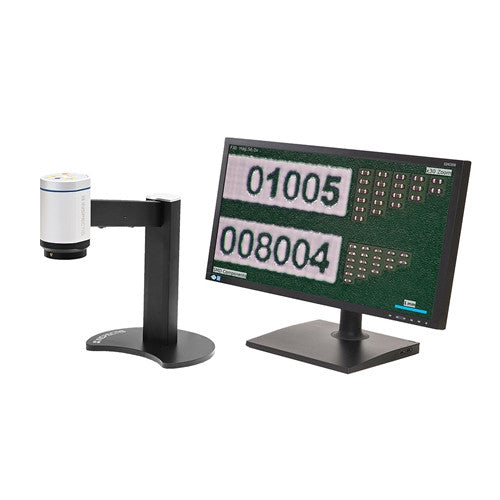

The Inspectis Microscope F30s HD Basics Software All‑In‑One System is a complete digital microscope solution that combines the F30s HD inspection microscope with a 21″ Full HD monitor, computer, USB image capture device, and Inspectis Basics Software — all integrated on a sturdy industrial‑grade aluminum stand. This turnkey setup is ideal for quality control, electronics inspection, surface evaluation, and general laboratory imaging workflows.

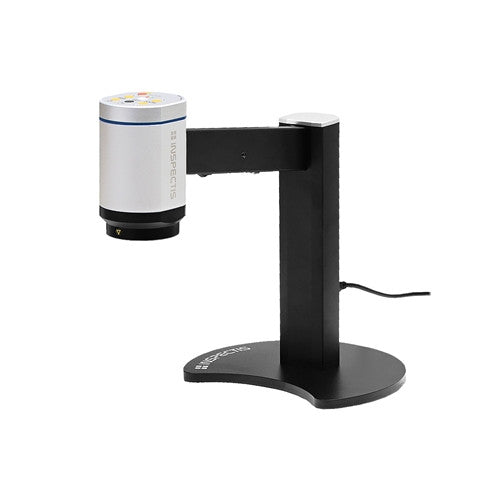

The F30s HD features a 30:1 motorized zoom lens with auto‑focus, iris control, and pre‑calibrated optics for consistent imaging performance throughout the magnification range. The included software provides easy‑to‑use tools for live imaging, capturing still images and video, annotation, calibrated measurement, and more.

Specifications

• Video Output: Full HD 1080p @ 60 fps, switchable to 1080p @ 50 fps via remote control panel

• Imager: 3.2 MP progressive scan sensor (1920 × 1080)

• Motorized Lens: 30:1 zoom with auto focus, iris control, pre‑calibrated optics

• Working Distance: ~230 mm

• Onboard Controls: Iris, zoom, auto focus on/off, white balance

• Capture Device: Full HD HDMI + USB3.0 image and video capture

• Monitor & Computer: Includes 21″ HD monitor with 1920 × 1080 resolution and compatible workstation

• Illumination Options:

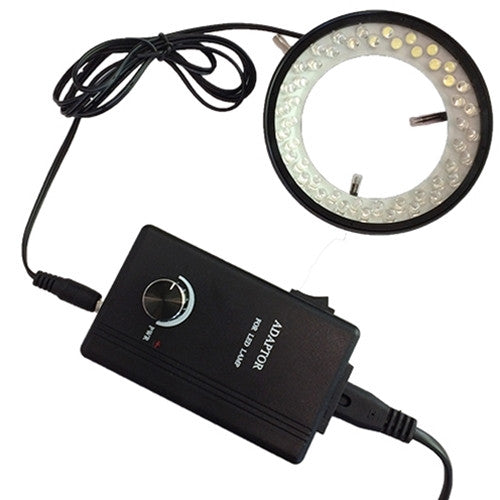

  • LED Ring Light — 48 cool LEDs with variable intensity (35,000 LUX)

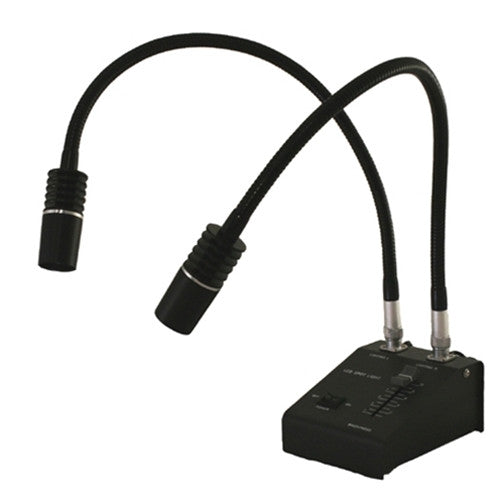

  • LED Dual Pipe Lights — dual 3 W LEDs with variable intensity

• Stand: Industrial all‑aluminum integrated stand

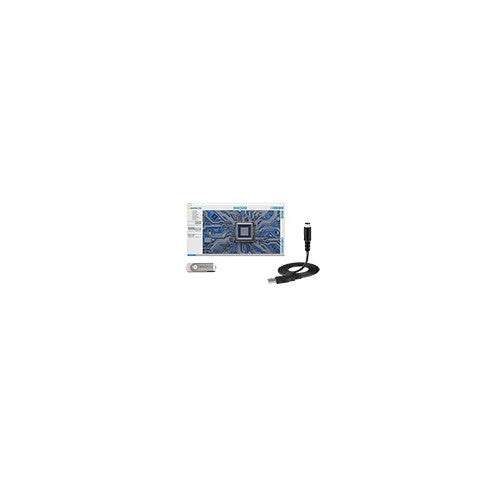

• Software: Inspectis Basics Software — live view, capture, measurement, annotation, presets, and more

• Return Policy: This item is not returnable

• Manufactured: Sweden

• Delivery: Contact for lead time and quote (typically ~3–4 weeks)

Features & Benefits

• Complete Turnkey System: Combines microscope, monitor, computer, capture device, and software in one integrated package — ready to use out of the box.

• High‑Resolution HD Imaging: Full HD sensor and 30:1 motorized zoom deliver detailed, clear images across a wide magnification range.

• Powerful Basics Software: Inspectis Basics provides tools for live viewing, image/video capture, calibrated measurement, annotation, distortion correction, and more.

• Flexible Illumination Options: Choose between a bright LED ring or dual LED pipes to suit different sample types and inspection tasks.

• Rugged Industrial Design: Durable stand and sealed camera housing with ESD protection ensure reliable operation in demanding work environments.

• Expandability: Optional remote controls and foot switches can be added for hands‑free operation.

SKU: F30-Basics-LEDR/ F30-Basics-LDG
