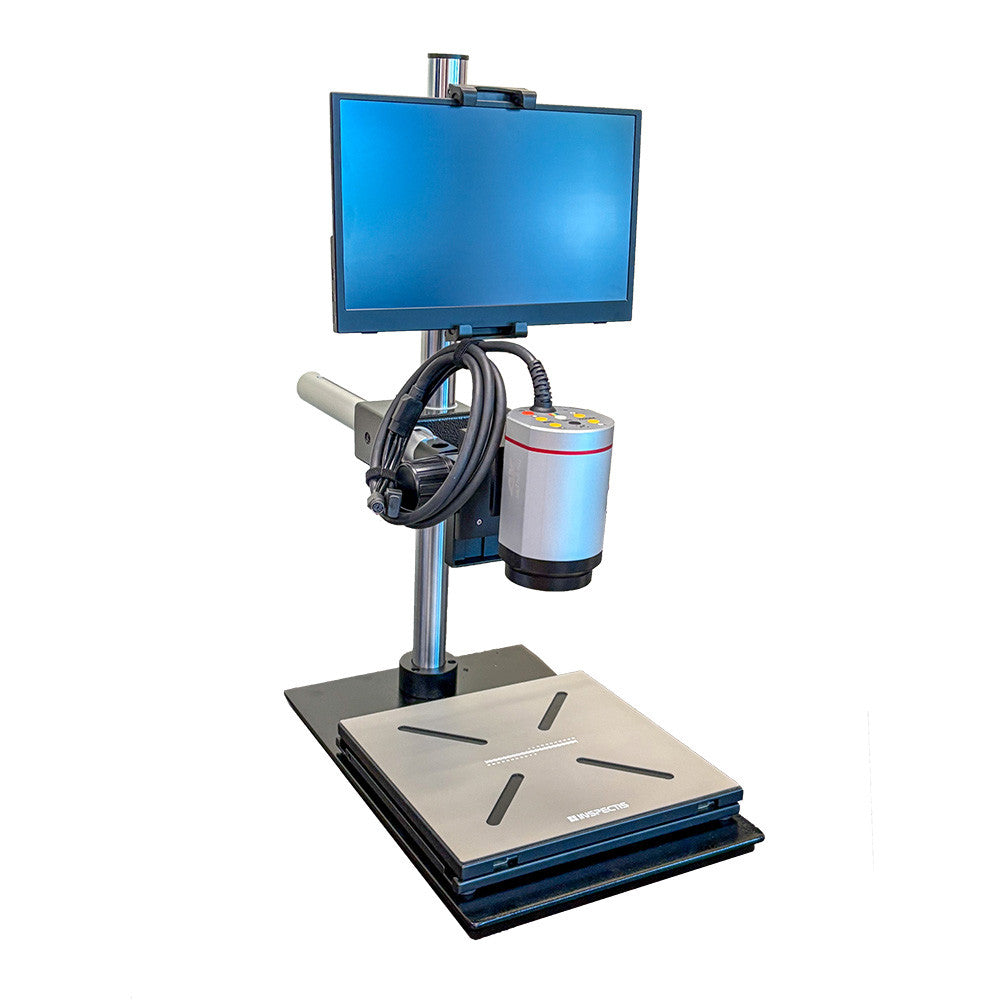

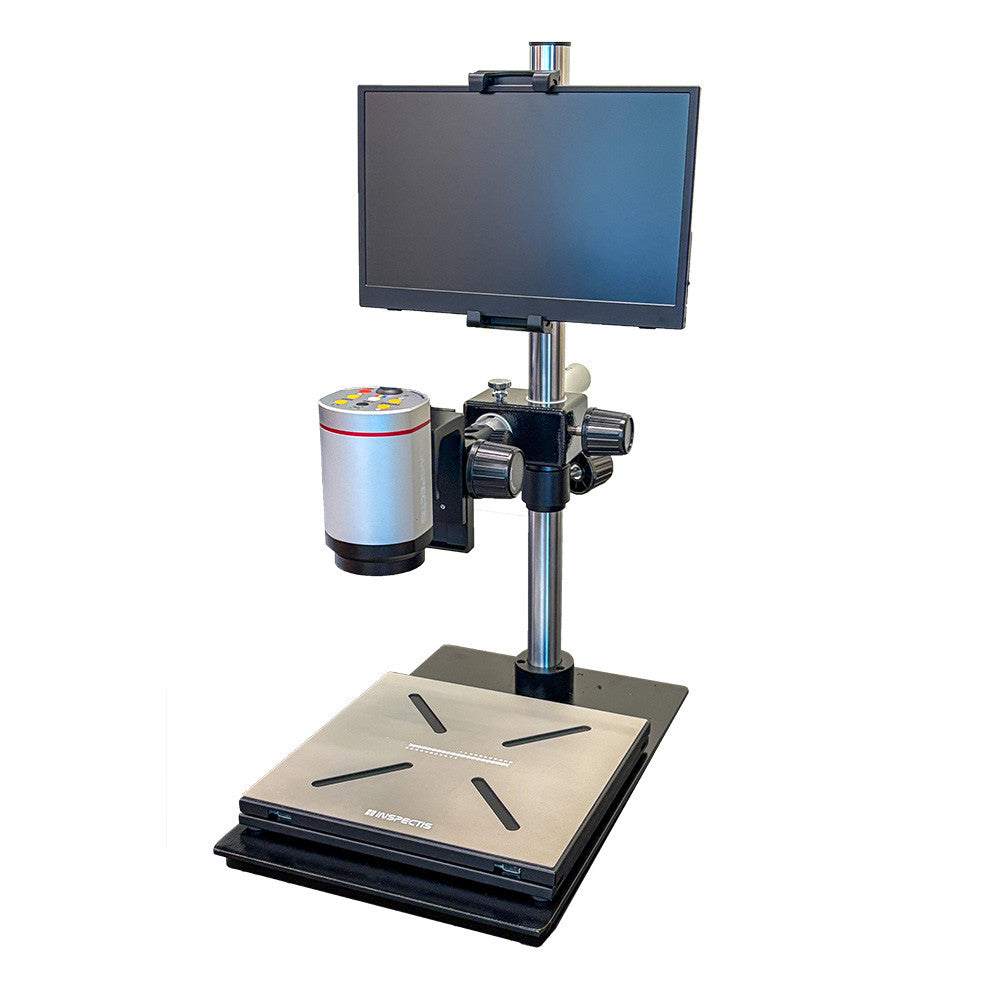

The Inspectis Microscope F30s HD Boom Digital Microscope System combines a high-performance full HD microscope, a 30:1 motorized zoom lens, built-in illumination, and an integrated boom-style stand — delivering a versatile solution for detailed inspection, quality control, and documentation workflows. This complete boom microscope package includes a 13″ HD monitor, polarization illumination, a USB capture device, and a rugged industrial-grade aluminum housing designed for demanding inspection environments.

Designed and manufactured in Sweden, the F30s HD system offers precise optics, smooth motorized zoom, and reliable imaging performance that make it well suited for electronics, materials, industrial quality control, and laboratory use.

Specifications

• Part Number / SKU: F30s-ESD-SABS-LWD-HD

• Video Output: Full HD 1080p @ 60 fps (switchable to 50 fps via remote)

• Imager: 2 MP progressive scan sensor (1920 × 1080)

• Lens: Motorized 30:1 zoom with auto-focus, iris control, and pre-calibrated optics

• Working Distance: Approx. 230 mm

• Illumination: LED ring light with diffuser and polarization set

• Monitor: 13″ HD monitor, directly mounted to the boom post

• Stand: Single-arm boom stand with ~650 mm (25.5″) vertical column on ESD-protected base

• Capture: USB image/video capture device included

• Onboard Controls: Iris, zoom, auto focus on/off, white balance

• Environmental Protection: Hermetically sealed camera housing with built-in ESD protection

• Input/Output: HDMI video output; 5P MiniDin power in; 8P MiniDin control communications

• Return Policy: Non-returnable (standard for system products)

• Manufactured: Sweden

Features & Benefits

• 30:1 Motorized Zoom: Extends from wide overview to detailed inspection with smooth electronic control.

• Full HD Imaging: 1080p video output with crisp, clear imaging for defect analysis and documentation.

• Polarized Illumination: Integrated LED ring light with polarization reduces glare and highlights surface features.

• Boom Stand Design: Offers flexible positioning around workstations and assemblies, especially useful for larger or irregular workpieces.

• Integrated Monitor: 13″ HD display shows real-time inspection results directly at the workstation.

• Rugged Industrial Build: Sealed camera housing and ESD-protected base make this system suitable for electronics and industrial environments.
