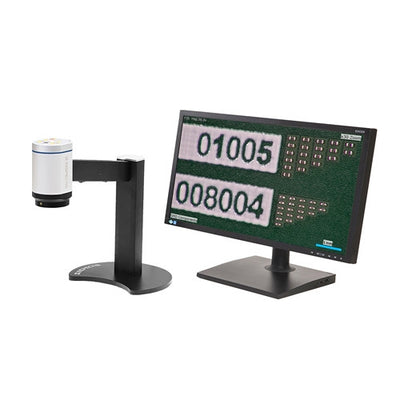

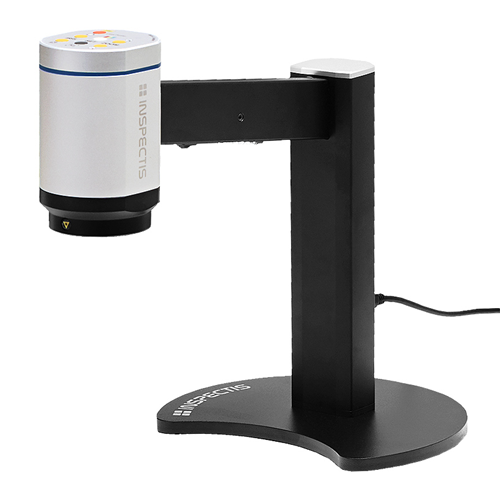

The Inspectis Microscope F30s HD Direct‑to‑Monitor All‑In‑One System is a complete plug‑and‑play digital inspection solution centered on the F30s HD digital microscope with a 30:1 motorized zoom lens in a rugged industrial aluminum housing. Designed for straightforward optical inspection workflows, this system pairs integrated camera and lens controls with a 21″ Full HD monitor and a USB image/video capture device — no separate PC or software setup required. Perfect for electronics inspection, quality control, surface examination, and documentation workflows.

This all‑in‑one configuration delivers a reliable imaging platform with flexible magnification, durable construction, and convenient recording capabilities, making it an efficient choice for industrial and laboratory environments.

Specifications

• Video Output: Full HD 1080p @ 60 fps, switchable to 1080p @ 50 fps via remote control panel

• Imager: 3.2 MP progressive scan CMOS (1920 × 1080)

• Lens: Motorized 30:1 zoom with autofocus, iris control, and pre‑calibrated optics

• Working Distance: ~230 mm

• On‑board Controls: Iris, zoom, autofocus on/off, white balance (remote or optional foot switch available)

• Capture Device: USB image/video capture for recording and storing files

• Illumination Options:

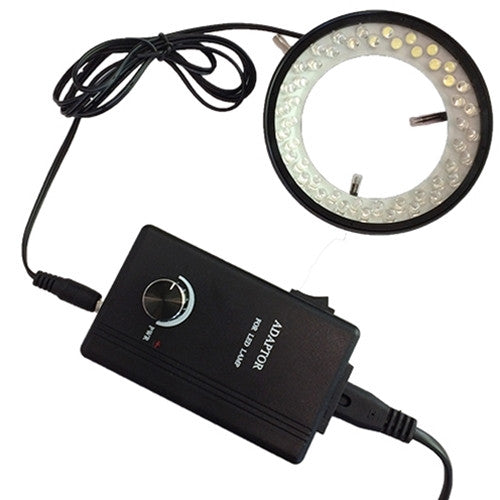

  • LED Ring Light: Variable intensity with 48 cool LEDs and up to ~35,000 LUX

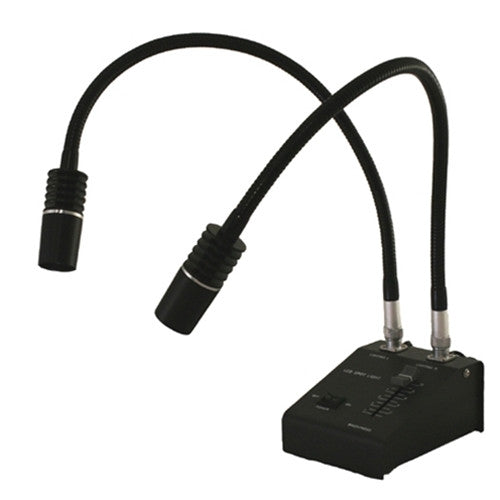

  • LED Dual Pipe Light: Two 3 W LED pipe lights (24″) with variable intensity

• Stand: Integrated rigid aluminum stand

• Monitor: 21″ Full HD display (1920 × 1080)

• I/O Interfaces: HDMI video output, 5P MiniDin power, 8P MiniDin communication

• Environmental Protection: Hermetically sealed camera housing with built‑in ESD protection

• Manufactured: Sweden

• Return Policy: This item is non‑returnable

Features & Benefits

• All‑In‑One Plug‑and‑Play: Integrated monitor and capture hardware eliminate the need for additional PCs or external software.

• High‑Quality Imaging: 30:1 motorized zoom and 3.2 MP sensor deliver crisp, detailed Full HD imagery for inspection and documentation.

• Flexible Lighting: Multiple illumination options let you tailor lighting to sample type and surface characteristics.

• USB Recording: Capture stills and video easily for traceability, reporting, and defect analysis.

• Durable Build: Industrial aluminum housing with ESD protection ensures performance in demanding environments.

• Simple Control: On‑board controls and optional peripherals (remote, foot switch) enable hands‑free operation and workflow flexibility.

SKU: F30-DTM-LEDR/ F30-DTM-LDG
