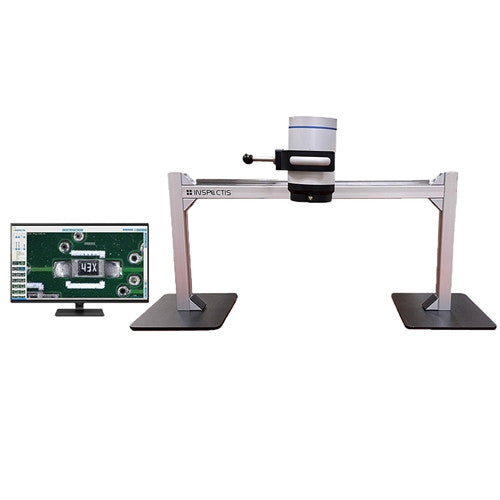

The Inspectis Microscope F30s HD Overlay Assisted Inspection Gantry System is a professional industrial inspection solution that brings together the F30s HD digital microscope with a 30:1 motorized zoom lens, an industrial XY travel gantry stand, a 21″ HD monitor, a computer workstation, and advanced Overlay Assisted Inspection (OAI) software — all tailored for demanding quality control, comparison workflows, and precision inspection tasks.

This system features Inspectis OAI Software, which not only supports live imaging and capture but also enables automatic alignment and rescaling of overlaid images, PNG overlay on live images as digital graticules, edge detection with DXF export, and time-interval overlay assisted inspections — providing enhanced visual guidance and comparison capabilities for inspectors, engineers, and quality professionals.

Designed and manufactured in Sweden, this turnkey gantry system is ideal for electronics inspection, surface analysis, documentation workflows, and assembly verification in industrial environments.

Specifications

• Video Output: Full HD 1080p @ 60 fps (switchable to 1080p @ 50 fps via remote control).

• Imager: 3.2 MP progressive scan CMOS sensor (1920 × 1080).

• Working Distance: ~230 mm.

• Lens: High-resolution 30:1 motorized zoom with autofocus, iris control, and pre-calibrated optics.

• Camera & Lens Control: Iris, zoom, autofocus on/off, white balance; optional foot switch and advanced remote control available.

• Environmental Protection: Hermetically sealed camera housing with built-in ESD protection.

• Capture Device: USB image/video capture device for recording and storage.

• Illumination: Inspectis white LED ring light with adjustable diffuser for smooth, even lighting.

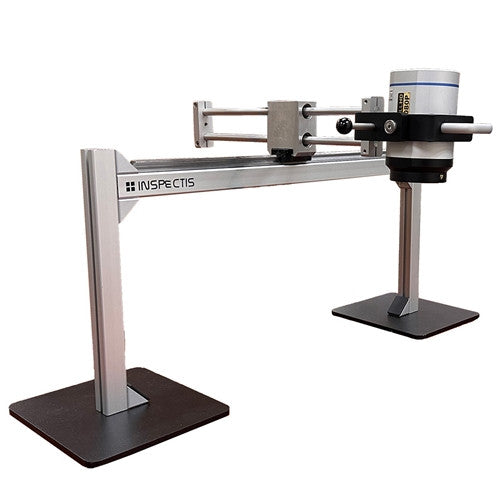

• Stand: Industrial grade XY travel table-top gantry available in:

  • Standard: X travel 100 mm–750 mm / Y travel 100 mm–550 mm

  • Long range Y: X travel 100 mm–750 mm / Y travel 551 mm–800 mm

  • Optional 4-direction tilt attachment available.

• Monitor & Computer: 21″ HD monitor (1920 × 1080) with computer.

• Software: Inspectis OAI (Overlay Assisted Inspection) Software — includes automatic alignment, PNG overlay, edge detection with DXF export, DXF import/edit/export, and time interval overlay features.

• I/O: HDMI video output; 5P MiniDin power input; 8P MiniDin for communication.

• Manufactured: Sweden.

• Return Policy: This item is not returnable.

Features & Benefits

• Motorized 30:1 Zoom Optics: Smooth, precise zoom range with autofocus and iris control for detailed inspection.

• Overlay Assisted Inspection Software: OAI Software supports overlays of reference images, automatic alignment, edge detection with export, and time-interval comparison — enhancing visual inspection workflows.

• Industrial Gantry Stand: Stable XY travel platform with flexible travel options and optional tilt — supports large samples and repeatable inspection workflows.

• Integrated Imaging Workstation: Includes computer and HD monitor for real-time viewing, capture, reporting, and analysis.

• Reliable Capture & Storage: USB image & video capture device makes documentation easier without needing a separate PC.

• ESD & Environment Protection: Sealed camera housing and built-in ESD protection help maintain system longevity in industrial settings.

SKU: F30-OAI-GTY-STD/ F30-OAI-GTY-LYR
