The Inspectis Microscope F30s HD Pro Metrology Gantry System is a high-performance industrial inspection platform built around the Inspectis F30s HD digital microscope with a 30:1 motorized zoom lens mounted on a robust industrial-grade XY travel gantry stand. Ideal for demanding quality control, manufacturing inspection, and precision metrology workflows, this turnkey system combines optical precision with advanced software tools to help you capture, measure, report, and analyze features with confidence.

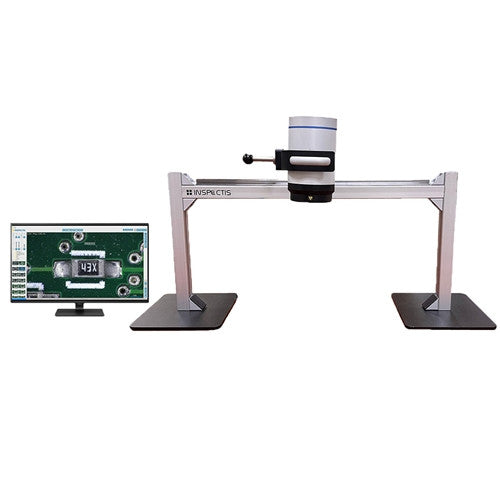

Equipped with a 21″ HD monitor, workstation computer, Capture device (HDMI/USB3.0), and Inspectis Pro Software, this gantry-based microscope system provides extensive measurement capabilities, semi-transparent live-image overlay, and 2D scaled overlays — enhancing both visual inspection and quantitative analysis in industrial environments.

Specifications

• Part Number / SKU: F30-PROMET-GTY-STD

• Video Output: Full HD 1080p @ 60fps, switchable to 1080p @ 50fps (remote control)

• Imager: 3.2 MP Full HD progressive CMOS (1920 × 1080)

• Working Distance: ~230 mm

• Lens: High-resolution 30:1 motorized zoom with autofocus, iris, pre-calibrated optics

• Camera & Lens Controls: Iris, zoom, autofocus (on/off), white balance; optional foot switch & advanced remote available

• Illumination: White LED ring light with 8 high-power LEDs and detachable diffuser

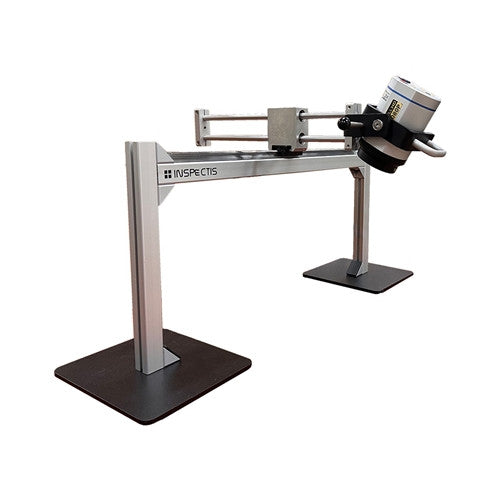

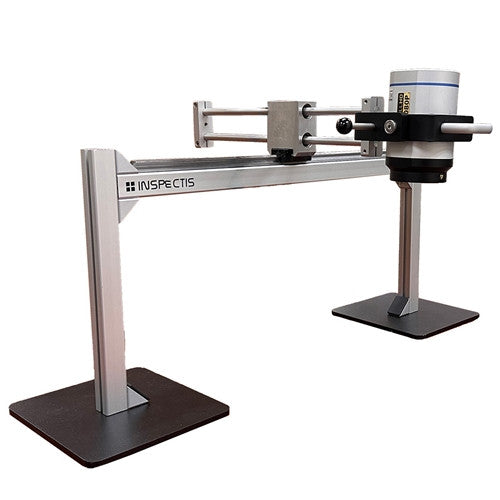

• Stand: Industrial XY travel gantry with selectable configurations:
  • Standard: X travel 100–750 mm / Y travel 100–550 mm
  • Long-range Y: X travel 100–750 mm / Y travel 551–800 mm

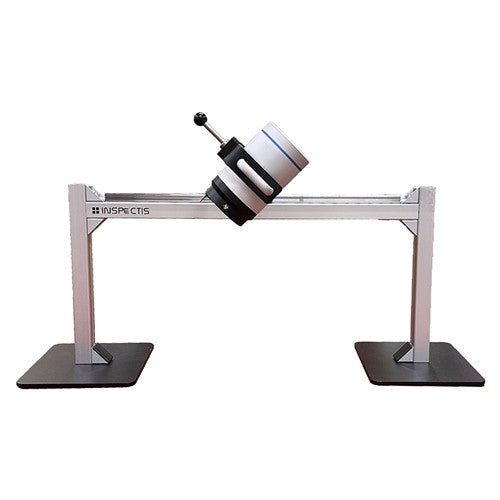

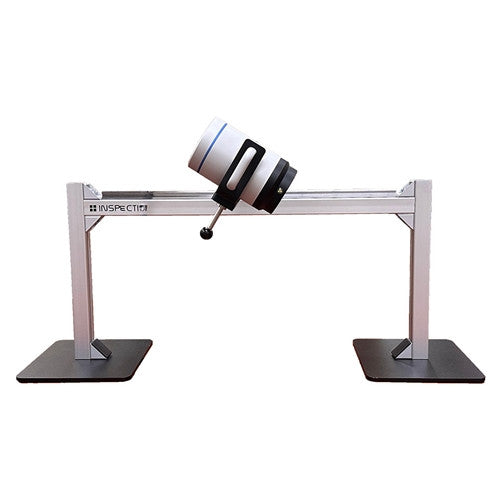

  • Optional 4-direction tilt for ±30° angled viewing

• Software: Inspectis Pro Software (advanced measurement, overlays, report generation, export tools)

• Computer & Monitor: Includes computer with 21″ HD monitor (1920 × 1080)

• Capture Device: USB3.0/HDMI image & video capture for recording and storage

• Environmental Protection: Hermetically sealed camera housing with built-in ESD protection

• Manufactured: Sweden

• Return Policy: Non-returnable

Features & Benefits

• Advanced Measurement Tools: Inspectis Pro Software supports free-form area, length, perimeter, circle, curve, angle, polygon, and other metrology tools.

• Overlay Capabilities: Overlay 2D scales or semi-transparent images on the live view for enhanced comparative inspection.

• Industrial Gantry Stand: Smooth XY travel and optional tilt give precise control over large or irregular samples.

• High-Quality Optics & Illumination: 30:1 motorized zoom with LED lighting delivers clear, consistent imaging across a wide magnification range.

• Professional Imaging Workstation: Large HD display and capture interface support documentation, reporting, and collaboration.
