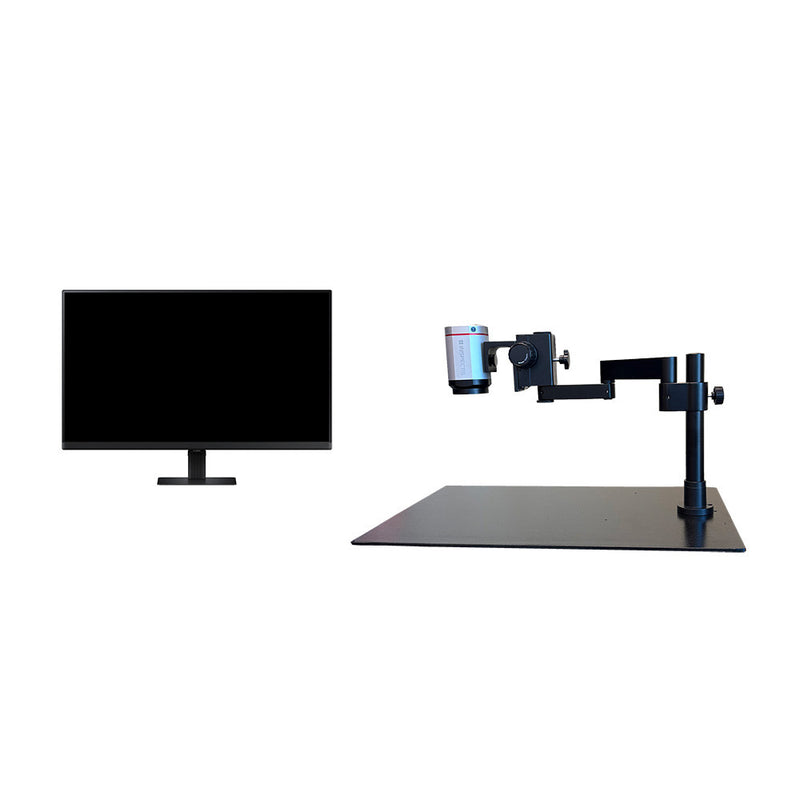

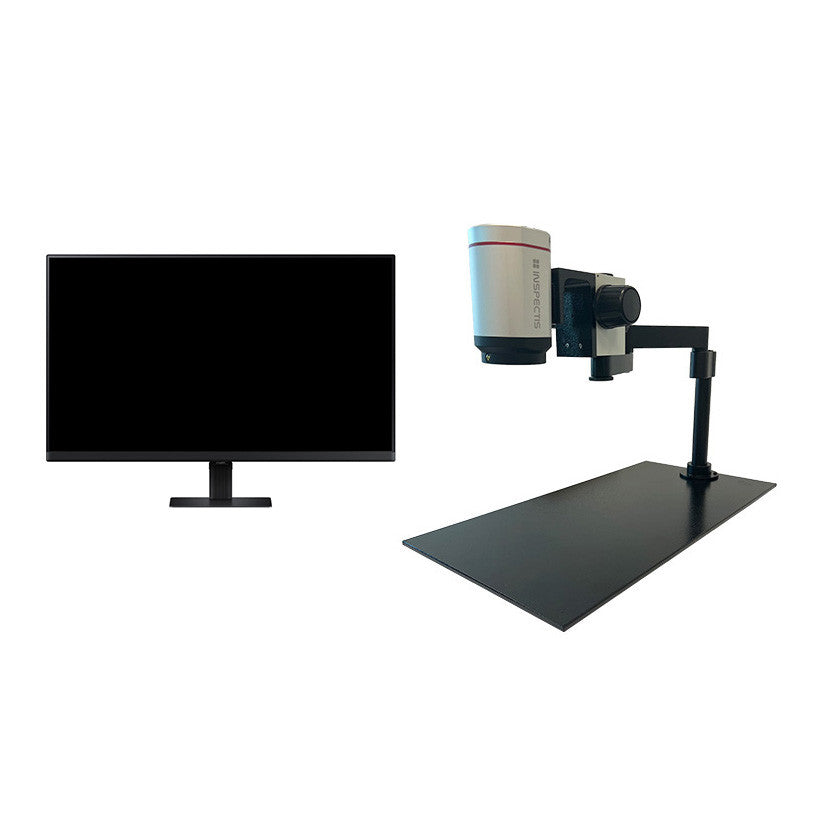

The Inspectis Microscope F30s HD Swing Arm Digital Microscope with 27″ Monitor is a professional digital inspection system designed for industrial and quality control environments. This system combines the F30s HD digital microscope with a flexible swing arm stand and a 27″ UHD monitor, providing versatile positioning and a large, high-clarity display for detailed optical inspection and documentation workflows.

Built around a 30:1 motorized zoom lens with auto-focus, iris control, and pre-calibrated optics, the F30s delivers accurate imaging across a wide range of inspection tasks. The swing arm stand enhances operator ergonomics and reach, while the included USB image/video capture device simplifies saving results for reporting, traceability, and analysis.

Specifications

• Part Number / SKU: F30s-ESD-SWA-MON27

• Video Output: Full HD 1080p at 60 fps (switchable to 1080p at 50 fps)

• Imager: 2 MP progressive scan CMOS (1920 × 1080)

• Lens: 30:1 motorized zoom range with auto-focus, iris control, and pre-calibrated optics

• Working Distance: ~230 mm

• Onboard Controls: Iris, zoom, autofocus on/off, white balance

• Capture Device: Includes USB image and video capture device for recording and storing media

• Illumination: LED ring light with diffuser

• Stand: Swing arm stand with 260 mm (10.2″) vertical column and 400 mm (15.7″) horizontal reach; ESD-protected base (300 × 450 mm)

• Monitor: 27″ UHD monitor included

• I/O: HDMI video output, 5P MiniDin power input, 8P MiniDin communication

• Manufactured: Sweden

• Return Policy: This item is not returnable

Features & Benefits

• Flexible Swing Arm Positioning: Adjustable swing arm stand allows you to reach and inspect various sample locations with ease.

• 30:1 Motorized Zoom: Smooth, controlled zoom with auto-focus and iris adjustments expands inspection versatility.

• Large 27″ Monitor: High-definition monitor delivers clear, detailed live images — ideal for collaborative inspection and evaluation.

• USB Capture Support: Built-in USB image/video capture simplifies documentation and reporting workflows.

• Industrial-Grade Build: Hermetically sealed camera housing with ESD protection ensures reliability in industrial and production environments.

• Versatile Inspection: Suitable for electronics, PCB inspection, surface analysis, and general quality control tasks.
