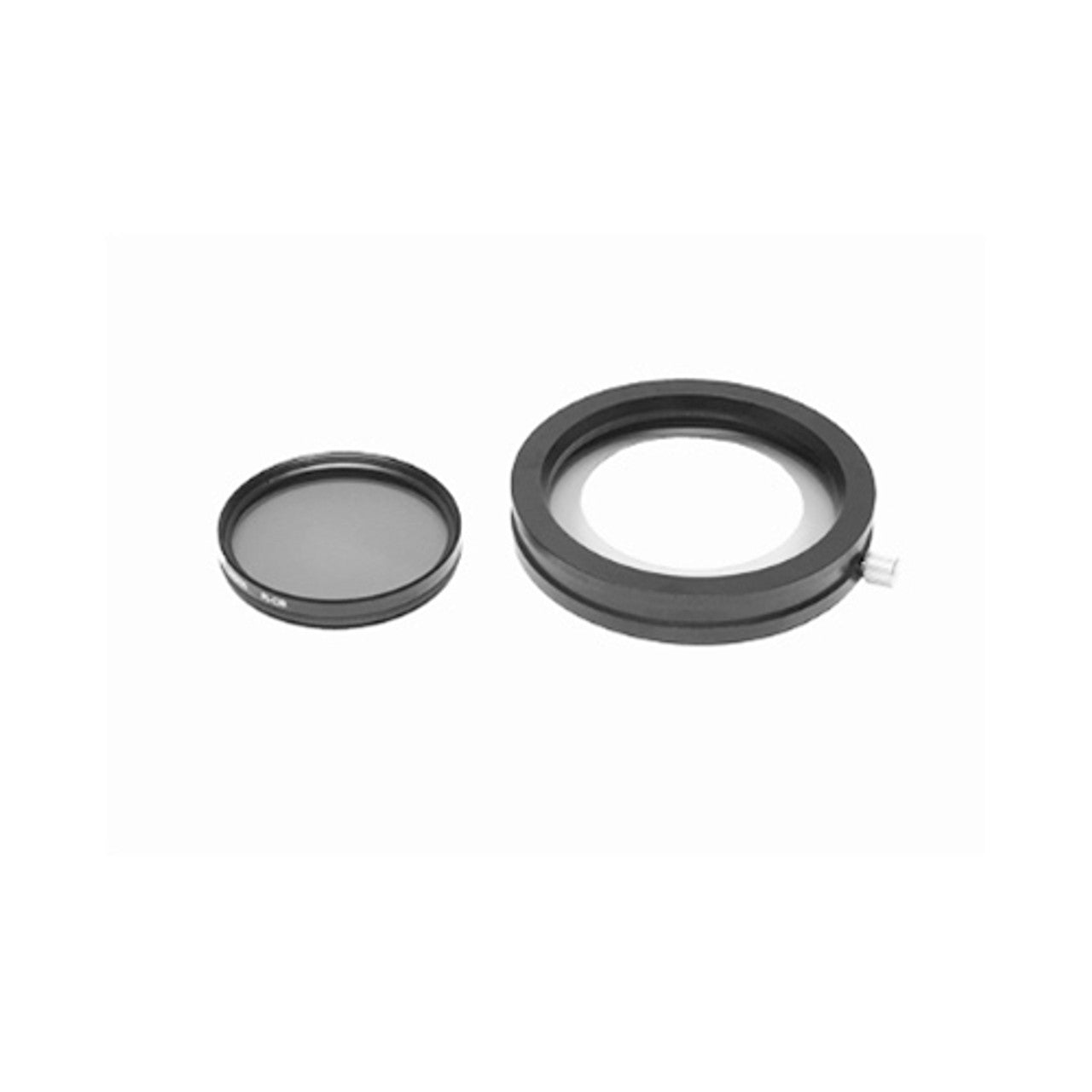

The Inspectis Microscope Polarizing Set for Ring Light (HD‑024‑P‑U) is a precision optical accessory designed to reduce glare and reflections when using the Inspectis White LED Ring Light with your digital microscope inspection system. This set includes two rotary linear polarizing filters — one for polarizing incident light and the other for analyzing the light forming the image — helping to reveal fine surface details on highly reflective materials such as solder joints, polymers, crystals, plant structures, and more.

Crafted with high optical quality and manufactured in Sweden, this polarizing set enhances contrast and improves inspection clarity under ring illumination. It is ideal for industrial quality control, electronics inspection, materials analysis, and laboratory imaging workflows.

Specifications

• Part Number: HD‑024‑P‑U

• Purpose: Reduces glare/reflections under ring light illumination

• Included: Two rotary linear polarizing filters — polarizer and analyzer

• Optical Performance:

  • Extinction Ratio: ~1000:1 (450–675 nm)

  • Transmission: Single ~38 %, Parallel ~25 %, Crossed ~0.04 %

• Size / Weight: Ø120 mm × 16 mm (130 g)

• Compatibility: Designed for Inspectis White LED Ring Light

• Return Policy: Non‑returnable

• Warranty: 2‑year limited manufacturer warranty

• Delivery: Typically 3–4 weeks

Features & Benefits

• Glare Reduction: Significantly reduces surface glare on shiny or reflective samples, making fine features easier to inspect.

• Contrast Enhancement: Helps enhance visual contrast under ring light illumination for clearer imaging results.

• Dual Filters: Includes both polarizer and analyzer to control both incident light and image‑forming light.

• Optimized for Ring Light: Designed specifically for use with the Inspectis White LED Ring Light.

• Industrial & Lab‑Grade: Ideal for electronics, materials science, biological structures, and polymer inspection workflows.
