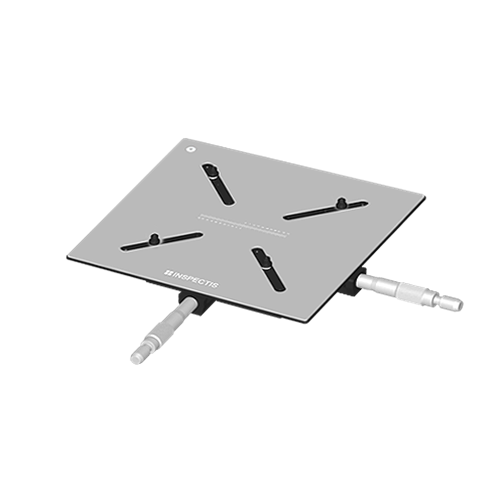

The Inspectis Microscope Precision XY Stage 50×50 mm Travel (HD-184) is a high-precision mechanical stage designed to provide accurate lateral movement for inspection tasks under digital and optical microscopes. With micrometer screw drives and a 50 × 50 mm travel range, this stage enables controlled, repeatable translations of small samples for detailed examination — ideal for electronics inspection, PCB positioning, quality control, and metrology applications.

The stage surface is finished with a high-friction antistatic mat to secure your specimens in place, and a ground (GND) connection point is provided for ESD safety. Four slots allow attachment of magnetic pegs or other hold-downs to further secure boards, packages, and fixtures. Built in Sweden to industrial standards, this stage is a robust accessory for professional inspection setups.

Specifications

• Part Number / SKU: HD-184

• XY Travel Range: 50 mm × 50 mm lateral movement

• Drive: Precision micrometer screw drives for controlled adjustments

• Surface: High-friction antistatic mat to keep samples positioned during inspection

• ESD Protection: Ground (GND) connection point provided; stage surface protects against electrostatic discharge

• Slots: Four mounting slots for magnetic pegs or custom fixtures

• Manufactured: Sweden

• Return Policy: This item is non-returnable

• Delivery: Typically 3–4 weeks lead time

Features & Benefits

• Precision Lateral Control: Smooth and accurate XY motion using micrometer screw drives — ideal for repeatable positioning and fine adjustments during inspection tasks.

• Secure Sample Handling: High-friction, antistatic stage surface helps keep PCBs, components, and specimens in place without slipping.

• ESD-Protected Surface: Ground connection point provided for safe use in electronics and ESD-sensitive environments.

• Magnetic Peg Compatibility: Four slots allow attachment of magnetic pegs (included or optional) to hold samples, jigs, or fixtures.

• Industrial-Grade Build: Manufactured in Sweden and engineered for durability and precision in professional inspection workflows.
