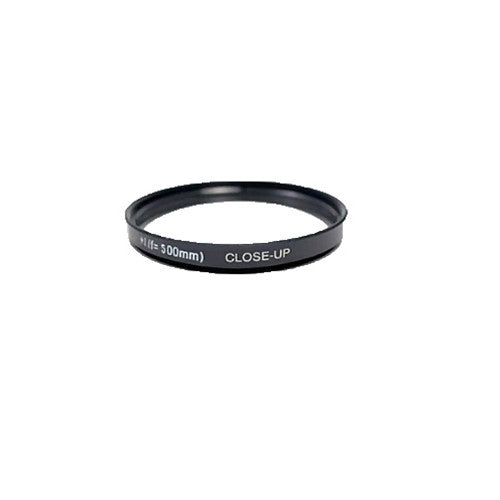

The Inspectis Microscope Single Element Macro Lens series are accessory lenses designed to increase the overall magnification of Inspectis inspection microscope systems (such as the F30s, F35s, and U30s). Available in +1 diopter and +2 diopter optical powers, these single‑element macro lenses enhance detail and magnification for a range of inspection tasks, from general sample viewing to more detailed surface analysis.

Each lens provides a distinct magnification increase while preserving working distance and imaging performance. These macro lenses are ideal for industrial quality control, electronics inspection, precision measurement, and laboratory imaging applications where extended magnification is beneficial. Manufactured in Sweden and backed by a 2‑year limited warranty, this product is a practical add‑on for Inspectis digital microscopes.

Specifications

• Lens Type: Single element macro diopter lens

• Diopter Options: +1 and +2 for moderate magnification increase

• Compatibility: Inspectis F30s, F35s, and U30s microscope systems

• Magnification Examples:

  • +1 Diopter at 1× zoom: ~2.1× on a 28″ monitor

  • +1 Diopter at 30× zoom: ~75.4×

  • +2 Diopter at 1× zoom: ~3.1×

  • +2 Diopter at 30× zoom: ~88×

• Field of View & Working Distance: Varies with diopter and zoom settings

• Resolution Power: Up to ~80 Lp/mm depending on diopter

• Return Policy: Non‑returnable

• Warranty: 2‑year limited manufacturer warranty

• Delivery: ~3–4 weeks typical lead time

Features & Benefits

• Modular Magnification Options: Choose between +1 or +2 diopter lenses based on your required magnification range.

• Enhanced Detail: Extends the effective optical magnification of your Inspectis microscope for better visualization of small features.

• Maintained Working Distance: Designed to preserve working distances across zoom ranges.

• Industrial‑Grade: Manufactured to exacting standards in Sweden for reliable performance.

SKU: HD‑036/ HD‑037
