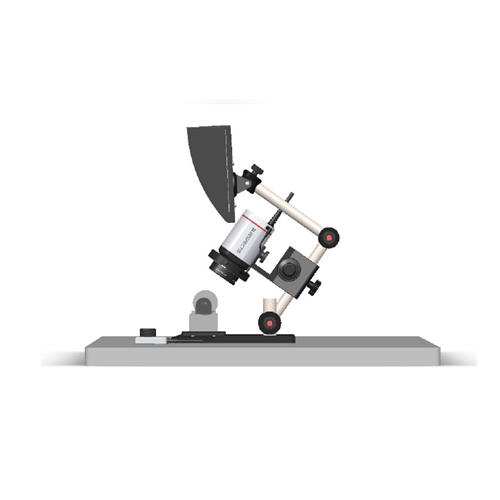

The Inspectis Microscope Stent Inspection System (U30-Stent) is an advanced optical inspection platform designed for precise medical device and stent evaluation. This turnkey system combines the high-resolution Inspectis U30 UHD-4K digital microscope with a slider stand offering up to a 60° viewing angle, integrated LED illumination, and a 15.6″ 4K monitor — providing exceptional clarity, control, and workflow efficiency for detailed inspection and documentation tasks.

Built for demanding environments where accuracy and repeatability are essential, the system includes fully motorized controls, robust optics, and flexible capture capabilities — making it ideal for quality assurance, medical device inspection, and precision metrology applications.

Specifications

• Part Number / SKU: U30-Stent

• Video Output: 4K Ultra HD 2160p @ 30 fps (switchable to FHD 1080p @ 60 fps)

• Imager: 8.5 MP progressive scan CMOS (3840 × 2160)

• Pixel Size: 1.62 µm × 1.62 µm

• Lens: 30:1 motorized zoom with autofocus, iris control, pre-calibrated optics, and automatic zoom tracking; includes +5 diopter macro lens

• Camera & Lens Control: Iris, zoom, autofocus On/Off, white balance; includes remote with seven programmable memory presets

• Environmental Protection: Hermetically sealed camera housing with built-in ESD protection

• Capture Device: USB image and video capture for recording and storage

• Illumination: Inspectis LED ring light with detachable diffuser

• Stand: Precision slider stand with up to 60° view angle, coarse/fine focusing, and precision slider

• Monitor: 15.6″ 4K UHD monitor with VESA mount and shading hood

• Inputs/Outputs: HDMI video output; 5P MiniDin power input; 8P MiniDin communication

• Manufactured in: Sweden

• Return Policy: Non-returnable

Features & Benefits

• Ultra-High Definition Imaging: 4K UHD resolution provides crisp, detailed images suitable for inspecting fine medical structures and stent geometry.

• Wide Motorized Zoom Range: 30:1 zoom lets operators navigate between overview and detailed views smoothly.

• Advanced Optics with Macro Support: Includes a +5 diopter macro lens for enhanced close-up visualization.

• Flexible Viewing Angle: Slider stand with up to 60° tilt allows ergonomic observation from various angles.

• Reliable Illumination: Integrated LED ring light with adjustable diffuser ensures uniform lighting.

• Comprehensive Image Capture: USB capture enables still image and video recording for documentation and analysis.

• Durable & Protected: Sealed camera housing and ESD-protected design ensure long-term system stability.
