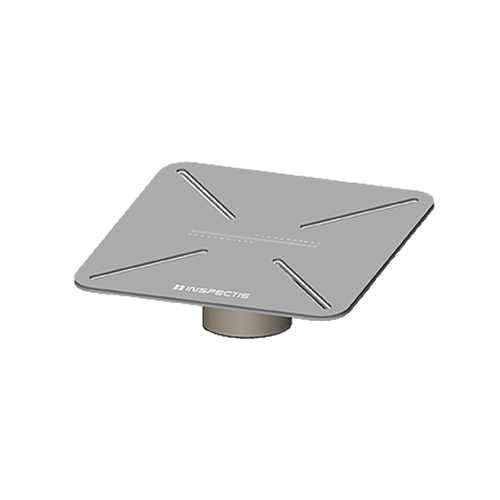

The Inspectis Microscope Tilt Board (HD‑029) is a precision sample positioning accessory designed for optical inspection workflows that require controlled angular adjustment. This board provides smooth tilting movement of inspection objects up to 30° in all directions, offering superior flexibility when viewing components, circuit boards, or irregular samples. The working surface is covered with a high‑friction antistatic mat that keeps samples securely in place during inspection. Four slots allow attachment of Inspectis Magnetic Pegs or custom fixtures to enhance sample stability and handling.

Made in Sweden with ESD‑protected materials and backed by reliable craftsmanship, the Tilt Board is suitable for industrial, laboratory, and metrology inspection tasks where precise angle adjustment improves visualization and measurement outcomes.

Specifications

• Maximum Tilt Angle: up to 30° in all directions

• Board Size: 220 × 220 mm

• Slot Width × Length: 3.1 × 90 mm

• Height: 66 mm

• Weight: ~1.2 kg

• Surface Protection: High‑friction antistatic mat

• ESD Protection: Yes

• Country of Origin: Sweden

• Part Number: HD‑029

• Return Policy: Non‑returnable item

• Delivery: Allow approximately 3–4 weeks

Features & Benefits

• Smooth Tilt Adjustment: Enables precise angular positioning up to 30°, improving sample viewing angles.

• Antistatic High‑Friction Surface: Keeps samples secure and reduces unwanted movement during inspection.

• Flexible Mounting Options: Four slots accommodate Inspectis Magnetic Pegs or custom fixtures.

• ESD Protection: Safeguards sensitive components and assemblies.

• Industrial Quality: Designed and manufactured in Sweden for durable use in inspection environments.
