The Inspectis Microscope U30s 4K Basics Software All‑In‑One System (U30‑Basics‑HD‑024‑B) is a premium digital microscope solution that combines the U30s 4K Ultra HD inspection microscope with a 27″ 4K monitor, computer, and Inspectis Basics Software for imaging, capture, annotation, and measurement. This turnkey system delivers high‑resolution imaging, powerful zoom range, and versatile optics control — making it ideal for industrial quality control, electronics inspection, precision measurement, and laboratory imaging workflows.

Designed and manufactured in Sweden, the system integrates a 30:1 motorized zoom lens with auto focus, iris control, and pre‑calibrated optics, along with multiple illumination options to suit varied inspection needs.

Specifications

• Video Output: 4K Ultra HD 2160p/30 fps, switchable to Full HD 1080p/60 fps

• Image Sensor: 8.5 MP Progressive Scan CMOS (3840 × 2160)

• Lens: Motorized 30:1 zoom with auto focus, iris control, and pre‑calibrated optics

• Monitor: 27″ 4K Ultra HD display

• Computer: Included workstation optimized for imaging and software control

• Software: Inspectis Basics Software (image view, capture, measurement, annotation, digital zoom, distortion correction, presets)

• Illumination Options:

  • White LED Ring Light with detachable diffuser

  • LED Dual Pipe light

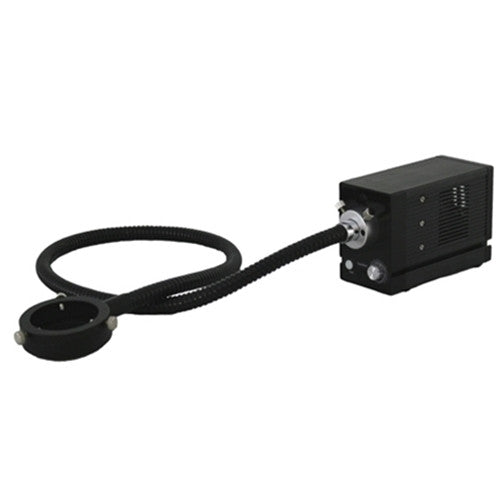

  • High Intensity LED Light Box with fiber ring

• Capture Device: Full‑HD HDMI/USB3.0 image capture interface

• Control: Camera/lens top controls + optional remote and foot control (sold separately)

• Return Policy: Non‑returnable

• Manufactured: Sweden

• Delivery: Typically ~3–4 weeks (quote available)

Features & Benefits

• Ultra 4K Resolution: Stunning 4K imaging with 8.5 MP sensor and motorized optics delivers exceptional clarity.

• Integrated System: Includes microscope head, monitor, and computer — a complete plug‑and‑play inspection platform.

• Powerful Software: Inspectis Basics Software supports capture, calibrated measurement, annotation, presets, and distortion correction.

• Flexible Illumination: Choose LED ring, pipe lights, or high‑intensity light box to suit sample type and inspection task.

• Advanced Optics: 30:1 motorized zoom with auto focus and iris control ensures precise viewing from low to high magnification.

• Industrial Design: Rugged aluminum housing and hermetically sealed camera protect against dust and contaminants.

SKU: U30‑Basics‑HD‑024‑B/ U30-Basics-LDG/ U30-Basics-MW153R
