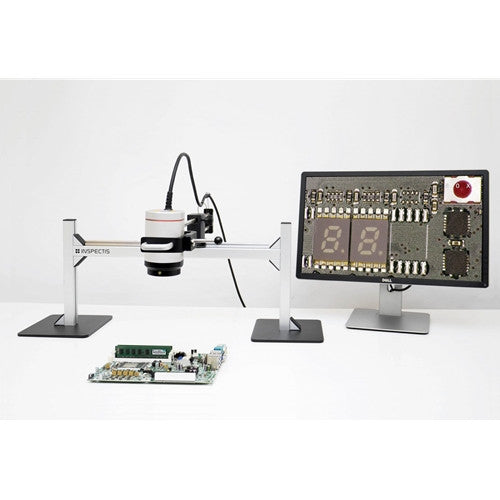

The Inspectis Microscope U30s 4K Basics Software Gantry System is a professional‑grade digital inspection platform built around the powerful U30s 4K Ultra HD digital microscope. This system integrates a 30:1 motorized zoom lens with auto focus and iris control, a robust industrial‑grade XY travel gantry stand, a 27″ 4K monitor with computer, and a USB HDMI image capture device — all paired with user‑friendly Inspectis Basics Software for imaging, measurement, annotation, and documentation tasks.

Designed for demanding quality control, electronics inspection, materials analysis, and laboratory workflows, this gantry system delivers high‑resolution imagery, extensive sample area coverage, and powerful software tools — making it ideal for precision inspection and measurement across varied applications.

Specifications

• Video Output: 4K Ultra HD 2160p @ 30 fps (switchable to FHD 1080p @ 60 fps)

• Imager: 8.5 MP progressive scan CMOS (3840 × 2160)

• Pixel Size: 1.62 µm × 1.62 µm

• Lens: Motorized 30:1 zoom with auto focus, iris control, pre‑calibrated optics, automatic zoom tracking

• Camera & Lens Control: Iris, zoom, auto focus on/off, white balance; optional remote and foot switch available

• Environmental Protection: Hermetically sealed camera housing with ESD protection

• Capture Device: USB image and video capture for recording and storage

• Illumination: Inspectis White LED Ring Light with 8 high‑power LEDs (5800 K) and detachable diffuser; adjustable lighting

• Stand: Industrial‑grade XY travel gantry table available in multiple sizes: Standard (X: 100–750 mm, Y: 100–550 mm) or Long Range Y (X: 100–750 mm, Y: 551–800 mm)

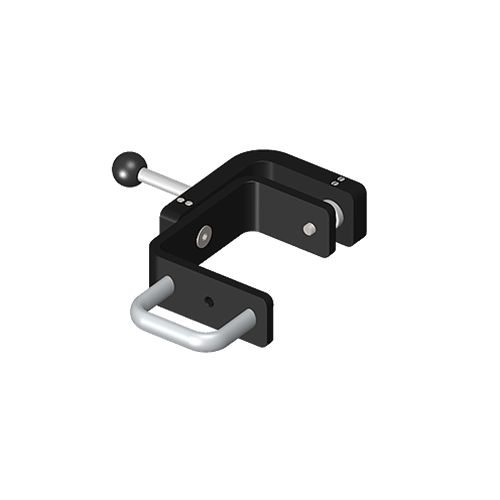

• Tilt Option: Optional 4‑direction tilt unit for ±30° viewing angles

• Computer & Monitor: Includes computer with 27″ 4K monitor (3840 × 2160)

• Software: Inspectis Basics Software — image view, capture, measurement, annotation, grid overlays, and preset calibration tools

• Return Policy: Non‑returnable

• Manufactured: Sweden

• Delivery: Contact supplier for current lead time and quote (typically several weeks)

Features & Benefits

• Ultra HD Imaging: Crystal clear 4K imaging with an 8.5 MP sensor and advanced optics for detailed inspection.

• Extensive Workspace: Gantry XY travel table supports large sample inspection with high positional repeatability.

• Powerful Basics Software: Tools for live imaging, freeze frame, calibrated measurement, digital zoom, annotation, grid/crosshair overlays, and image organization support efficient workflows.

• Adjustable Illumination: LED ring light with smooth intensity control enhances contrast and reduces glare on sample surfaces.

• Optional Upgrades: Expand system capabilities with tilt stages, longer travel options, and remote/foot control accessories.

• Industrial‑Grade Build: Durable sealed camera and robust gantry stand make it suitable for production, R&D, and quality control environments.

SKU: U30-BCS-GTY-STD/ U30-BCS-GTY-LYR/ U30-BCS-GTY-STD-TLT/ U30-BCS-GTY-LYR-TLT
