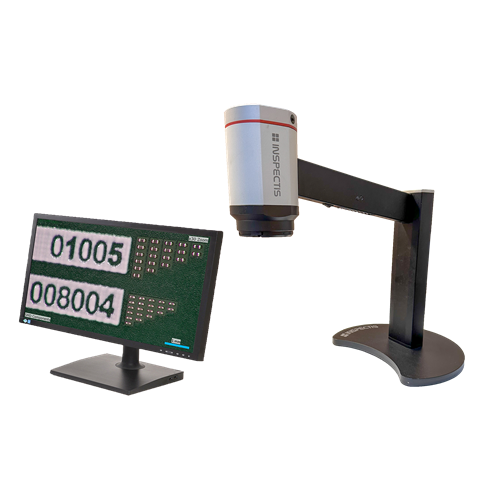

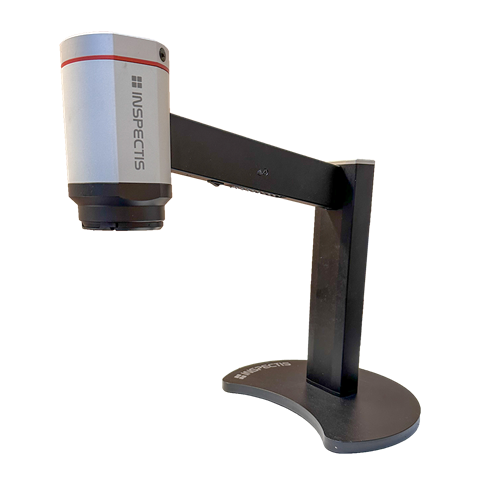

The Inspectis Microscope U30s 4K Direct-to-Monitor All-In-One System is a compact yet powerful digital microscope solution designed for high-resolution industrial inspection and visual workflows. This integrated system combines the Inspectis U30s 4K UHD camera and optics with a 27″ 4K UHD monitor and simple direct-to-monitor connectivity — enabling streamlined image viewing without the need for a separate computer or software installation.

The system delivers crisp 4K imagery, intuitive control, and a simplified inspection experience — ideal for electronics inspection, quality control stations, production environments, and laboratories where quick setup and ease-of-use are priorities.

Specifications

• Part Number / SKU: U30-DTM-HD-024-B/ U30-DTM-LDG/ U30-DTM-MW153R

• Video Output: 4K Ultra HD 2160p @ 30 fps; switchable to Full HD 1080p @ 60 fps

• Imager: 8.5 MP progressive scan CMOS sensor (3840 × 2160)

• Pixel Size: 1.62 µm × 1.62 µm

• Optics: Motorized 30:1 zoom lens with autofocus and iris control

• Monitor: 27″ 4K UHD display with high contrast and wide color gamut

• Controls: On-screen menus with joystick or remote control interface

• Illumination: Integrated LED ring or optional external illumination (depending on configuration)

• Capture: Built-in HDMI output and direct image capture to USB storage device

• Design: All-in-one system with no computer software required

• Protection: Hermetically sealed camera housing with ESD protection

• Return Policy: Non-returnable

• Manufactured: Sweden

• Delivery: Approximately 3–4 weeks

Features & Benefits

• Direct-to-Monitor Operation: No separate computer or software installation necessary — plug in the microscope module and start inspecting immediately.

• 4K UHD Clarity: High-resolution 8.5 MP sensor and 4K optics deliver crisp, detailed inspection imagery with accurate color.

• Motorized 30:1 Zoom: Smooth, variable magnification for detailed images at low and high zoom.

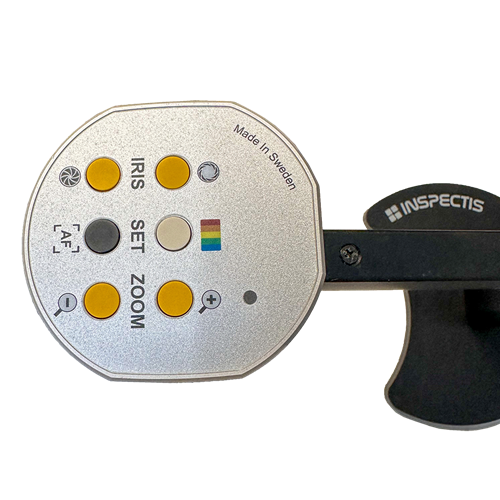

• Simple Control Interface: Intuitive on-screen menus and optional joystick or remote provide quick access to imaging adjustments.

• Integrated Display: Large 27″ UHD monitor shows live images and makes collaboration and defect review easier.

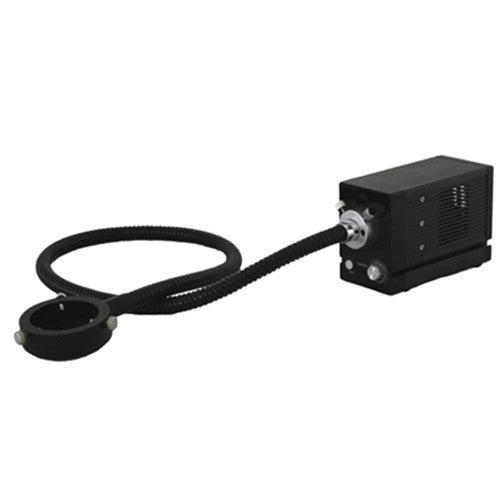

• Flexible Illumination: Supports integrated ring light and optional external lights for enhanced contrast and surface detail.

• Industrial-Grade Build: Durable design with sealed optics and ESD protection — suitable for electronics, manufacturing, and lab environments.
