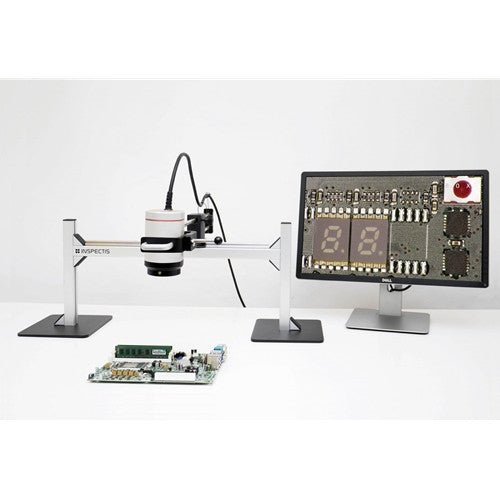

The Inspectis Microscope U30s 4K Direct-to-Monitor Gantry System is an industrial-grade inspection platform built around the U30s 4K Ultra HD digital microscope with a 30:1 motorized zoom lens mounted on a robust XY travel gantry stand for large sample inspection. This plug-and-play system includes on-board camera and lens control, a 27″ 4K UHD monitor, and a USB image and video capture device, making it ideal for optical inspection, quality control, documentation, and production line workflows.

Specifications

• Video Output: 4K Ultra HD 2160p @ 30 fps (switchable to FHD 1080p @ 60 fps)

• Imager: 8.5 MP 3840 × 2160 progressive scan CMOS sensor

• Pixel Size: 1.62 µm × 1.62 µm

• Lens: Motorized 30:1 zoom with autofocus, iris control, and pre-calibrated optics with automatic zoom tracking

• Camera & Lens Controls: Iris, Zoom, Auto Focus on/off, White Balance (optional foot pedal & remote accessories available)

• Illumination: White LED ring light with adjustable diffuser

• Stand: Table-top XY gantry with:

  • Standard travel – X: 100 mm–750 mm / Y: 100 mm–550 mm

  • Long range Y travel – X: 100 mm–750 mm / Y: 551 mm–800 mm

  • Optional 4-direction tilt unit ±30° available

• Monitor: 27″ 4K UHD (3840 × 2160)

• I/O: HDMI video output; 5P MiniDin power input; 8P MiniDin communication

• Manufactured: Sweden

• Return Policy: This item is not returnable.

Key Features & Benefits

• 4K Ultra HD Imaging: Delivers crisp 2160p 4K visuals, switchable to Full HD 1080p/60 fps for smooth inspection viewing and reporting.

• High-Resolution Sensor: 8.5 MP progressive scan CMOS sensor provides detailed imaging across the entire magnification range.

• Motorized 30:1 Zoom Lens: Autofocus, iris control, and automatic zoom tracking give flexible magnification from overview to microscale inspection.

• Industrial Gantry Stand: Table-top XY travel stand with long travel options and available tilt attachments supports inspection of large and irregular samples.

• Direct-to-Monitor Setup: Includes a 27″ 4K monitor with integrated viewing — no computer required for basic inspection imaging.

• USB Capture Device: Enables direct saving of still images and videos for documentation and traceability.

• ESD-Protected, Sealed Housing: Built for industrial environments with hermetically sealed optics and ESD protection.

SKU: U30-DTM-GTY-STD/ U30-DTM-GTY-LYR/ U30-DTM-GTY-STD-TLT/ U30-DTM-GTY-LYR-TLT
