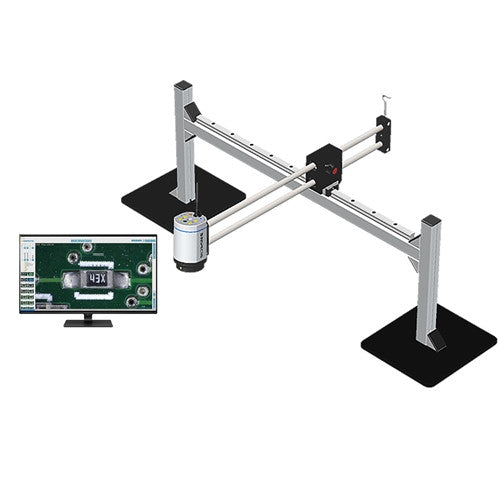

The Inspectis Microscope F30s HD Direct-to-Monitor Gantry System is a plug-and-play industrial inspection platform built around the F30s HD digital microscope, featuring a 30:1 motorized zoom lens mounted on a rugged industrial-grade XY travel table-top gantry stand — ideal for inspecting large samples, assemblies, and surfaces. This system includes an integrated 21″ HD monitor and a USB image and video capture device for documentation and traceability without the need for a separate PC.

Designed for demanding environments such as quality control, electronics manufacturing, and laboratory workflows, the system combines precise optics, smooth gantry motion, and reliable imaging to support repeatable inspection routines.

Specifications

• Video Output: Full HD 1080p @ 60 fps (switchable to 1080p @ 50 fps)

• Imager: 3.2 MP progressive scan CMOS (1920 × 1080)

• Working Distance: ~230 mm

• Lens: Motorized 30:1 zoom with autofocus, iris control, and pre-calibrated optics

• Camera & Lens Control: Iris, zoom, autofocus On/Off, white balance (optional foot switch & advanced remote available)

• Illumination: White LED ring light with 8 high-power LEDs (5800 K) and detachable diffuser; smooth intensity control

• Stand: Industrial XY travel table-top gantry with options:

  • Standard: X travel 100 mm–750 mm / Y travel 100 mm–550 mm

  • Long-range Y: X travel 100 mm–750 mm / Y travel 551 mm–800 mm

  • Optional 4-direction tilt unit for ±30° viewing angles

• Monitor: 21″ HD display (1920 × 1080)

• I/O: HDMI video output, 5P MiniDin power input, 8P MiniDin communication

• Manufactured: Sweden

• Return Policy: This item is not returnable

Features & Benefits

• Industrial Gantry Design: Smooth XY travel supports inspection of larger parts, PCBs, and assemblies with repeatable positioning.

• Direct-to-Monitor Operation: Built-in 21″ HD monitor provides real-time inspection views without a separate computer, simplifying setup.

• High-Quality Optics: Motorized 30:1 zoom optics with autofocus and iris control ensure clear imaging across magnification ranges.

• Reliable Illumination: LED ring light with adjustable intensity produces even, bright lighting for inspection tasks.

• Flexible Sample Viewing: Optional tilt unit enables angled viewing for complex or three-dimensional parts.

• USB Capture Support: Capture images and videos directly to USB drives for documentation and reporting.
