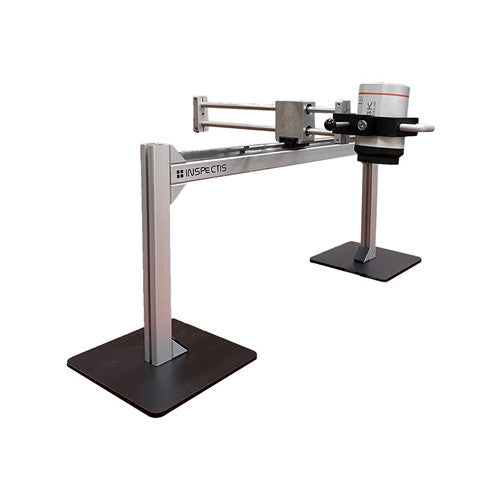

The Inspectis Microscope U30s 4K Overlay Assisted Inspection Gantry System is a premium industrial imaging platform built around the U30s 4K Ultra HD digital microscope with a 30:1 motorized zoom lens mounted on a rugged industrial-grade XY travel gantry stand. This system combines high-resolution imaging with advanced inspection software to support overlay assisted inspection (OAI) workflows, enabling enhanced comparison, alignment, and defect analysis.

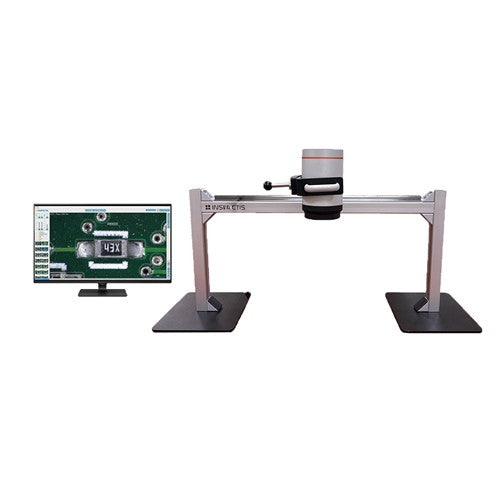

Included with the system are a 27″ 4K monitor, a powerful computer workstation, and a 4K HDMI-USB3.0 image capture device — together providing a turnkey solution for large-sample inspection, measurement, documentation, and process control. Ideal for electronics manufacturing, quality control, materials analysis, and other precision inspection environments.

Specifications

• Part Number / SKU: U30-OAI-GTY-STD/ U30-OAI-GTY-LYR

• Video Output: 4K Ultra HD 2160p @ 30 fps (switchable to FHD 1080p @ 60 fps)

• Imager: 8.5 MP progressive scan CMOS (3840 × 2160)

• Pixel Size: 1.62 µm × 1.62 µm

• Lens: Motorized 30:1 zoom with autofocus, iris control, pre-calibrated optics, and automatic zoom tracking

• Camera & Lens Control: Iris, zoom, autofocus on/off, white balance (optional hands-free accessories available)

• Overlay Assisted Inspection (OAI) Software:

  • Automatic alignment and rescaling of overlaid images

  • PNG overlay on live image as digital graticule

  • Optical edge detection and DXF export

  • DXF import/edit/export as PNG

  • Time interval overlay assistance

• Illumination: Inspectis White LED Ring Light with adjustable intensity and detachable diffuser

• Stand: Industrial XY travel gantry stand with options:

  • Standard: X travel 100 mm–750 mm / Y travel 100 mm–550 mm

  • Long-Range Y: X travel 100 mm–750 mm / Y travel 551 mm–800 mm

• Monitor & Computer: 27″ 4K Ultra HD monitor with matched workstation

• Capture Device: USB + HDMI image/video capture interface

• Environmental Protection: Hermetically sealed camera housing with built-in ESD protection

• Manufactured: Sweden

• Return Policy: Non-returnable

Features & Benefits

• 4K Ultra HD Imaging: High-definition 8.5 MP video output captures crisp, detailed imagery suitable for precision inspection and documentation.

• Overlay Assisted Inspection Software: OAI tools allow digital overlay of reference images, alignment and scaling, edge detection, and DXF export — ideal for comparative analysis and quality workflows.

• Motorized 30:1 Zoom Lens: Smooth optical zoom with autofocus, iris, and automatic tracking supports a wide inspection range from overview to fine detail.

• Flexible Gantry Stand: Industrial XY travel with optional extended Y-range accommodates large samples and extended inspection areas.

• Integrated Workstation: Large 4K monitor and dedicated computer provide real-time image viewing, capture, and software analysis.

• Enhanced Illumination: Adjustable white LED ring light ensures even, shadow-free illumination to support accurate image capture.

• Expandable System: Optional foot switch and advanced remote controls can enhance hands-free operation.
