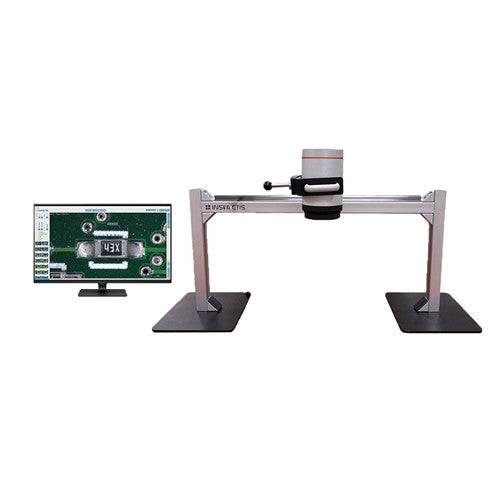

The Inspectis Microscope U30s 4K Pro Metrology Gantry System is a high‑precision, industrial‑grade digital microscope solution built for advanced inspection, metrology, and measurement workflows. This turnkey system combines the U30s Ultra HD digital microscope with a 30:1 motorized zoom lens, robust XY travel gantry stand, 27″ 4K monitor, computer workstation, and Inspectis Pro Software — providing powerful imaging, analysis, and reporting capabilities in one integrated platform.

Featuring advanced measurement tools such as overlaying scales on live images, circle/angle/curve measurement, report generation with exported data, video capture, and semi‑transparent image overlays, it delivers unmatched versatility for precision inspection in quality control, research, and industrial environments.

Specifications

• Microscope: U30s Ultra HD digital microscope with 8.5 MP CMOS sensor (3840 × 2160)§

• Video Output: 4K Ultra HD 2160p @ 30 fps (switchable to Full HD 1080p @ 60 fps)

• Zoom & Optics: Motorized 30:1 zoom range with auto focus, iris control, and pre‑calibrated optics with automatic zoom tracking

• Control: Iris, zoom, auto focus on/off, white balance (remote control accessories optional)

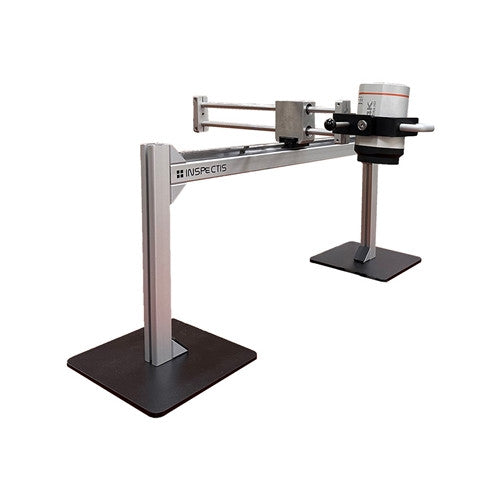

• Stand: Industrial grade XY travel gantry stand

  • Standard: X: 100 mm–750 mm, Y: 100 mm–550 mm

  • Long‑Range Y Option: X: 100 mm–750 mm, Y: 551 mm–800 mm

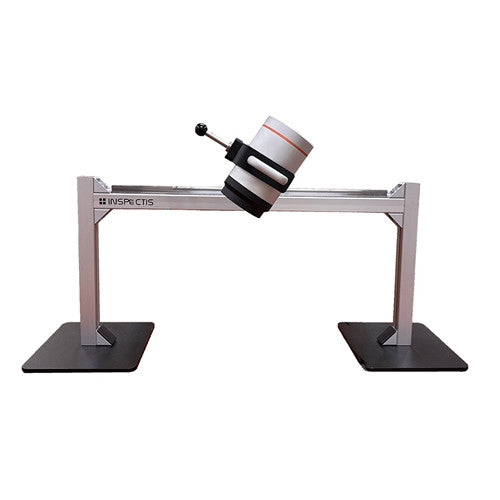

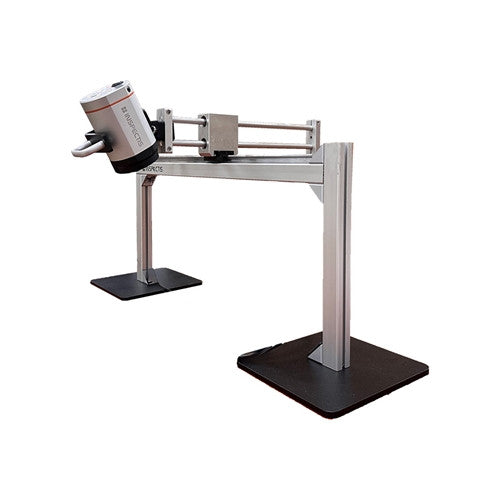

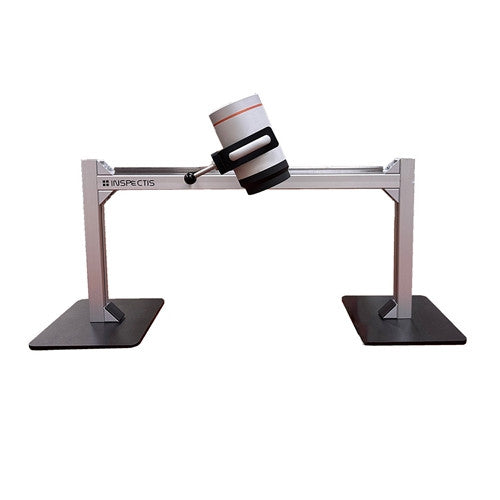

• Optional Tilt: 4‑direction tilt attachment for ±30° viewing angles

• Illumination: White LED ring light with 8 high‑power LEDs (5800 K) and detachable diffuser

• Capture Device: Full‑HD HDMI + USB3.0 image and video capture for recording and storage

• Monitor & Computer: 27″ 4K Ultra HD monitor with included workstation

• Software: Inspectis Pro Software — advanced geometry, measurement, overlays, reporting, and export tools

• Environmental Protection: Hermetically sealed camera housing with built‑in ESD protection

• Return Policy: This item is non‑returnable

• Manufactured: Sweden

• Delivery: Contact for lead time and quote (commonly ~3–4 weeks)

Features & Benefits

• Ultra 4K Imaging: 8.5 MP sensor and 4K video output deliver exceptional clarity for detailed inspection and documentation.

• Pro Metrology Tools: Inspectis Pro Software enables advanced measurement functions including free‑form area, angles, curves, polygons, overlaying scales, and comprehensive reporting.

• Industrial Gantry Stand: Robust XY travel with optional long‑range and tilt configurations for versatile sample positioning.

• Flexible Illumination: Powerful white LED ring light with diffuser supports smooth, even lighting across diverse sample types.

• Capture & Documentation: Integrated HDMI + USB3.0 capture enables recorded image/video storage and metadata export for reporting.

• Ergonomic Workflow: Large 27″ 4K display and intuitive controls enhance productivity during prolonged inspection tasks.

SKU: U30-PROMET-GTY-STD/ U30-PROMET-GTY-LYR/ U30-PROMET-GTY-STD-TLT/ U30-PROMET-GTY-LYR-TLT
