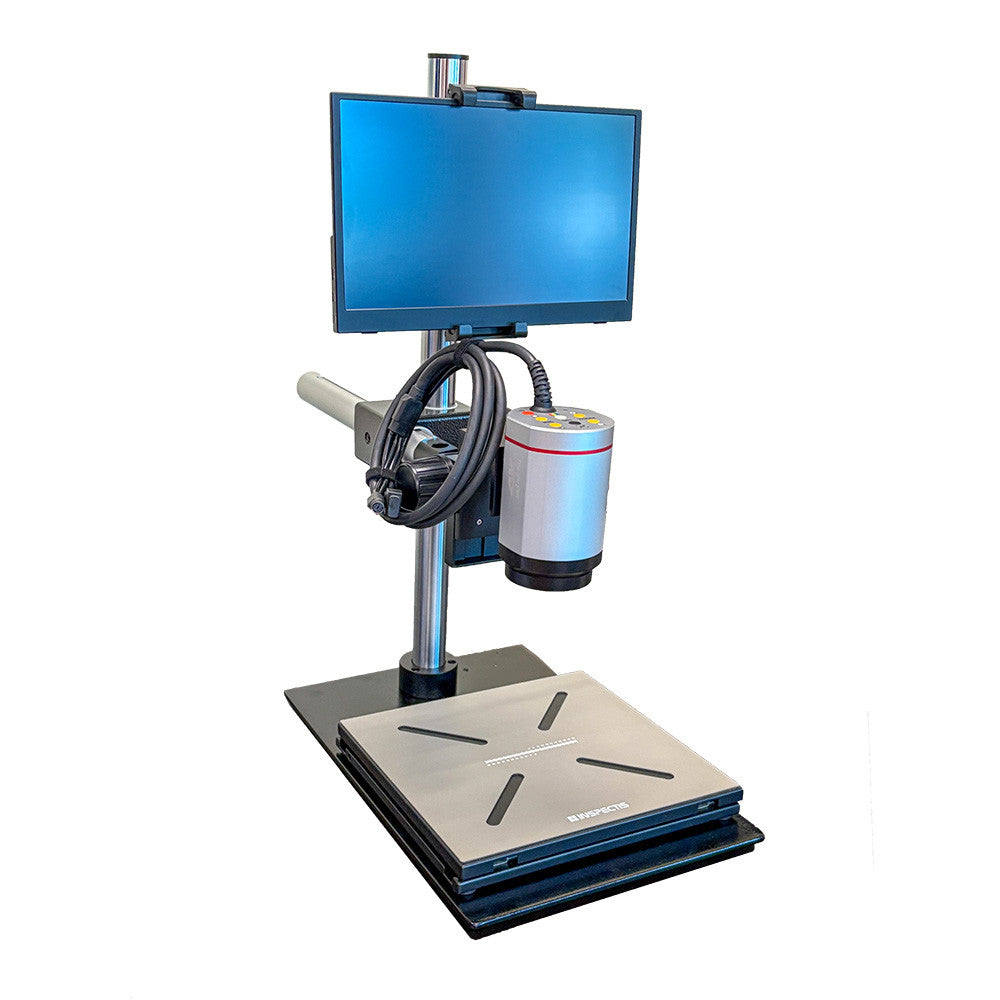

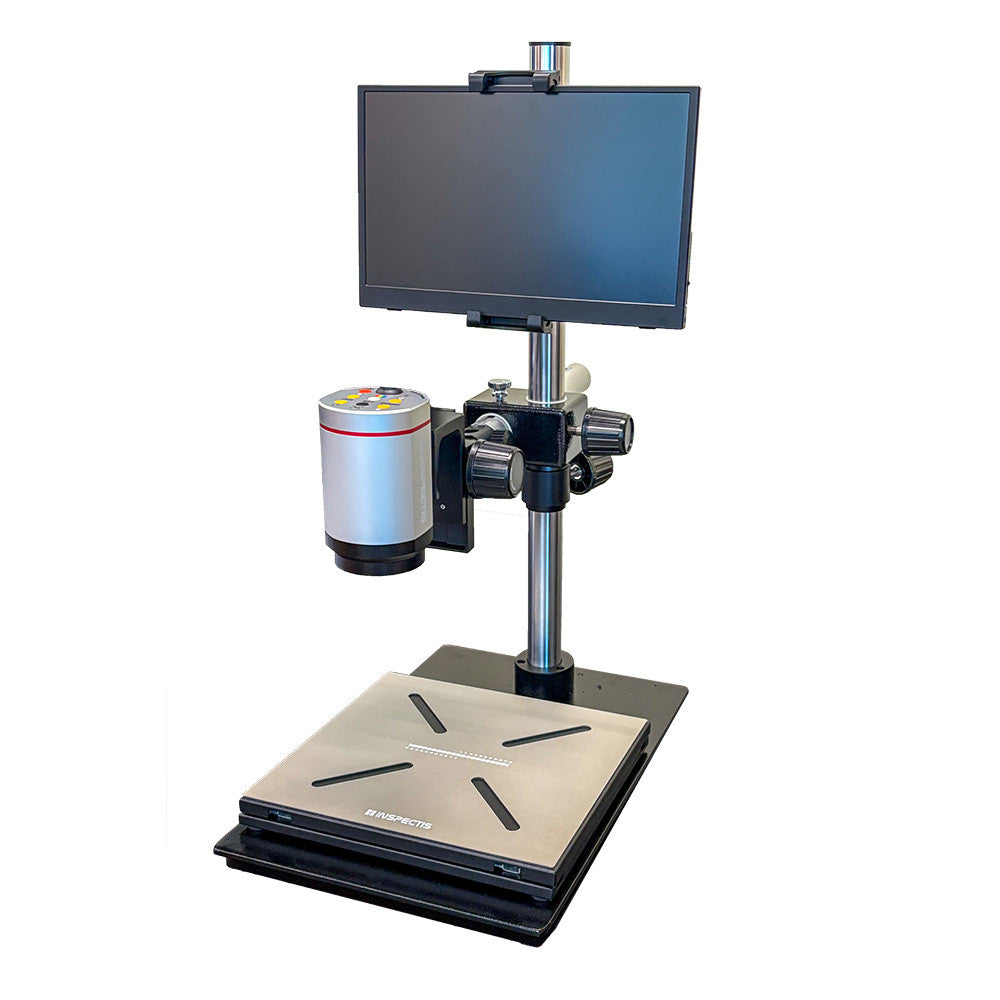

The Inspectis Microscope U30s 4K UHD Digital Boom Microscope is a premium industrial-grade digital inspection system built around the U30s 4K Ultra HD digital microscope. Featuring a 30:1 motorized zoom lens with autofocus and iris control, rugged industrial aluminum housing, and a single-arm boom stand, this system delivers outstanding imaging performance for demanding inspection and quality control tasks.

This turnkey configuration includes a 13″ UHD 4K monitor mounted directly to the boom post for real-time visual feedback, making it ideal for electronics inspection, surface analysis, production verification, and precision documentation workflows. The sealed housing with built-in ESD protection ensures durability and reliability in industrial environments.

Specifications

• Part Number / SKU: U30s-ESD-SABS-LWD-UHD

• Video Output: 4K Ultra HD 2160p @ 30 fps; switchable to Full HD 1080p @ 60 fps

• Imager: 8.5 MP Progressive Scan CMOS (3840 × 2160)

• Pixel Size: 1.62 µm × 1.62 µm

• Lens: Motorized 30:1 Zoom with autofocus, iris control, pre-calibrated optics, automatic zoom tracking

• Controls: Iris, Zoom, Autofocus On/Off, White Balance; optional remote and foot switch support

• Illumination: LED ring light with diffuser and polarization set

• Stand: Single-arm boom stand with ~650 mm (25.5″) vertical travel; ESD-protected base 300 × 450 mm (11.8″ × 17.7″)

• Monitor: 13″ UHD 4K monitor, directly mounted to post

• Input / Output: HDMI video output; 5P MiniDin power input; 8P MiniDin communication

• Environmental Protection: Hermetically sealed camera housing with built-in ESD protection

• Manufactured: Sweden

• Return Policy: Non-returnable

Features & Benefits

• Ultra HD Imaging: 4K Ultra HD video output and a high-resolution 8.5 MP sensor deliver crisp, detailed inspection imagery.

• Wide Zoom Range: The 30:1 motorized zoom with auto-focus and iris provides flexible magnification for both overview and high-detail inspection.

• Professional Boom Stand: Single-arm boom design allows easy, repeatable positioning over a large working area.

• Onboard Control Options: Manual control plus optional foot switch and advanced remote control accessories support hands-free operation.

• ESD Protection & Sealed Housing: Designed for rugged industrial environments with built-in ESD protection and seal-tight camera housing.

• Real-Time Visual Feedback: Integrated 13″ UHD monitor offers live imaging for immediate inspection analysis.
