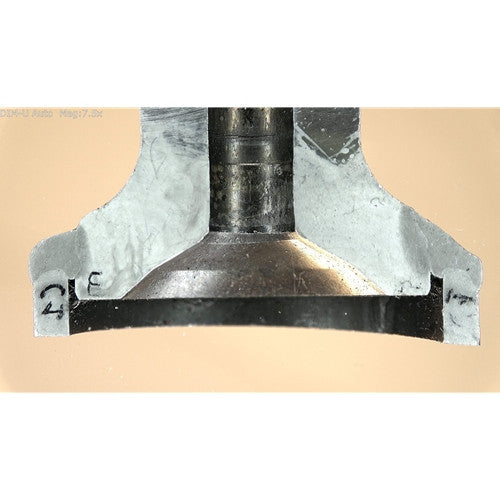

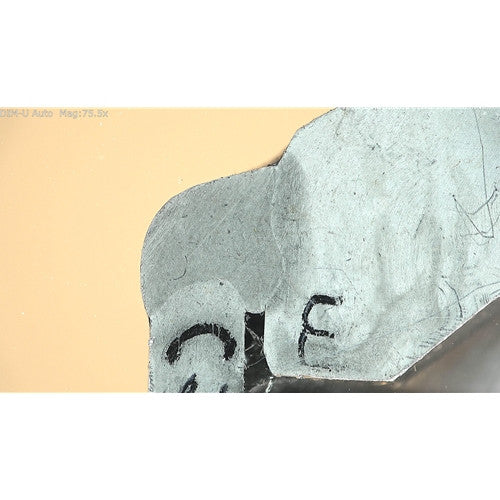

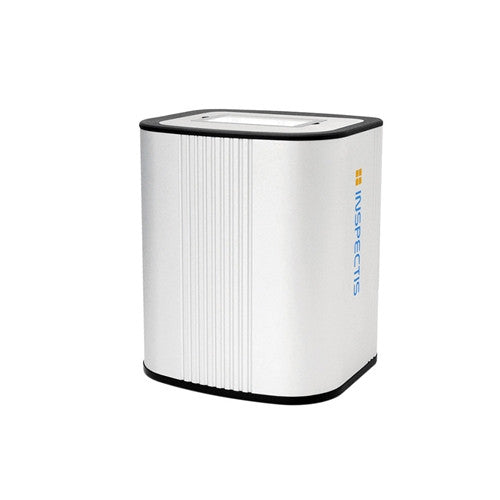

The Inspectis Microscope WELDinspect UHD-4K Digital Inverted Microscope (WELD-DIM-U) is a premium all-in-one industrial inspection system engineered for weld bead measurement, analysis, and documentation. Featuring a wide field of view and a high-resolution motorized zoom lens with autofocus, this inverted digital microscope delivers exceptional clarity and ease of use for inspecting welds and surface features without eyepiece viewing.

Integrated with Inspectis Basics imaging software, this system enables image capture, calibrated measurement, graphics overlays, annotation, and reporting — empowering quality control, manufacturing verification, and laboratory inspection workflows with powerful documentation tools.

Specifications

• Part Number / SKU: WELD-DIM-U

• Magnification (On-Screen): ~7× – 196×

• Field of View: ~3 mm – 82 mm

• Camera Sensor: 8.3 MP UHD 4K image and video capture

• Pixel Size: 1.62 µm × 1.62 µm

• Auto Focus: Motorized zoom with autofocus for intuitive focusing and repeatable measurement

• Illumination: Built-in large-aperture white LED ring light with diffuser and crossed polarizer filter set

• Camera & Lens Controls: Zoom, iris, manual/auto focus, brightness, contrast, gain, clarity, white balance, NIR mode

• Software: Inspectis Basics software — live imaging, digital zoom, calibrated measurement, annotation, object count, crosshair/grid overlay, and saved folders

• Ergonomic Inverted Design: Sample placed directly on aperture window — no eyepiece strain

• Environmental Protection: Hermetically sealed camera housing with built-in ESD protection and five hardened glass windows

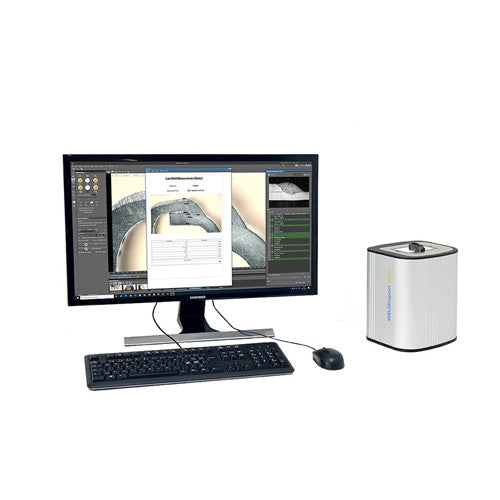

• Computer / Monitor Included: Computer with 21″ HD monitor

• I/O: 5P MiniDin power input, HDMI video output, 8P MiniDin communication

• Manufactured: Sweden

• Return Policy: This item is non-returnable — please allow 3–4 weeks for delivery

Features & Benefits

• Ultra High-Resolution UHD Imaging: 8.3 MP 4K capture combines with motorized zoom and autofocus for sharp, detailed weld inspection at various magnifications.

• Large Field of View: Inspection range from ~3 mm to ~82 mm supports both overview and detailed analysis.

• Autofocus Motorized Zoom: Simplifies setup and reduces repetitive adjustments during inspection or measurement tasks.

• Advanced Inspection Software: Inspectis Basics imaging suite empowers calibrated measurement, annotation, overlay graphics, and reporting workflows.

• Ergonomic Inverted Operation: Place samples directly on the viewing aperture to eliminate eye strain and improve operator comfort.

• Industrial-Strength Build: Sealed optics with ESD protection and hardened glass protect the system in demanding environments.
