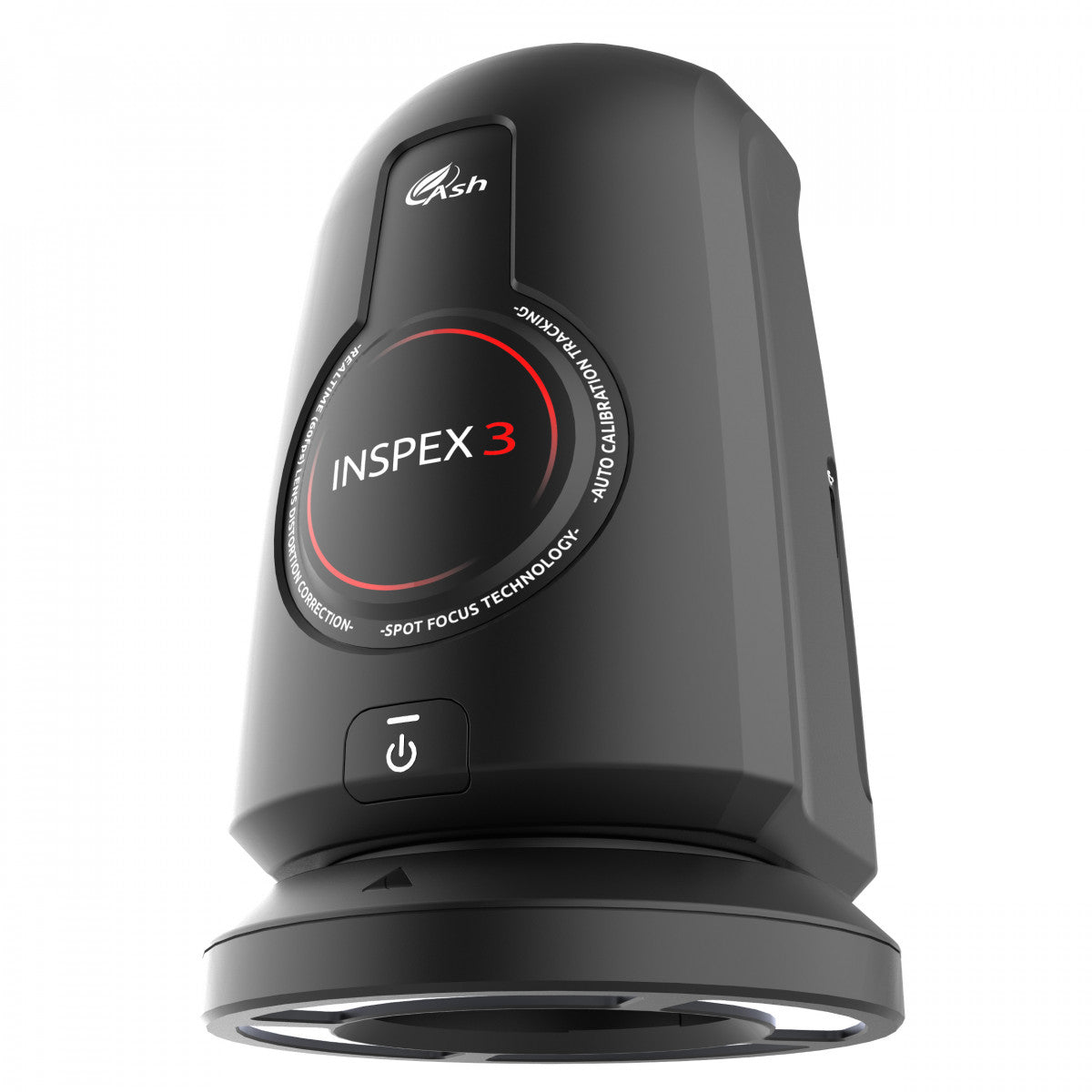

Ash Inspex 3 Digital Microscope System
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
The Ash Inspex 3 digital inspection microscope in the microscope system only configuration combines live 1080p video, on-screen measurement tools and calibration tracking for repeatable visual inspection and quality control.
Key Features
- AshCal calibration tracking across the zoom range
- On-screen presets and 2D line measurement overlays
- One-click autofocus indication and user access control
- Integrated LED ring light with quadrant adjustment
- Stand not included; monitor is required and sold separately
What Can This Microscope Be Used For?
- Electronics, connectors and precision component inspection
- Production quality assurance and go/no-go measurement checks
- Inspection imaging, documentation and repeatable operator workflows
Technical Specifications
| Camera resolution | 1920 × 1080 at 60 fps |
|---|---|
| Magnification | 2.1×–131.6× on 24-inch monitor |
| Optical / digital maximum | 65.6× optical / 131.6× digital |
| Included lens | 5D |
| Working distance | 195 mm |
| Illumination | Integrated LED ring light with quadrant control |
| Connections | HDMI, 4 × USB 2.0, mini USB, 3 general-purpose I/O |
| Calibration | AshCal calibration tracking |
| Stand | Stand not included |
| Monitor | Not included; required |
| Control accessories | Wireless keyboard and mouse included; Keypad not specified |
Compatibility & Ordering
Stand not included. A compatible HDMI monitor is required but not included. Verify required field of view, working distance and stand configuration before ordering.
Manufacturer Resources
UNITRON microscope manufacturer information
Additional Product Details
The Inspex 3 smart inspection microscope is everything you need in a robust, dependable inspection instrument: easy to use, measurement tools, real-time video, preset configurations, pre-calibrated, and so much more!
Inspex 3. Simply Smarter.
Key Features
- AshCal™ Calibration Tracking continually adjusts and maintains calibration for accurate measurements across the entire zoom range.
- On-Screen Preset Buttons allow quick access to pre-configured part-specific systems settings.
- 2-D Line Measurement enables on-screen overlays rapid go/no-go inspection of samples.
- User access control manages system-related operation to standardize inspection and eliminate operational error.
- One click Auto Focus provides instant indication that the sample is in focus.
Specifications
- 1080p Digital inspection station with 5D lens
- 195mm working distance (with 5D lens, included)
- Magnification range: 2.1x - 131.6x (on 24" monitor)
- Maximum magnification: 65.6x optical, 131.6x digital
- Camera resolution: 1920 x 1080, 60fps
- HDMI output, four USB 2.0 ports, mini USB, three general purpose I/O ports, DC power jack
- Internal image storage, removable USB image storage, USB on the go (PC Connectivity)
- Integrated LED ring light with intensity and quadrant control; LED Lamp life approx. 40,000 hours
- Wireless keyboard and wireless mouse included
- HDMI-to-HDMI cable, mini USB cable and USB memory stick included
- Grounding cable included
- Optional objectives: +10D, +25D, 1x Plan (+5D)
- REQUIRES STAND. Stand not included.
- REQUIRES MONITOR. Monitor not included.
- Shipping weight 7lbs.
