The Inspex 3 Smart Inspection digital microscope is everything you need in a robust, dependable inspection instrument: easy to use, measurement tools, real-time video, preset configurations, pre-calibrated, and so much more!

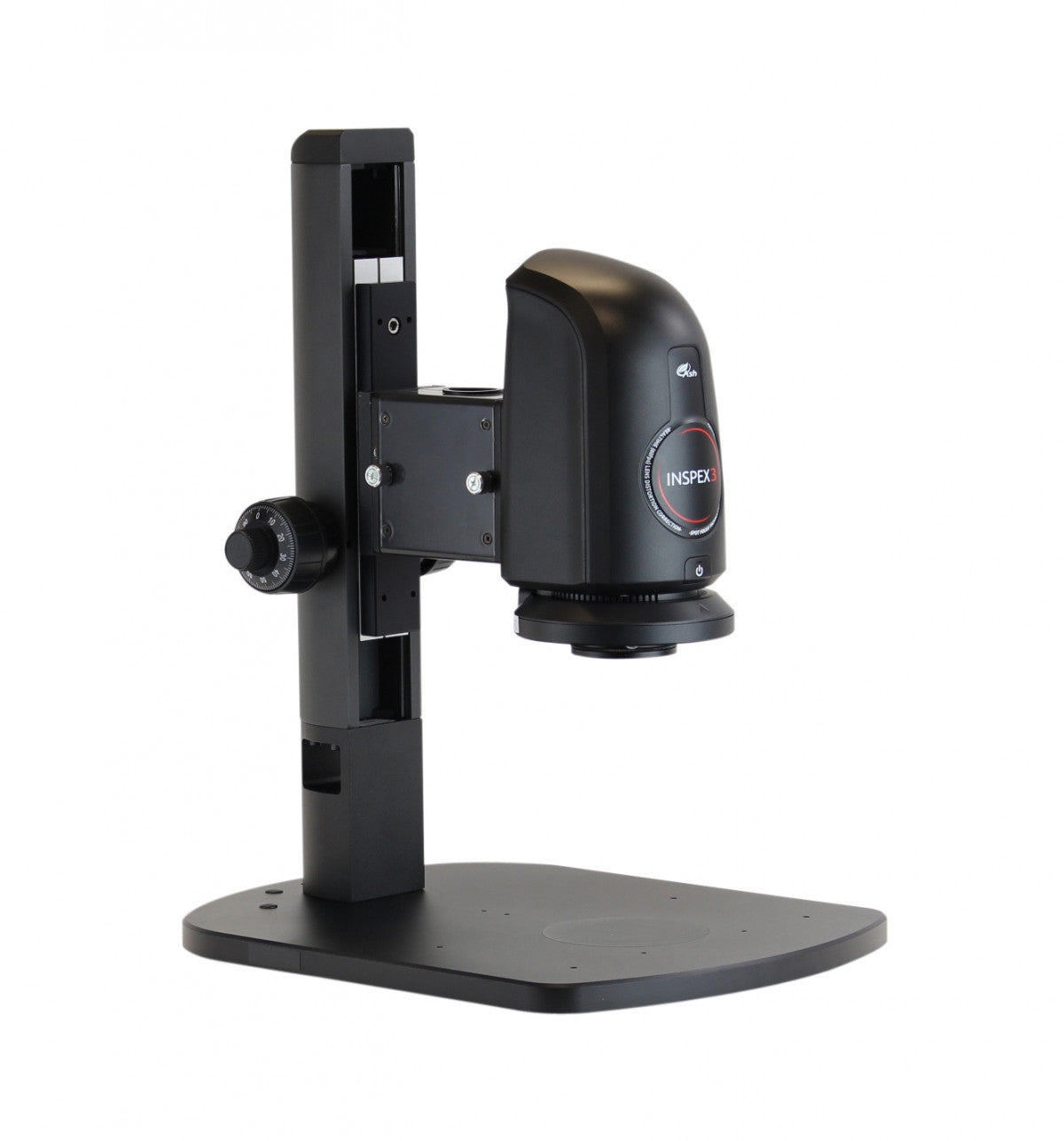

Here we offer the Inspex 3 as a complete kit featuring the Inspex 3, a premium track stand (no illumination), and a keypad at no additional cost!

Key Features

• AshCal™ Calibration Tracking continually adjusts and maintains calibration for accurate measurements across the entire zoom range.
• On-Screen Preset Buttons allow quick access to pre-configured part-specific systems settings.
• 2-D Line Measurement enables on-screen overlays rapid go/no-go inspection of samples.
• User access control manages system-related operation to standardize inspection and eliminate operational error.
• One click Auto Focus provides instant indication that the sample is in focus.

Specifications

• 1080p Digital inspection station with 5D lens
• 200mm working distance (with 5D lens, included)
• Magnification range: 2.1x - 131.6x (on 24" monitor)
• Maximum magnification: 65.6x optical, 131.6x digital
• Camera resolution: 1920 x 1080, 60fps
• HDMI output, four USB 2.0 ports, mini USB, three general purpose I/O ports, DC power jack
• Internal image storage, removable USB image storage, USB on the go (PC Connectivity)
• Integrated LED ring light with intensity and quadrant control; LED Lamp life approx. 40,000 hours
• Wireless keyboard and wireless mouse included
• HDMI-to-HDMI cable, mini USB cable and USB memory stick included
• Grounding cable included
• Optional objectives: +10D, +25D, 1x Plan (5D)
• Track stand included. Features dual focus block, coarse and fine focus adjustment, 3 vertical mounting positions on track, weighted base for increased stability, 390mm (L) x 300mm (W) x 470mm (H), 10kg
• Keypad included.
• REQUIRES MONITOR. Monitor not included.
• Shipping weight 30lbs.
