ioLight 1mm Portable Digital Microscope, XY Stage

Regular price $1,850.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at

Have questions or need Faster Shipping? Call 919-775-5596

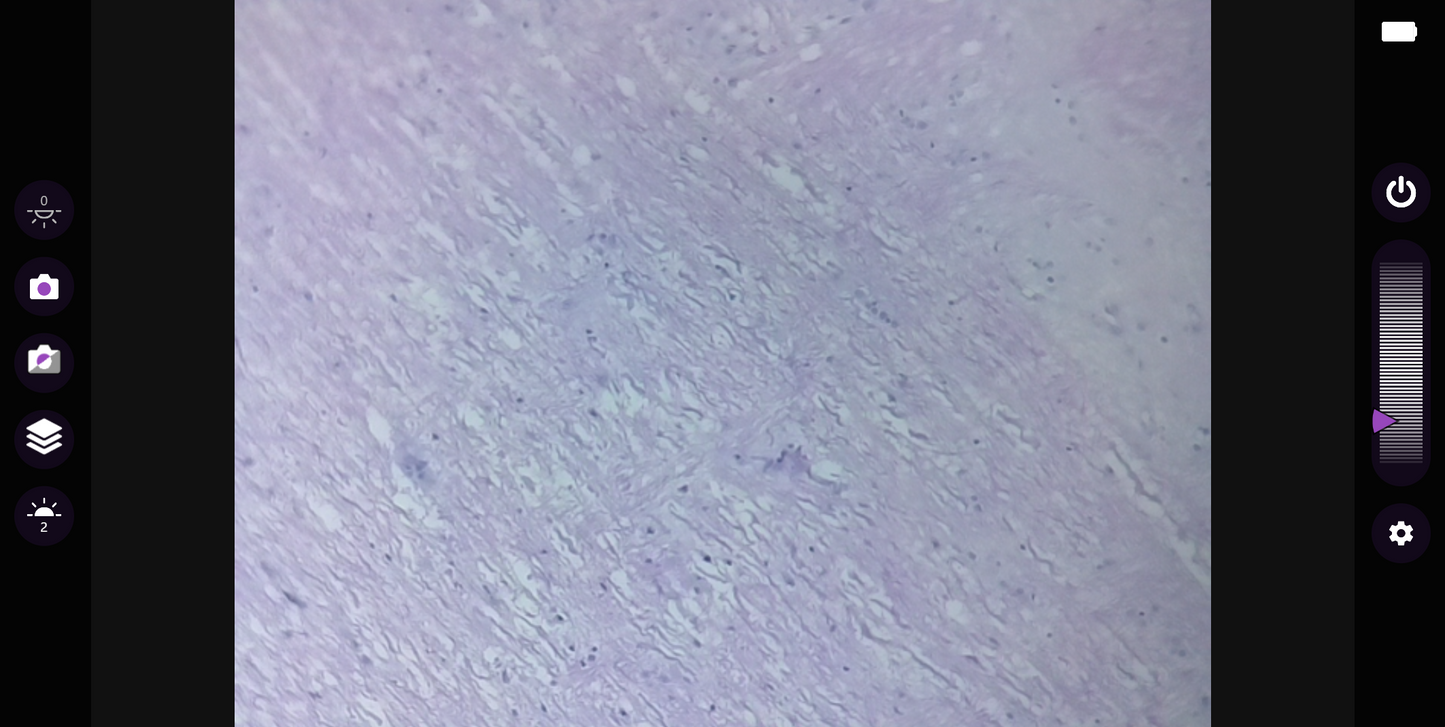

  • View live images on your smart phone or computer via WiFi connection
  • 1mm field of view 1um resolution Capture 5MP JPG images (2592 x 1944)
  • Capture video (1296 x 972) at 10fps Up to 400x magnification (depending on size of mobile device screen)
  • XY slide carrier allows simple microscope slide movement across the stage.  Carriages for either 25mmx75mm, 1”x3” slides or counting chambers and 32mmx75mm/3” counting chambers.  Can be used without the carriage (same as with standard 1mm microscope).
  • Working distance 1mm
  • Variable top and bottom illumination
  • Stainless steel stage
  • Operate microscope with Apple or Android mobile device or via browser. Download mobile apps from Google Play and Apple App Store
  • Rechargeable Li-ion battery via USB charger
  • Dimensions: 160mm x 101mm x 32mm (closed); 160mm x 101mm x 107mm (open during operation)
  • Weight: 600g with 1 slide carrier and included neoprene case
  • Optional travel case (CAT #IOL-3295)

This microscope is excellent for field work and on site slide preparation for water quality applications
