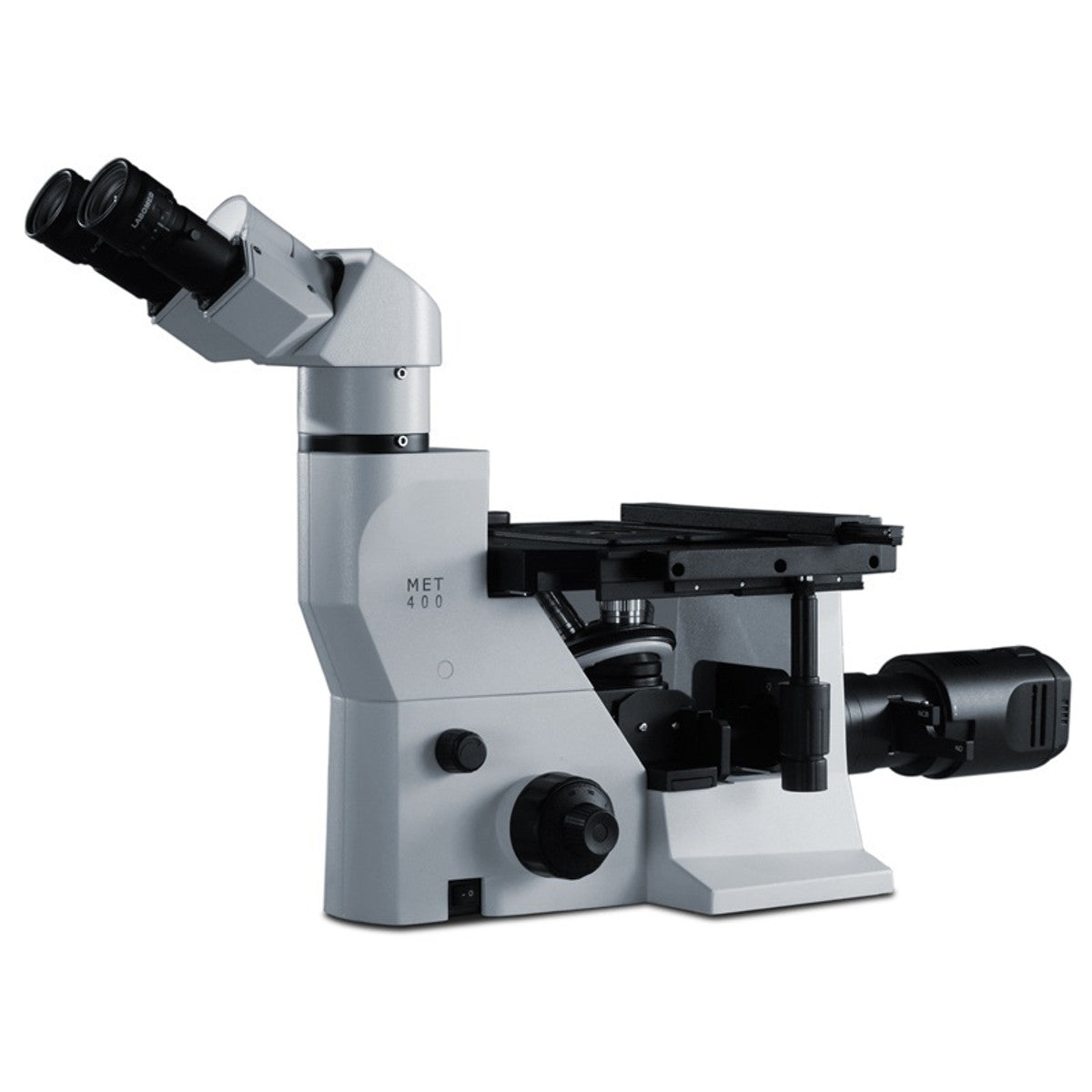

Labomed 7129100 MET 400 Trinocular Inverted Metallurgical Microscope
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
The LABOMED MET 400 is a workhorse tabletop metallurgical microscope that takes on a compact and highly durable form, making it the ideal candidate for daily inspection needs. Whether inspecting heat treated and stress tested metals, glass, plastics, chemicals, contaminants, or thin films, the MET 400 delivers pristine resolution and contrast while ensuring comfort over long periods of use.
Advantages:
The ML series of objectives promise image fidelity. They are treated with LABOMED's proprietary MaxLite™ coatings for superior light transmission and scratch resistant properties. Long working distance and tight design control on chromatic aberrations help the MET 400 deliver accurate renditions at all magnifications. A dry 100x objective is optional.
A slide-in polarizing kit with built-in polarizer/analyzer can fit seamlessly beneath the objective turret for user convenience. Kit comes equipped with a rotating polarizer for 360 degrees of light extinction.
An ultra bright 6V-30W light source with a high color rendition index faithfully reproduces colors for a broad range of materials, particularly those used in color sensitive applications such as photomicrography.
Product Specifications
| Stand | Ergonomic sturdy stand made of anti-rust material |
| Viewing Body | Siedentopf Trinocular head; 30° inclined, fixed; IPD 52 - 75mm. |
| Eyepiece | Focusable Wide Field eyepieces 10x/22mm, with foldable eye guard, antifungal. |
| Nosepiece | Reverse angle quadruple nosepiece with click stops and rubber grip. |
| Objectives | ML series infinity corrected, DIN Plan Achromatic objectives 5x, 10x, 20x and 50x; antifungal, MaxLite (TM) coated; Optional 100x Dry objective. |
| Focusing | Coaxial coarse and fine focusing system with tension adjustment. Focus graduation is 2um per division. |
| Illumination | Koehler episcopic illumination system with diffuser; Halogen 6V-30W with intensity control; 100V - 240V universal power supply. |
| Stage | Fixed stage with specimen holder - 3 types (38mm, 55mm, 65mm). Optional mechanical stage. |
| Electronics | Universal power supply (110V-240V) with built-in voltage stabilizer |
| Warranty | 5-year manufacturer warranty. |
| Certification | UL, CE, ISO 9001:2000 and ISO 13485:2003 |
