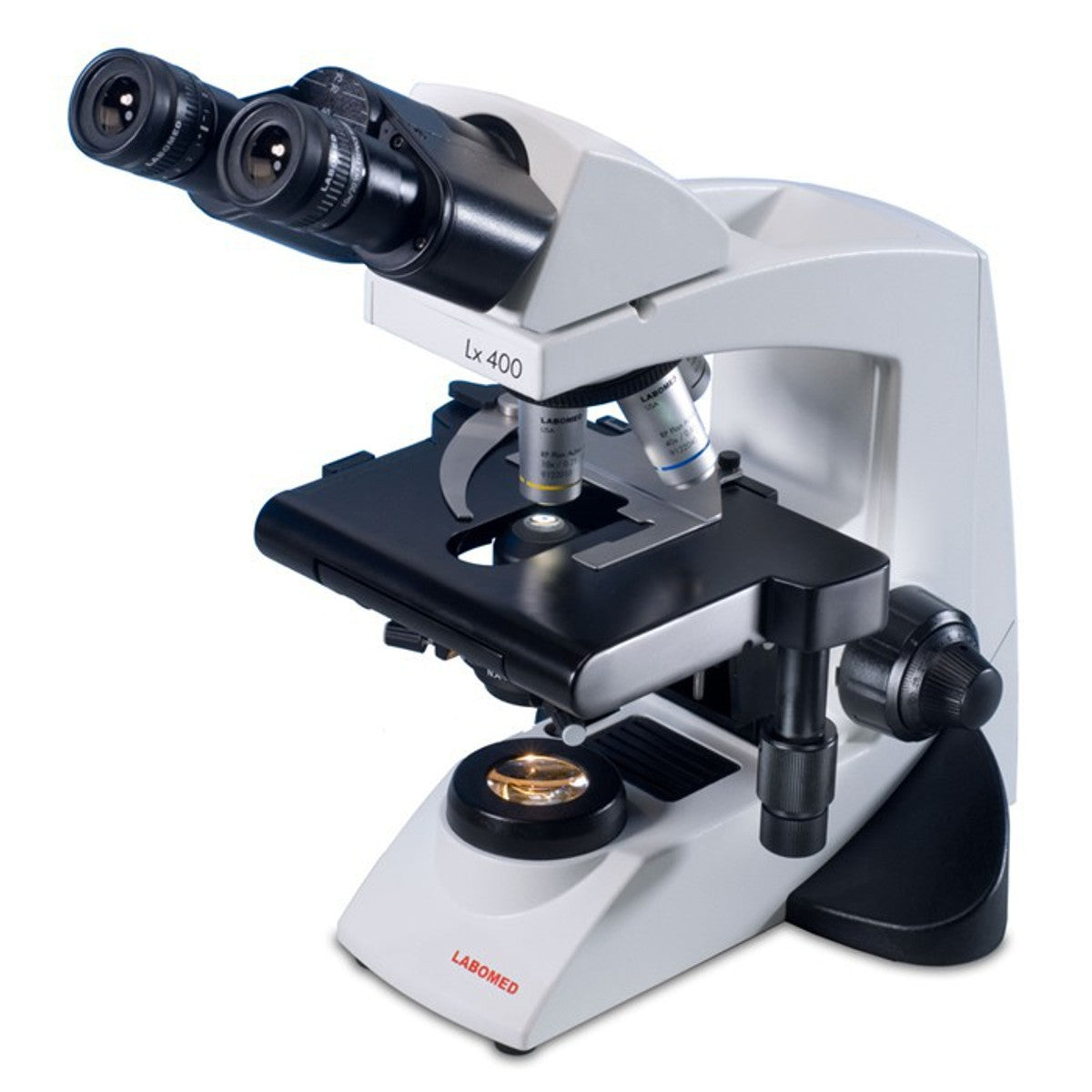

Labomed Lx400 Microscope – Tailored for Veterinary Diagnostics

The Labomed Lx400 Microscope is engineered to meet the diverse needs of veterinary professionals, offering high-quality imaging and ergonomic design for accurate and comfortable diagnostics.

Key Features:

• Advanced Optical System: Equipped with RP series Infinity Corrected Plan Achromatic objectives (4x, 10x, 40x, 100x oil), the Lx400 delivers sharp, high-contrast images with excellent color fidelity, essential for detailed examination of animal tissues and cells.

• Ergonomic Design: The microscope features a fluid focus drive and low-positioned X/Y slide scanning controls, ensuring strain-free operation during extended use. The rackless mechanical stage enhances user safety and maximizes workspace utility.

• Versatile Illumination: An eco-friendly rechargeable LED light source provides bright and even illumination, with an approximate bulb life of 100,000 hours, making it suitable for various veterinary applications, including fieldwork.

• Modular Expandability: The Lx400's modular design allows for the integration of digital, fluorescence, and interference contrast applications, adapting to the evolving needs of veterinary diagnostics.

Specifications:

• Viewing Head: Siedentopf Binocular or Trinocular head, 30° inclined, 360° rotatable, with interpupillary distance of 48–75mm.

• Eyepieces: Widefield 10x/20mm focusable eyepieces with foldable rubber eye guards, antifungal coated.

• Mechanical Stage: Rackless X-axis, double plate stage (200 x 160mm) with X/Y travel range of 78mm x 54mm; hard-coated surface for scratch resistance

• Condenser: Sub-stage Abbe condenser NA 1.25 with aspheric lens, iris diaphragm, and blue daylight filter.

• Focusing: Co-axial coarse and fine focusing mechanisms with fine adjustment of 0.3mm per rotation.

• Illumination: Rechargeable LED illumination with variable intensity control.

Ideal For:

• Veterinary clinics and hospitals

• Field diagnostics and mobile veterinary services

• Educational institutions with veterinary programs

The Labomed Lx400 Microscope combines precision, durability, and adaptability, making it a valuable asset for veterinary professionals seeking reliable diagnostic tools.
