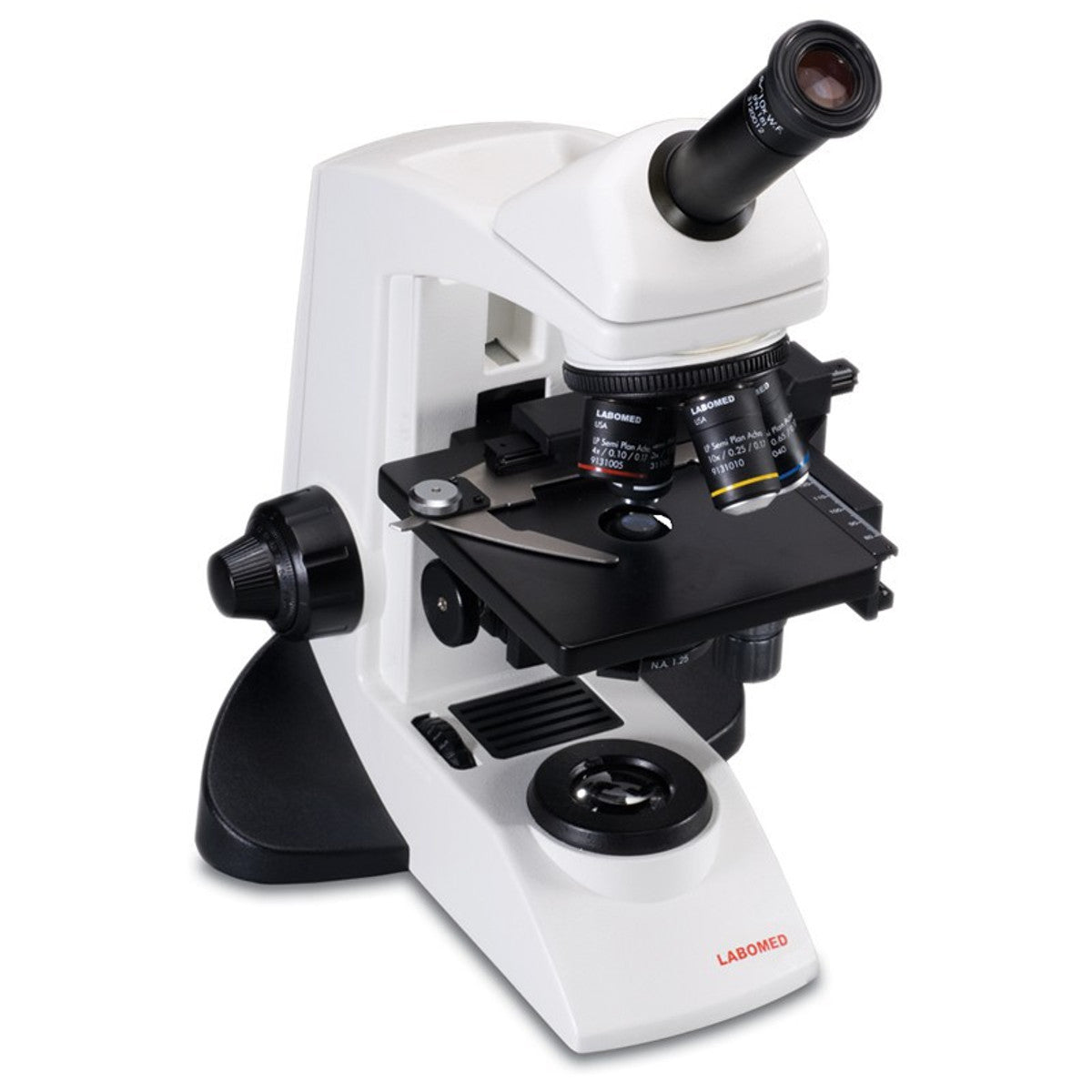

Labomed 9135008 CxL Monocular Cordless Microscope, 4x, 10x, 40x Objectives, LED Illumination
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
These newly designed model features improved optics and an ergo design. The LED illumination system (CE approved with universal power supply) is variable and allows for cordless use with the supplied rechargeable battery.
All models are configured with a Wide Field 10x eyepiece, quadruple nosepiece with DIN Semi-Plan Objectives, mechanical stage and sturdy stand with extended base for enhanced stability and comfort. There are a variety of options and accessories available including binocular & trinocular bodies, phase contrast, darkfield and polarizing. This microscope is recommended for high school and university use and offers outstanding value with features found in microscopes costing hundreds more. It comes with a manufactures five year warranty.
Product Specifications
| Stand | Single mold aluminum die-cast with ergonomic handrests for enhanced comfort and stability. |
| Viewing Body | Binocular 45° inclined, 360° captive rotation, Interpupillary distance 54 - 74mm |
| Eyepiece | Widefield 10x/18mm focusable eyepieces with foldable eye guard, lockable, antifungal coating. Accepts 22mm reticle. |
| Nosepiece | Quadruple nosepiece turret (Ball bearing type) with rubber grip |
| Objectives | LP series DIN Semi-Plan Achromatic objectives 4x, 10x, 40x (spring loaded), antifungal |
| Mechanical stage | Rectangular stage 135 x 124mm, X/Y travel range 76mm x 50mm. Low drive movement controls, single specimen holder |
| Condenser | Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in blue filter. Rack and pinion movements on metal guides |
| Focusing | Co-axial coarse and fine focusing on ball drive system for smooth operation. BRASS rack and pinion stage drive. Fine drive movement 0.3mm/rotation |
| Illumination | LED illumination with variable illumination control. Up to 100,000 hours of LED life |
| Electrical | Universal input 100V-240V AC, 50/60Hz, built-in voltage stabilizer |
| Dimensions (L x W x H) | 10 x 8.93 x 14.77 in. (255 x 227 x 375.23 mm) |
| Warranty | 5-year manufacturer warranty. |
| Certification | UL, CE, ISO 9001:2000 and ISO 13485:2003 |
