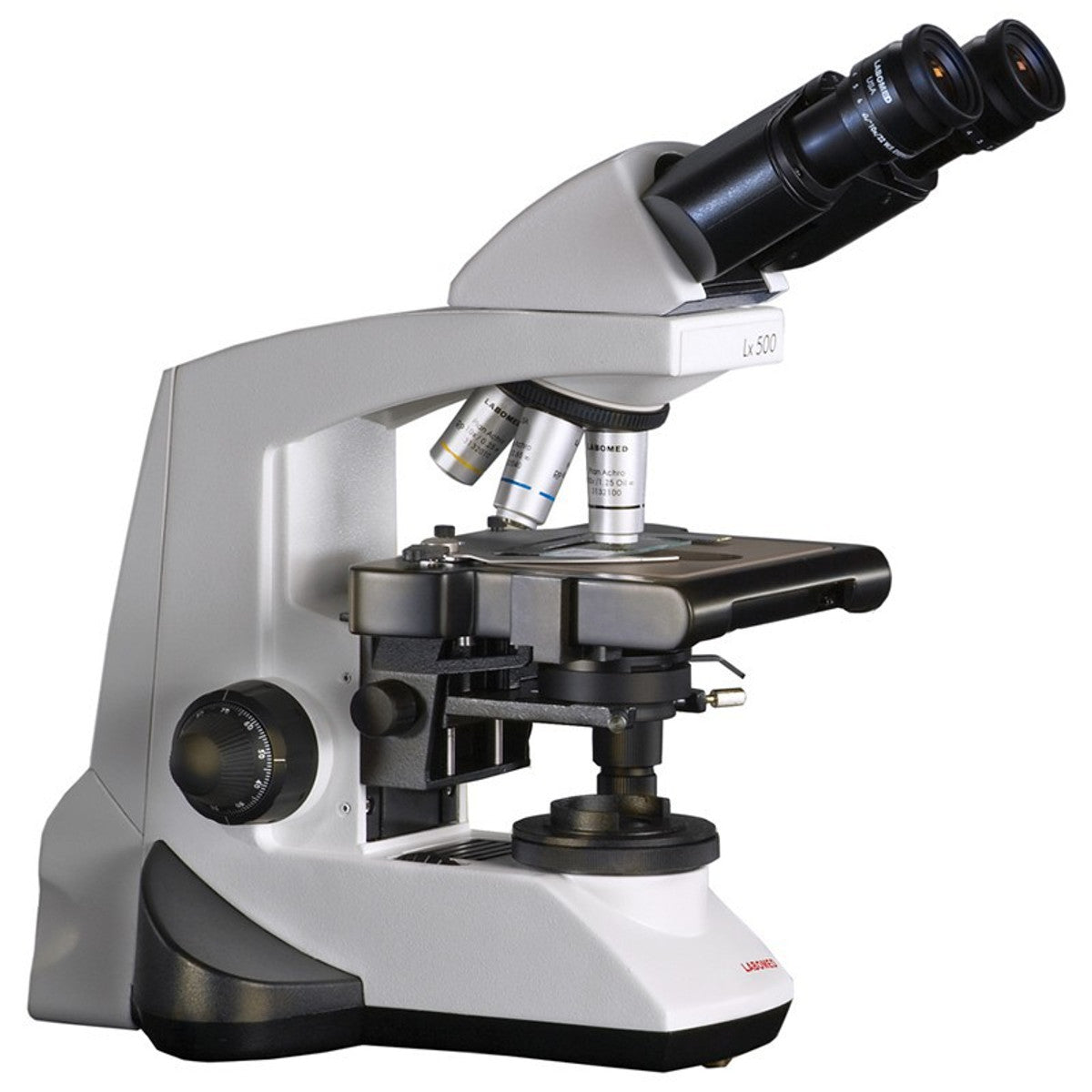

Labomed 9144600 Lx500 LED Clinical Lab Microscope - Cordless

Regular price $2,140.00
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

Lx500 is the outcome of a combination of world-class technology and design innovation. With 0-25° of arc, its optional ergonomic tilting viewing body brings the image to you at your idyllic head position. Complimented by color compensated focusable eyepieces, Super Plan objectives and a robust mechanical structure, Lx500 makes for a clinician's first choice. All optical surfaces are treated with high efficiency anti-fungus coatings.

With Lx500's ceramic stage and dual specimen holder, you can peruse thousands of slides without degradation of the stage's surface. The rackless stage design is compact and provides ultra-smooth traverse. Lx500 provides coolest light and highest contrast. The double layer bulb housing provides lowest heat emission making the system comfortable to use. With its feature rich standard configuration and a host of accessories, Lx500 is a versatile and fully extendable research microscopy system including phase contrast and fluorescent options and upgrades.

Lx500 is truly where economy meets first class. Available format include the Siedentopf 30 degree body and the inclinable ergo with height adjustment.

Suitable for Mohs screening.

Product Specifications

Stand Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Body Siedentopf Binocular 30° inclined, 360° rotatable, Inter-pupillary distance 47 - 75mm with height adjustment
Eyepiece Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated
Nosepiece Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal coated
Mechanical stage Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Y travel range 76mm x 50mm. Double specimen holder
Condenser Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides
Focusing Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation
Illumination Koehler LED illumination with intensity, built-in rechargeable battery for cordless operation. LED lamp life is up to 100,000 hours
Electrical Universal input 100V - 240V AC, 50/60 Hz. Built-in voltage stabilizer
Warranty 5-year manufacturer warranty.
Certification UL, CE, ISO 9001:2000 and ISO 13485:2003
