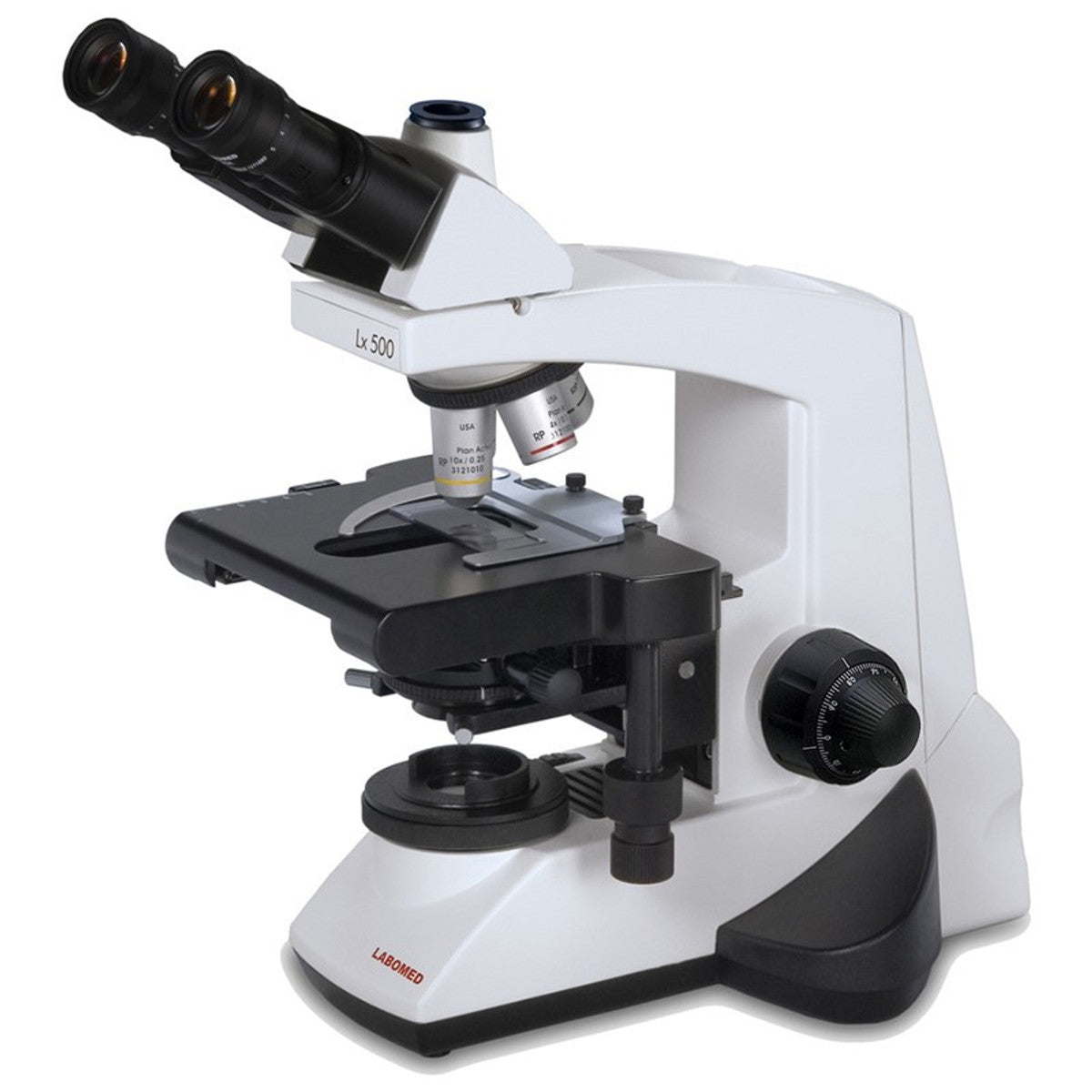

Labomed Lx500 Microscope – Precision Meets Ergonomic Design

The Labomed Lx500 Microscope combines advanced optical technology with ergonomic features, making it an ideal choice for clinicians and researchers. Its modular design and high-quality components ensure reliable performance across various laboratory applications.

Key Features:

• Advanced Optical System: Equipped with RP2 series Infinity Corrected DIN Plan Achromatic objectives (4x, 10x, 40x spring-loaded, 100x oil spring-loaded), the Lx500 delivers sharp, high-contrast images with excellent color fidelity.

• Ergonomic Viewing: Choose between the standard 30° inclined head or the ergonomic 0°–25° tilting head, both 360° rotatable, allowing for comfortable viewing positions during extended use.

• Durable Mechanical Stage: The rackless X-axis ceramic double-plate stage (200 x 160mm) with a double specimen holder ensures smooth slide movement and resistance to wear, even after extensive use.

• Precision Focusing: Co-axial coarse and fine focusing mechanisms with a fine adjustment of 0.3mm per rotation provide precise control for detailed observations.

• Versatile Illumination: True Köhler illumination with options for 6V-30W halogen or energy-efficient LED (up to 50,000 hours lifespan) ensures bright, uniform lighting across all magnifications.

• Modular Expandability: The Lx500 supports various accessories, including phase contrast, fluorescence, polarizing, and darkfield kits, as well as digital imaging solutions, allowing customization to specific research needs.

Specifications:

• Stand: Single-mold sturdy stand with anti-rust materials and an extended base for enhanced stability.

• Viewing Body: Binocular or Trinocular 30° inclined, or Ergonomic Binocular 0°–25° inclinable, 360° rotatable, with interpupillary distance of 47–75mm and height adjustment.

• Eyepieces: Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated.

• Nosepiece: Reverse angle quintuple nosepiece with ball bearings, click stops, and rubber grip.

• Condenser: Flip-top substage Abbe condenser NA 1.25 with aspheric lens, iris diaphragm, and blue daylight filter.

• Focusing: Co-axial coarse and fine focusing on gear systems for smooth operation; fine adjustment 0.3mm/rotation

• Illumination: True Köhler illumination with variable intensity control; options for 6V-30W halogen or LED with built-in rechargeable battery.

• Electrical: Universal input 100V–240V AC, 50/60Hz with built-in voltage stabilizer.

• Certifications: UL, CE, ISO 9001:2000, and ISO 13485:2003.

What's Included:

• Microscope unit with selected head configuration.

• Set of objectives and eyepieces.

• Dust cover, immersion oil, cleaning cloth, power cord, and user manual.

The Labomed Lx500 Microscope offers a blend of precision, durability, and ergonomic comfort, making it a valuable addition to any laboratory setting.

Suitable for Mohs screening.
