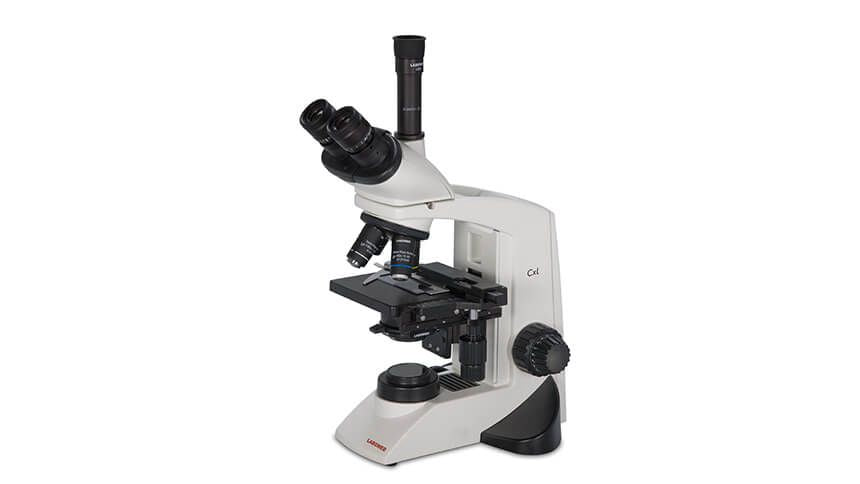

The Labomed CxL rechargeable LED compound microscope combines durable construction, semi-plan optics, and cordless illumination for classroom instruction, routine laboratory microscopy, and KOH slide examination. Select the binocular or trinocular configuration to suit your workflow.

Key Features

• LP series DIN semi-plan achromatic objectives for clear, natural-color specimen viewing.
• Rechargeable LED illumination with adjustable brightness.
• Durable aluminum die-cast stand and brass stage-drive components.
• 45° inclined viewing body with 360° captive rotation.
• Coaxial coarse and fine focus and a mechanical slide stage.

Technical Specifications

• Objectives: 4x, 10x, 40x spring-loaded, 100x oil spring-loaded
• Eyepieces: widefield 10x/18mm
• Condenser: Abbe NA 1.25 with iris diaphragm
• Stage: 135 × 124 mm; travel 76 × 50 mm
• Power: 100–240V AC, 50/60Hz
• Viewing head: binocular or trinocular, depending on selected variant

Applications

Education, general laboratory slide examination, and dermatology KOH preparations.

Product Documentation

Download Labomed CxL Product Brochure (PDF)

Download CxL User Manual (PDF)

Configuration and included accessories depend on the selected variant. Please contact Microscope Marketplace for compatibility questions.
