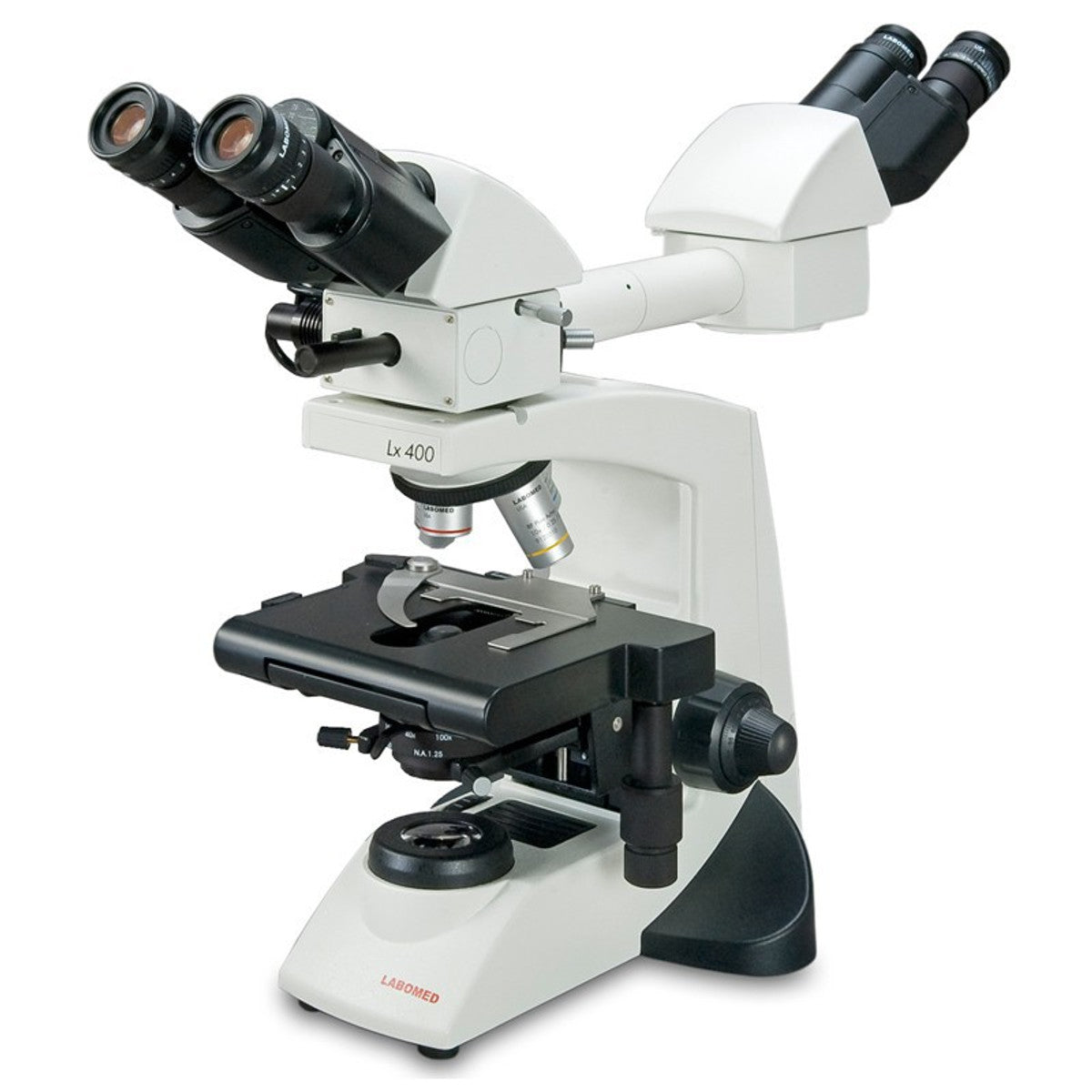

Labomed Lx400 Microscope – Modular Excellence for Diverse Laboratory Needs

The Labomed Lx400 Microscope is a versatile and modular instrument designed to meet the demands of both educational and professional laboratory settings. Its advanced optical and mechanical features ensure high-quality imaging and user comfort.

Key Features:

• Advanced Optical System: Equipped with Infinity Corrected Plan Achromatic objectives (4x, 10x, 40x spring-loaded, 100x oil spring-loaded) and widefield 10x/20mm focusable eyepieces, the Lx400 delivers sharp images with excellent color fidelity across various specimens.

• Ergonomic Design: The microscope features a single-mold aluminum stand with hand rests for enhanced comfort. Its rackless mechanical stage (200 x 160mm) with low-positioned X/Y controls ensures smooth and safe slide manipulation.

• Flexible Illumination: Choose between energy-efficient LED illumination with a built-in rechargeable battery (up to 100,000 hours lifespan) or a halogen light source (approx. 2,000 hours lifespan), both offering variable intensity control for optimal viewing.

• User-Friendly Focusing: Coaxial coarse and fine focusing mechanisms on a ball drive system provide smooth and precise adjustments, enhancing the user experience during prolonged use.

• Modular Expandability: The Lx400's modular design allows for easy integration of accessories such as phase contrast, fluorescence, and digital imaging components, adapting to evolving laboratory needs.

• Dual Viewing Capability: The dual viewing bridge can be configured for side-by-side or face-to-face observation, facilitating collaborative work and instruction.

Specifications:

• Viewing Head: Siedentopf Binocular or Trinocular, 30° inclined, 360° rotatable, interpupillary distance 48–75mm.

• Nosepiece: Reverse angle quadruple nosepiece with ball bearings and click stops.

• Condenser: Abbe condenser NA 1.25 with aspheric lens, iris diaphragm, and blue daylight filter.

• Electrical: Universal input 100V–240V AC, 50/60Hz with built-in voltage stabilizer.

• Certifications: UL, CE, ISO 9001:2000, and ISO 13485:2003.

What's Included:

• Microscope unit with selected head configuration.

• Set of objectives and eyepieces.

• Dust cover, immersion oil, cleaning cloth, power cord, and user manual.

The Labomed Lx400 Microscope combines high-performance optics, ergonomic design, and modular flexibility, making it an excellent choice for laboratories seeking quality and affordability.
