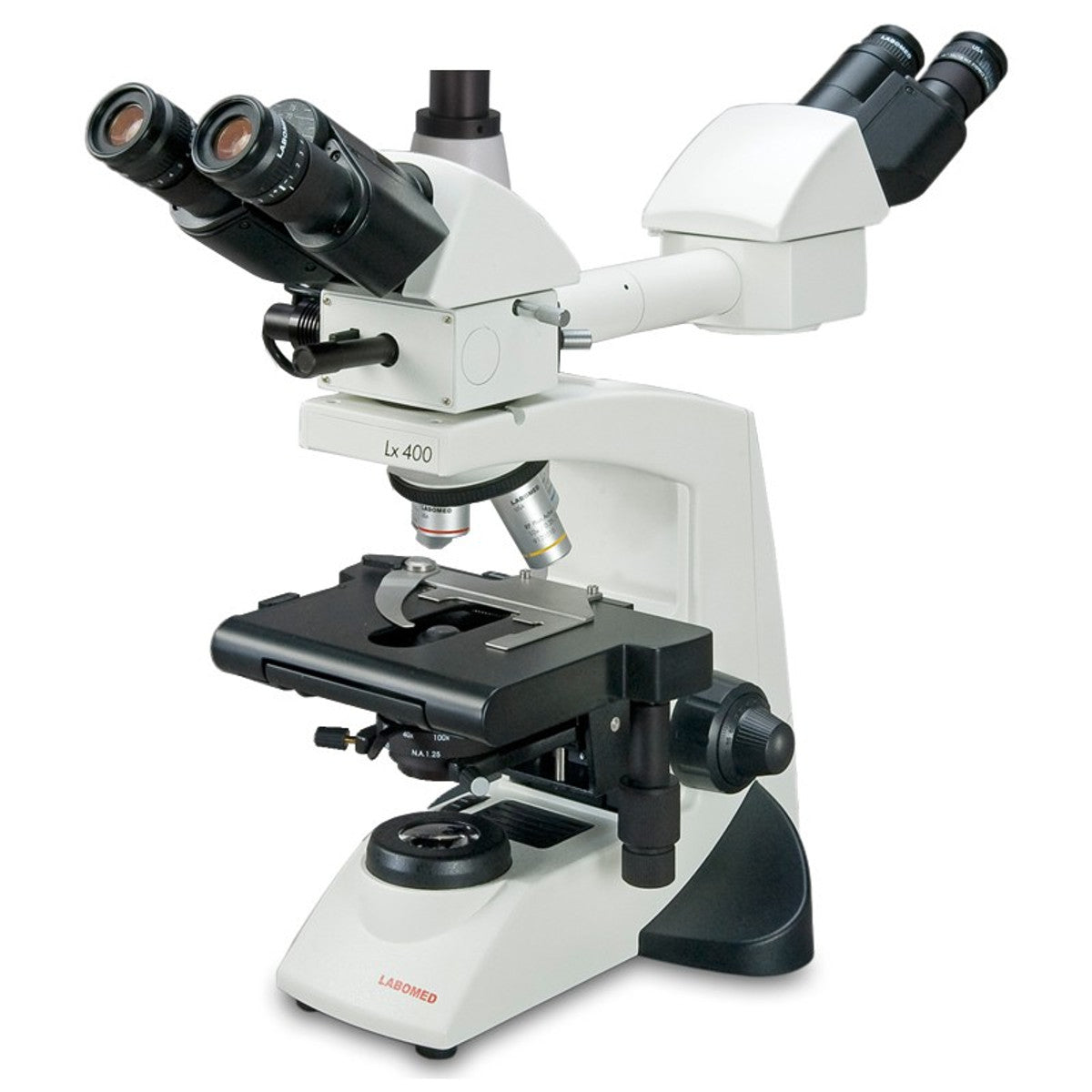

Labomed Lx400 Trinocular LED Dual View Teaching Microscope
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
From the most basic to the more complex laboratory applications, the Lx 400 stands strong as a truly modular system. With an Infinity corrected Plan Achromatic optical system, users will enjoy crisp images with excellent color fidelity and high accuracy in image rendition for a wide spectrum of specimens. Each configured below includes 4x, 10x, 40x, 100x objectives and LED variable illumination. There are a wide variety of accessories and options available. Comes with a manufactures five year warranty.
*** Dual view teaching attachment can be positioned for front to back or side to side use. ***
Product Specifications
| Stand | Single mold aluminum stand with hand rests for enhanced comfort and stability |
| Viewing Bodies | Siedentopf Trinocular head, 30° inclined, 360° rotatable, Interpupillary distance 48 - 75mm (main unit) Dual view bridge with Binocular Observation Head, WF 10x/20mm eyepieces, illuminated LED pointer and 100V-240V AC power adapter (secondary unit) |
| Eyepiece | Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal. Accepts 26mm reticle. |
| Nosepiece | Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip |
| Objectives | RP series infinity corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal |
| Mechanical stage | Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls. Hard coated surface for scratch resistance. Double specimen holder clip |
| Condenser | Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue daylight filter. Rack and pinion movements on stainless steel guides |
| Focusing | Coaxial coarse and fine focusing on ball drive system for smooth operation |
| Illumination | LED (built in rechargeable battery) illumination with variable illumination control. Up to 100,000 hours of LED life |
| Electrical | Universal input 100V - 240V AC, 50/60Hz. Built-in voltage stabilizer |
| Warranty | 5-year manufacturer warranty. |
| Certification | UL, CE, ISO 9001:2000 and ISO 13485:2003 |
