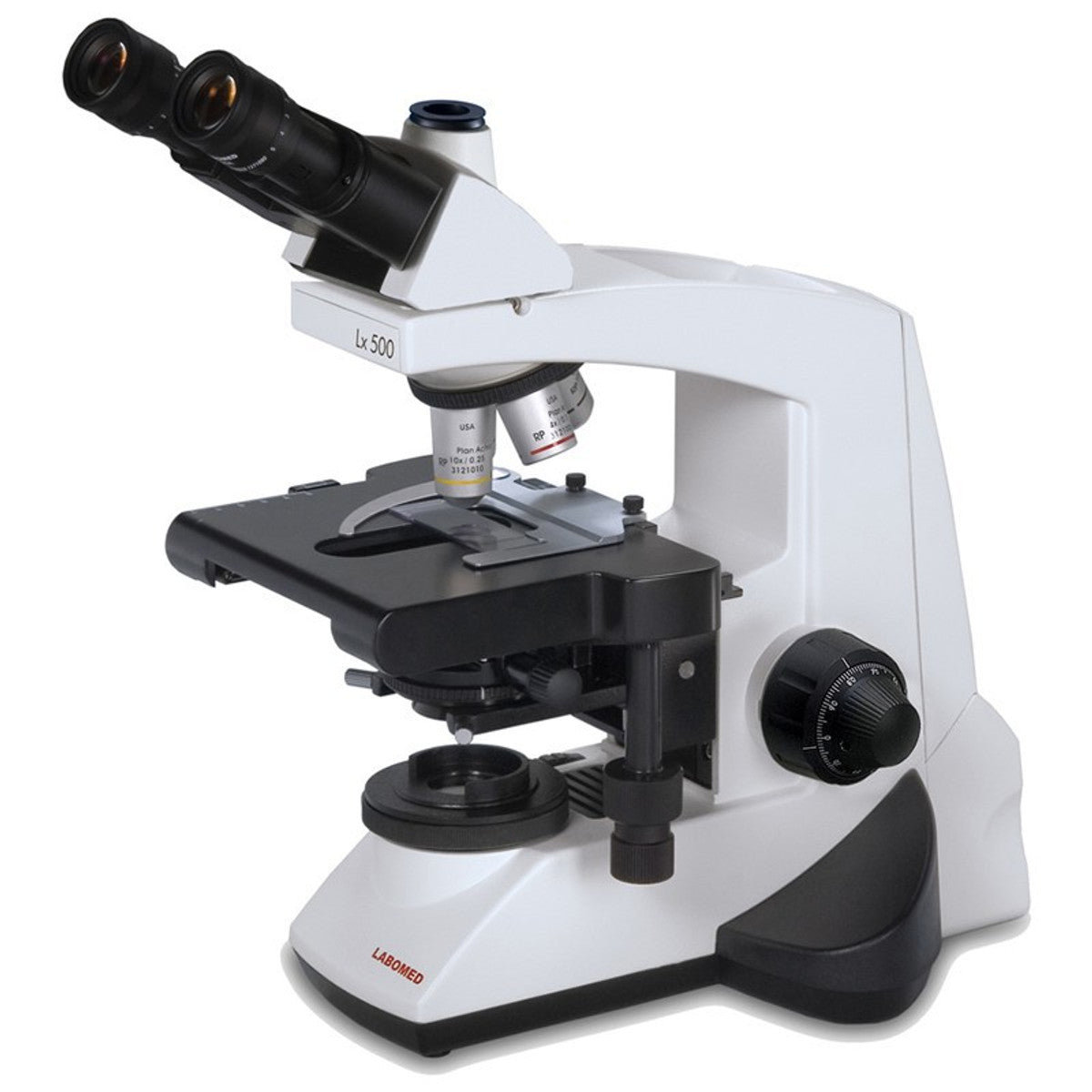

Labomed Lx500 Trinocular LED Cordless - Pathology Microscope
Regular price
$2,445.00
Couldn't load pickup availability
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
This LABOMED Lx 500 trinocular is configured with Plan 2.5x, 4x, 10x, 20x and 40x objectives, a scratch resistance ceramic rackless stage to ensure safety and maximization of your workstation space, LED illumination with a flip top condenser for use with low or high magnifications.
Affordable Mohs microscope
Product Specifications
| Stand | Single mold sturdy stand with anti rust materials. Extended base for better stability |
| Viewing Body | Siedentopf Trinocular 30° inclined, 360° rotatable, Inter-pupillary distance 47 - 75mm with height adjustment |
| Eyepiece | Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated |
| Nosepiece | Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip |
| Objectives | RP2 series Infinity Corrected DIN Plan Achromatic objectives 2.5x, 4x, 10x, 20x, 40x (spring loaded), antifungal coated |
| Mechanical stage | Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Y travel range 76mm x 50mm. Double specimen holder |
| Condenser | Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides |
| Focusing | Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation |
| Illumination | Koehler LED illumination with intensity, built-in rechargeable battery for cordless operation. LED lamp life is up to 100,000 hours |
| Electrical | Universal input 100V - 240V AC, 50/60 Hz. Built-in voltage stabilizer |
| Warranty | 5-year manufacturer warranty. |
| Certification | UL, CE, ISO 9001:2000 and ISO 13485:2003 |
